Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H6034NLCMC 2LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Power Line | 2 | - | - | - | 300mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6504NLCMC 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 180mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6504NLTCMC 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 180mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6505NLCMC 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 280mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6505NLTCMC 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 280mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6506NLCMC 2LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Power Line | 2 | - | - | - | 350mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6506NLTCMC 2LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Power Line | 2 | - | - | - | 350mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6507NLCMC 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 1.5Ohm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
ZJYS51R5-2PLT-01CMC 2A 2LN 100 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | 100 Ohms @ 100 MHz | - | 2A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
CMS4-11/3/8.9-4S2-ZSMD CMM choke |
0 |
|
Datasheet |
8-SMD, J-Lead | - | 2 | 23 Ohms @ 25 MHz | - | - | 600µOhm | - | - | - | - | - | - | - | - |
|

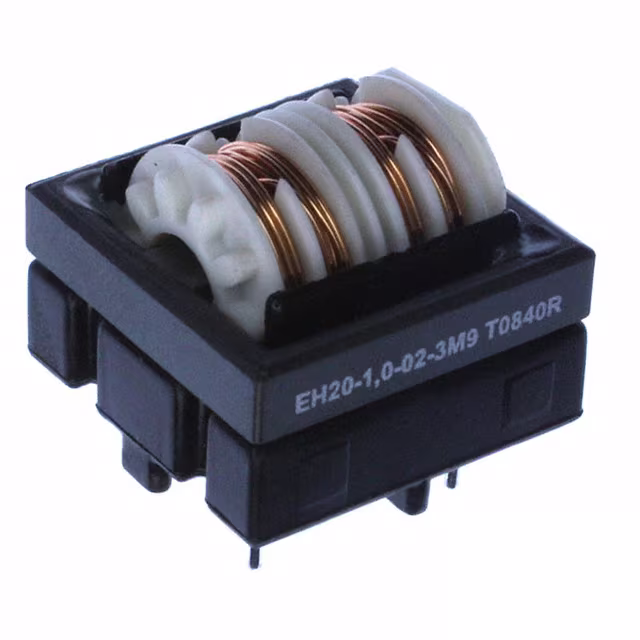

EH20-1.0-02-3M9CMC 3.9MH 1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 1A | 168mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

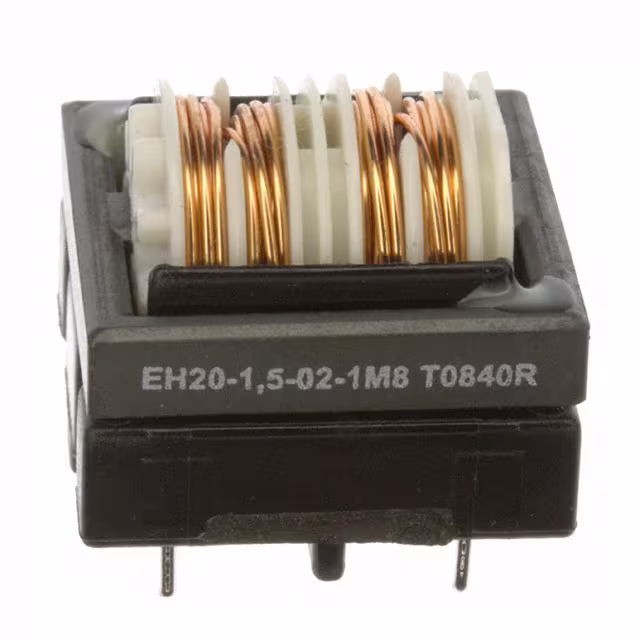

EH20-1.5-02-1M8CMC 1.8MH 1.5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 400 Hz | 1.5A | 72mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
BPPM00121164801X00CMC 8A 2LN 800 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 100 MHz | - | 8A | 8mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00121164102X00CMC 6A 2LN 1K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 6A | 14mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00121164800X00CMC 10A 2LN 230 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 230 Ohms @ 100 MHz | - | 10A | 2.2mOhm (Typ) | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00121164272X00CMC 1.5A 2LN 2.7K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.7 kOhms @ 100 MHz | - | 1.5A | 50mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00121164222X00CMC 1.8A 2LN 2.5K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.5 kOhms @ 100 MHz | - | 1.8A | 35mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00121164701X00CMC 8A 2LN 700 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 6mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82721K2282U030CMC 4UH 2.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 µH @ 100 kHz | 2.8A | 45mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
ZJYS51R5-2PBT-01CMC 2A 2LN 300 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | 300 Ohms @ 20 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
