Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGDU2-00007-PCOMMON MODE CHOKE |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ACMP-Q1260-701-TCMC 900MA 2LN 700OHM SMD AECQ200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 900mA | 5mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
H6031NLTCMC 2LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Power Line | 2 | - | - | - | 280mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6032NLTCMC 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 350mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6033NLTCMC 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 400mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6034NLTCMC 2LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Power Line | 2 | - | - | - | 300mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6036NLTCMC 2LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Power Line | 2 | - | - | - | 500mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
PLY17BS1023R0A2BCMC 3A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3A | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS4912R4A2BCMC 2.4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2.4A | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
B82791G2351N001CMC 22MH 350MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 350mA | 1.9Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SS21V-R040770CMC 77MH 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 77 mH @ 1 kHz | 400mA | 5.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
CPFC54-510CCMC 51UH 600MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 600mA | 160mOhm (Typ) | - | - | - | - | - | - | - | - |
|

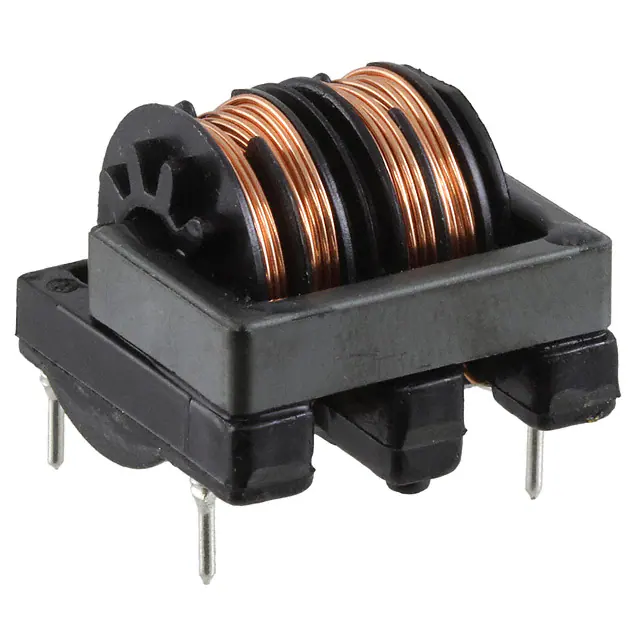

SS11H-10062-CHCMC 6.2MH 1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.2 mH @ 1 kHz | 1A | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

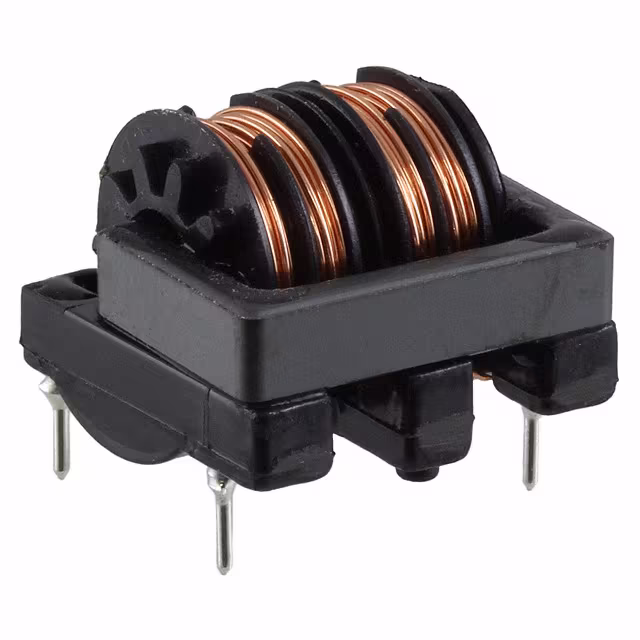

SS11H-R10093-CHCMC 9.3MH 1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9.3 mH @ 1 kHz | 1A | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82732W2222B030CMC 3.3MH 2.2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.2A | 110mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
LG01-0356N1LFTRCMC 35UH 2CH EXT TEMP 16P SMD T/ |
0 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 4 | - | - | - | 300mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
|
|
LG01-0856N1LFTRCMC 100UH 2CH EXT TEMP 16P SMD T |
0 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 4 | - | - | - | 550mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
|
7514-RCCMC 20MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 1A | 490mOhm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|

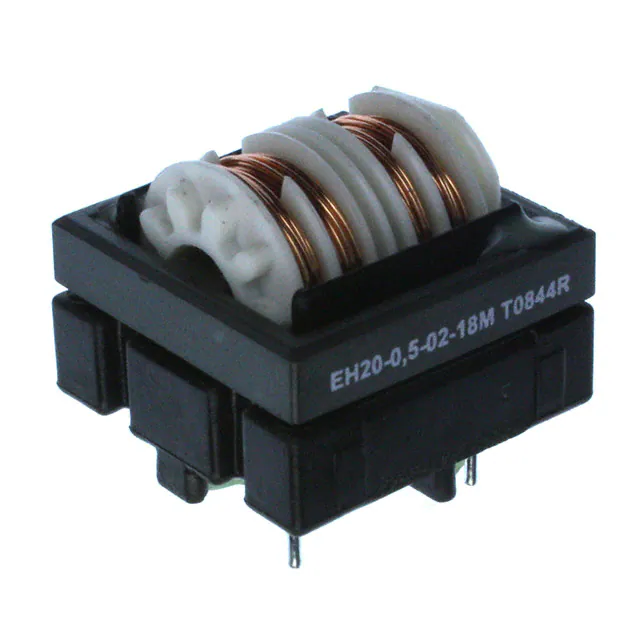

EH20-0.5-02-18MCMC 18MH 500MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 18 mH @ 400 Hz | 500mA | 725mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

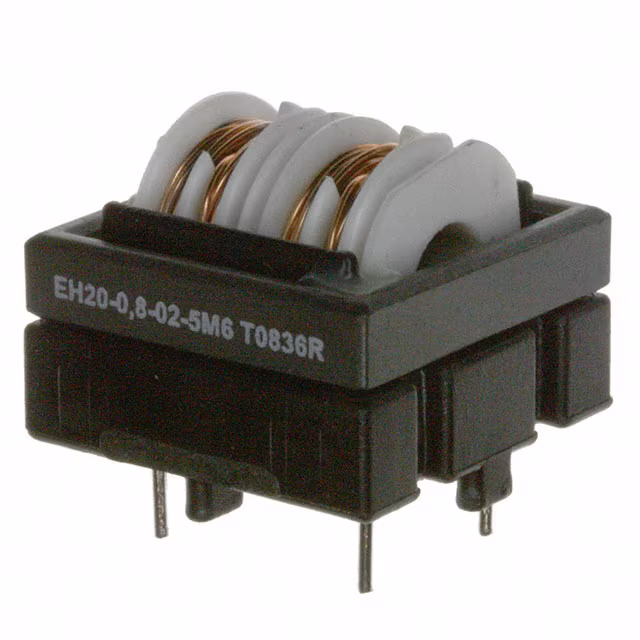

EH20-0.8-02-5M6CMC 5.6MH 800MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 400 Hz | 800mA | 245mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
