Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PMCE-0330CMC 1A 2LN TH |
2,645 |
|
Datasheet |
- | Power Line | 2 | - | 33 mH @ 1 kHz | 1A | 550mOhm | - | 3750V (3.75kV) | -40°C ~ 80°C | - | - | - | - | - |
|
|
CR7915-ALDCMC 2.6A 2LN 3.1 OHM SMD |
5,138 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 3.1 kOhms @ 4.9 MHz | 1.2 mH @ 10 kHz | 2.6A | 49.5mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
T60405R6166X206CMC 7.58MH 6A 2LN 8.5K OHM TH |
160 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 8.5 kOhms @ 100 kHz | 7.58 mH @ 100 kHz | 6A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
CMT3-4-RCMC 1.3MH 4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 10 kHz | 4A | 32mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT3-6-RCMC 530UH 6.5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 530 µH @ 10 kHz | 6.5A | 13mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM6149R-473CMC 47UH 2.5A 2LN SMD |
800 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 47 µH @ 10 kHz | 2.5A | 15mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
T60405S6123X308CMC 2.5MH 11A 2LN 2.6K OHM TH |
2,096 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 2 | 2.6 kOhms @ 100 kHz | 2.5 mH @ 100 kHz | 11A | - | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
T60405S6123X312CMC 3.7MH 12A 2LN 2.65K OHM TH |
107 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 2 | 2.65 kOhms @ 100 kHz | 3.7 mH @ 100 kHz | 12A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

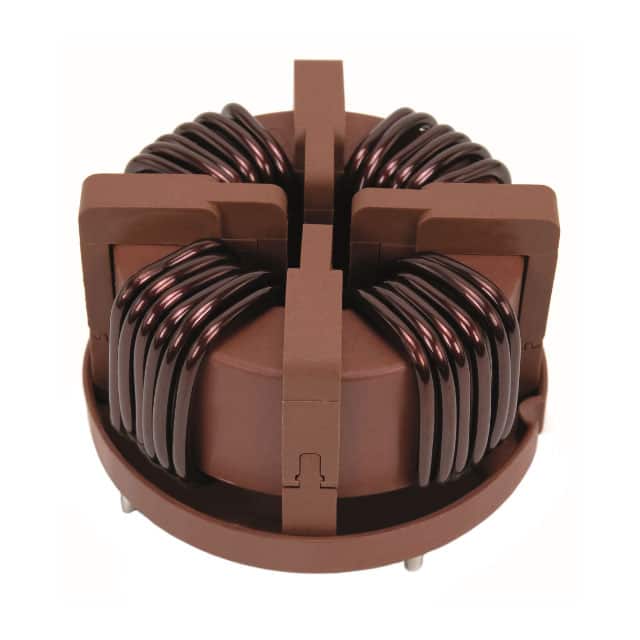

T60405S6123X401CMC 832UH 20A 4LN 860 OHM TH |
763 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | 860 Ohms @ 100 kHz | 832 µH @ 100 kHz | 20A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6128X5306128X530 |
216 |
|
- |
Vertical, 4 PC Pin | - | 2 | 1.4 kOhms @ 100 kHz | 1.4 mH @ 100 kHz | 30A | 2.7mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
CM6460R-106CMC 10MH 330MA 2LN SMD |
798 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 10 mH @ 10 kHz | 330mA | 900mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
T60405S6123X402CMC 720UH 30A 4LN 750 OHM TH |
456 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | 750 Ohms @ 100 kHz | 720 µH @ 100 kHz | 30A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405S6123X363CMC 490UH 63A 2LN 500 OHM TH |
123 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 2 | 500 Ohms @ 100 kHz | 490 µH @ 100 kHz | 63A | - | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
CM3216A-600CMC 60UH 200MA 2LN SMD |
1,800 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 60 µH @ 100 kHz | 200mA | 1.7Ohm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
PCMF1HDMI14SZNEXPERIA PCMF1HDM - DATA LINE FI |
40,250 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CMCC0805261ST-CTCMC 300MA 2LN 260 OHM SMD |
22,325 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
CMCC0805261MT-CTCMC 300MA 2LN 260 OHM SMD |
22,325 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
CMCC0805261NT-CTCMC 300MA 2LN 260 OHM SMD |
22,325 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
CMCC0805670MT-CTCMC 400MA 2LN 67 OHM SMD |
13,915 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
CMCC0805670ST-CTCMC 400MA 2LN 67 OHM SMD |
13,915 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
