Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDF8000LDCMC 5UH 100MA 8LN 630 OHM SMD |
1,415 |
|
Datasheet |
16-BQFN | Signal Line | 8 | 630 Ohms @ 37 MHz | 5 µH @ 1 MHz | 100mA | 250mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
PA4040.002NLCMC 1.5A 2LN TH |
1,666 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.5A | 120mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4040.004NLCMC 3.5A 2LN TH |
1,654 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.5A | 32mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4040.001NLCMC 1A 2LN TH |
1,613 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 245mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN12-300NMC 36.0UH 5.0A 0.0200 OHM TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 36 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SC-07-D060CMC 60UH 7A 2LN TH |
299 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 7A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-05-E75JKHCMC 8.1MH 5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8.1 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
PMCU-0100CMC 650MA 2LN TH |
6,765 |
|
Datasheet |
- | Power Line | 2 | - | 10 mH @ 1 kHz | 650mA | 750mOhm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
|
LGJ45B-220-2P-TL003CMC 200MA 2LN 500OHM SMD AECQ200 |
2,485 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 500 Ohms @ 10 MHz | - | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

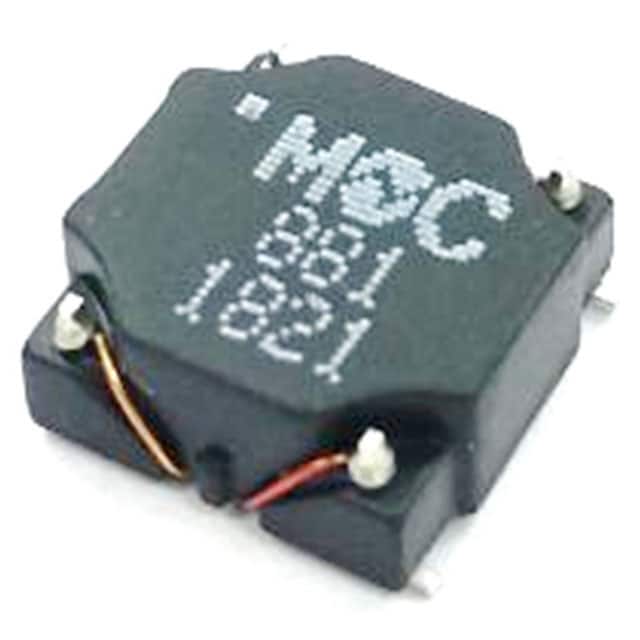

CM0903SG881NCMC 880UH 1.63A 2LN SMD |
590 |
|
Datasheet |
- | Signal Line | 2 | - | 880 µH @ 100 kHz | 1.63A | 110mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
ACMS-Q6527E-101-TCMC 100UH 350MA 2LN SMD AEC-Q200 |
6,000 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 350mA | 2Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PHBC10-0R8A0038VCMC 38UH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 38 µH @ 100 kHz | 3A | 31.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HHBC13-1R2A0081VCMC 81UH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 81 µH @ 100 kHz | 6A | 24.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PMCU-0056CMC 1A 2LN TH |
519 |
|
Datasheet |
- | Power Line | 2 | - | 5.6 mH @ 1 kHz | 1A | 400mOhm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
|
|
CDF10000LDCMC 5UH 100MA 10LN 520 OHM SMD |
4,221 |
|
Datasheet |
20-BQFN | Signal Line | 10 | 520 Ohms @ 43 MHz | 5 µH @ 1 MHz | 100mA | 250mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
PA3747.146NLCMC 1A 2LN TH |
1,190 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 207mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.305NLCMC 2.75A 2LN TH |
1,190 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.75A | 49.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.605NLCMC 1.55A 2LN TH |
1,190 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.55A | 132mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.705NLCMC 1.5A 2LN TH |
1,190 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.5A | 134mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.905NLCMC 1.45A 2LN TH |
1,190 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.45A | 154mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
