Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RL-9750-3-18,0CM CHOKE 18MH 317MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.3A | 317mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-3HL-3,7CM CHOKE 3.7MH 56MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.7 mH @ 10 kHz | 3A | 56mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-3-4,9CM CHOKE 4.9MH 94MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.4A | 94mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-3-7,5CM CHOKE 7.5MH 160MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.8A | 160mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-3HL-36,0CM CHOKE 36MH 500MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 36 mH @ 10 kHz | 1A | 500mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-3-7,0CM CHOKE 7MH 134MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | 134mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-3HM-3,3CM CHOKE 3.3MH 138MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.8A | 138mOhm (Typ) | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

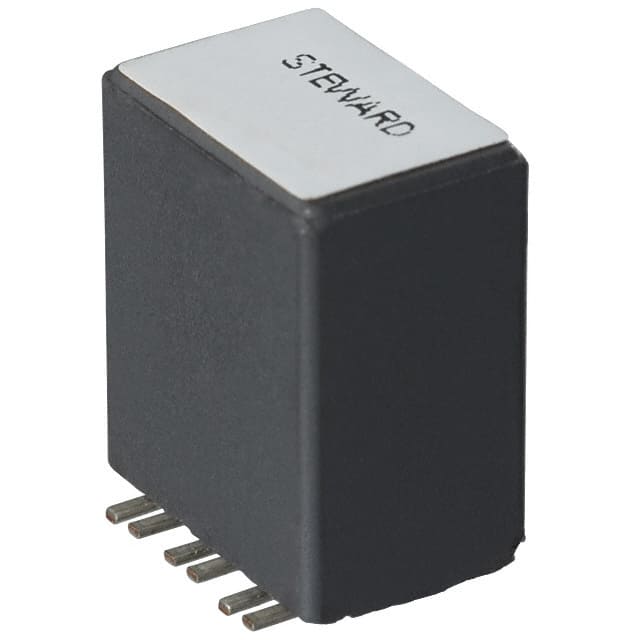

CM4732V301R-10CMC 8A 6LN 300 OHM SMD |
225 |
|
Datasheet |
Vertical, 12 Flat Lead | Power Line | 6 | 300 Ohms @ 100 MHz | - | 8A | 10mOhm | 30V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RL-9750-4HM-35,0CM CHOKE 35MH 620MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 10 kHz | 1A | 620mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
SN14-700NMC 450.0UH 5.0A 0.1200 OHM TH |
500 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
B82724B2152N020CMC 49MH 1.5A 2LN TH |
330 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 49 mH @ 10 kHz | 1.5A | 530mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PA3747.205NLCMC 4A 2LN TH |
400 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 4A | 25.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
DS1-175-0001CMC 500MA 2LN TH |
234 |
|
Datasheet |
Radial | - | 2 | - | - | 500mA | 700mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL006102VS-V0ECMC 1MH 5.5A 2LN TH |
356 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 1 mH @ 100 kHz | 5.5A | 16mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
RL-9750-5HMHL-33,0CM CHOKE 33MH 707MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 707mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-5HM-5,6CM CHOKE 5.6MH 155MOHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.8A | 155mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
HHBC14-1R2A0187VCMC 187UH 8A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 187 µH @ 100 kHz | 8A | 37.6mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-96178NLCMC 3.15A (TYP) 2LN TH |
230 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3.15A (Typ) | 40mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B2005NLCMC 9MH 100MA 2LN TH |
122 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 9 mH @ 100 kHz | 100mA | 600mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
DSO1-25-0002CMC 2A 2LN TH |
188 |
|
Datasheet |
Radial | - | 2 | - | - | 2A | 120mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
