Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APPM00121165102XY0CMC 6A 2LN 1K OHM SMD AEC-Q200 |
500 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 6A | 14mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00121165701XY0CMC 8A 2LN 700 OHM SMD AEC-Q200 |
465 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 6mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SN8D-500JBCMC 125UH 2A 2LN TH |
184 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 125 µH @ 100 kHz | 2A | 100mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
B82614R2202A030CMC 1MH 2A 2LN TH |
385 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 430mOhm (Typ) | - | 250V | - | - | - | - | - | - |
|
B82791H2901N020CMC 4.7MH 900MA 2LN TH |
453 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 900mA | 250mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CM3822R800R-10CMC 5A 6LN 80 OHM SMD |
1,998 |
|
Datasheet |
Vertical, 12 Flat Lead | Power Line | 6 | 80 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMS1-9-RCMC 62UH 1.9A 2LN SMD |
1,997 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 62 µH @ 100 kHz | 1.9A | 35mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
CM3822R201R-10CMC 5A 6LN 200 OHM SMD |
763 |
|
Datasheet |
Vertical, 12 Flat Lead | Power Line | 6 | 200 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RL-4400-3-52,7CM CHOKE 52.7MH 3.5OHM TH |
250 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 52.7 mH @ 10 kHz | 420mA | 3.5Ohm | 250V | - | -55°C ~ 130°C | - | - | - | - | - |
|
ST-204A3CMC, TROID, 1000OHM, 170MOHM |
200 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | 1 kOhms @ 7 MHz | - | 500mA | 170mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|

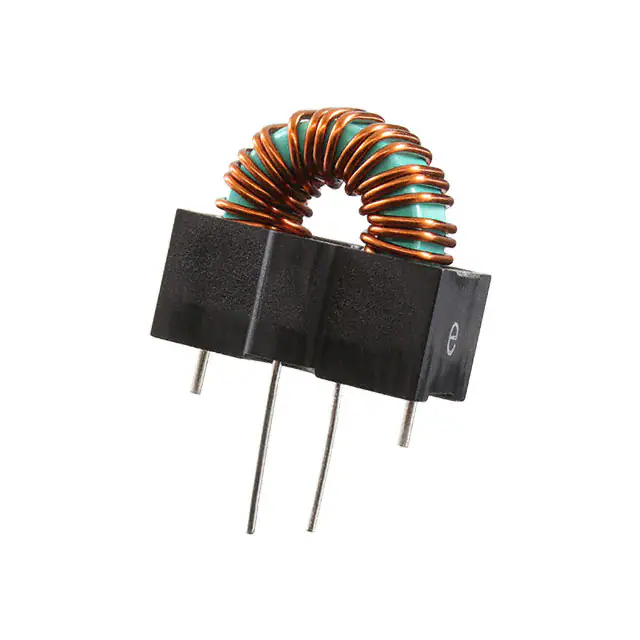

SN8S-400JBCMC 46UH 2A 2LN TH |
130 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 46 µH @ 100 kHz | 2A | 70mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
7353-V-RCCMC 5MH 500MA 2LN TH |
305 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 500mA | 1Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
B82791G0015A014CMC 38MH 100MA 2LN TH |
1,415 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 38 mH @ 10 kHz | 100mA | 5Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J2602N001CMC 1MH 6A 2LN TH |
394 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 23mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SC-02-200CMC 2MH 2A 2LN TH |
485 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 2A | 110mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82724J2252N020CMC 10MH 2.5A 2LN TH |
479 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.5A | 140mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
TCMCFNT101-RDCOMMON MODE CHOKE, 100 BASE-T1, |
500 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 350mA | 1.6Ohm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
B82614R2272A030CMC 500UH 2.7A 2LN TH |
395 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 2.7A | 230mOhm (Typ) | - | 250V | - | - | - | - | - | - |
|
SN5-450JBCMC 64UH 1A 2LN TH |
190 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 64 µH @ 100 kHz | 1A | 110mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
CM4732V201R-10CMC 8A 6LN 200 OHM SMD |
600 |
|
Datasheet |
Vertical, 12 Flat Lead | Power Line | 6 | 200 Ohms @ 100 MHz | - | 8A | 10mOhm | 30V | - | -40°C ~ 125°C | - | - | - | - | - |
