Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF25XV-130-1R5A012JHCMC 3.5MH 13A 2LN TH AEC-Q200 |
103 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 100 kHz | 13A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCN35SXV-110-1R4A015JHCMC 11.1UH 11A 2LN TH AEC-Q200 |
197 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 11.1 µH @ 100 kHz | 11A | 7.78mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCN35SXV-130-1R6A012JHCMC 7.6UH 13A 2LN TH AEC-Q200 |
195 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.6 µH @ 100 kHz | 13A | 4.85mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCN35SXV-150-1R7A010JHCMC 5.8UH 15A 2LN TH AEC-Q200 |
188 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.8 µH @ 100 kHz | 15A | 3.52mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCN35SXV-190-1R9A008JHCMC 3.7UH 19A 2LN TH AEC-Q200 |
175 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.7 µH @ 100 kHz | 19A | 2.36mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCN35XV-100-1R4A015JHCMC 13.9UH 10A 2LN TH AEC-Q200 |
159 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 13.9 µH @ 100 kHz | 10A | 11.1mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-190-1R9A012JVCMC 1.6MH 19A 2LN TH AEC-Q200 |
117 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 19A | 3.28mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-120-1R6A017JVCMC 3.2MH 12A 2LN TH AEC-Q200 |
103 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.2 mH @ 100 kHz | 12A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
CM6296R-654CMC 650UH 5.5A 2LN SMD |
207 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 650 µH @ 1 kHz | 5.5A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

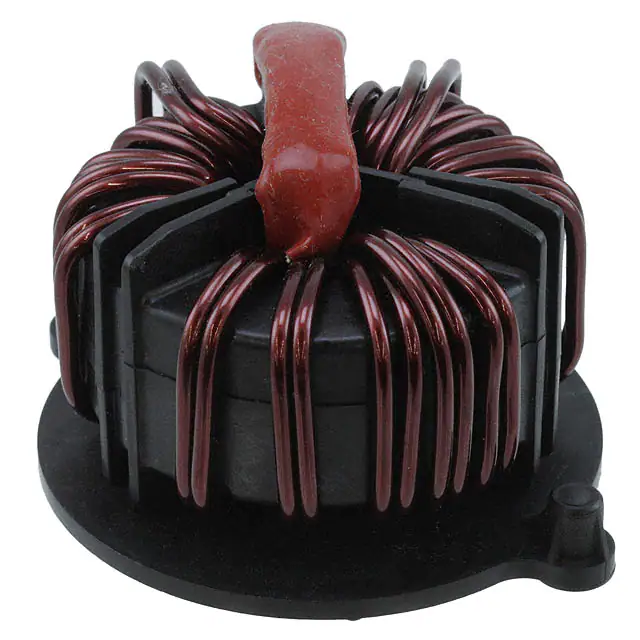

RB6132-36-0M4CMC 420UH 36A 3LN TH |
110 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 420 µH @ 400 Hz | 36A | 1.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

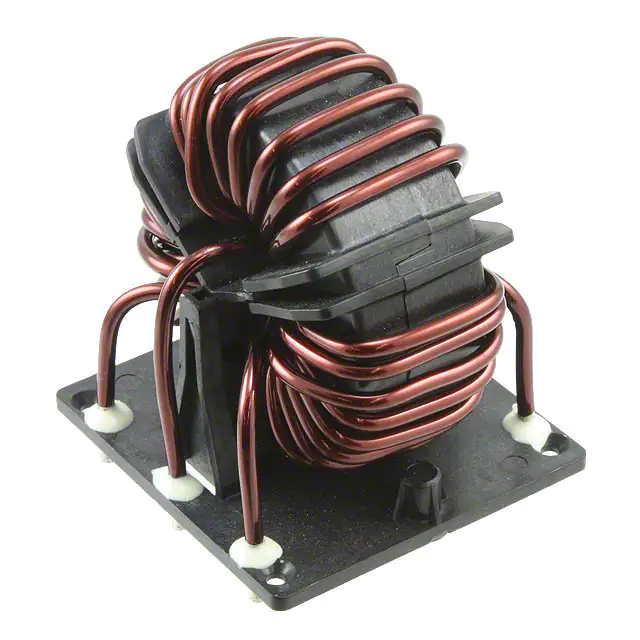

RB6532-36-0M4CMC 420UH 36A 3LN TH |
192 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 420 µH @ 400 Hz | 36A | 1.5mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

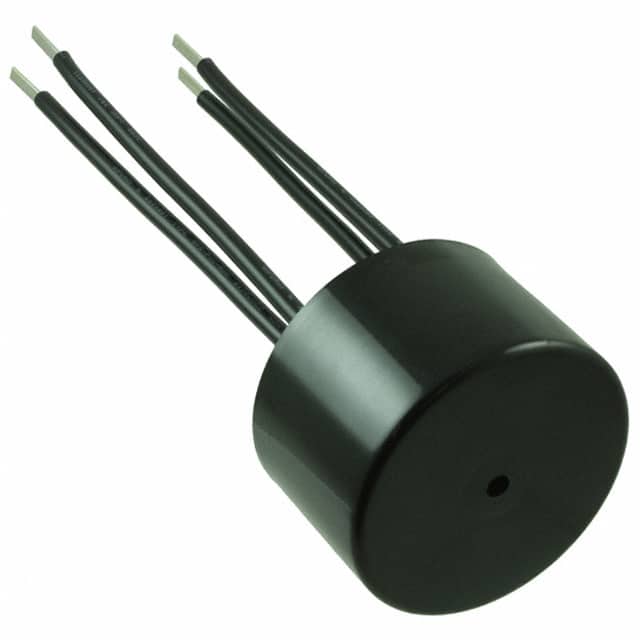

RD8127-36-3M0CMC 3MH 36A 2LN TH |
55 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 400 Hz | 36A (Typ) | 4.55mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
TCM06U5-050-2P-T201CMF USB4/3, 20GHZ, 0.9,-25~85 |
19,934 |
|
Datasheet |
0202 (0505 Metric), 4 PC Pad | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 900mOhm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM06UX-020-2P-T201CMF USB4/3, 20GHZ, 0.5,-25~85 |
19,934 |
|
Datasheet |
0202 (0505 Metric), 4 PC Pad | Signal Line | 2 | 20 Ohms @ 100 MHz | - | 100mA | 500mOhm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM06U2-150-2P-T201CMF USB4/3, 13GHZ, 2.5,-25~85 |
18,634 |
|
Datasheet |
0202 (0505 Metric), 4 PC Pad | Signal Line | 2 | 150 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
EXC-14CP221UCMC 200MA 2LN 220 OHM SMD |
10,000 |
|
Datasheet |
0302 (0806 Metric) | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 200mA | 700mOhm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
BWCU00121008600Y03CMC 250MA 2LN 60 OHM SMD |
15,590 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 60 Ohms @ 100 MHz | - | 250mA | 400mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
EXC-14CE650UCMC 130MA 2LN 65 OHM SMD |
10,000 |
|
Datasheet |
0302 (0805 Metric) | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 130mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
EXC-14CE121XCMC 100MA 2LN 120 OHM SMD |
10,000 |
|
Datasheet |
0302 (0805 Metric) | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 100mA | 3.8Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
EXC-14CE900XCMC 130MA 2LN 90 OHM SMD |
10,000 |
|
Datasheet |
0302 (0805 Metric) | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 130mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
