Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMA-A0207BTNT100RRES 100 OHM 0.1% 1W MELF 0207 |
22,066 |
|
Datasheet |
SMA-A | MELF, 0207 | Tape & Reel (TR) | Active | 100 Ohms | ±0.1% | 1W | Metal Film | Automotive AEC-Q200 | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0207 | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | - | 2 | - |
|
SMA-A0207BTNT4K7RES 4.7K OHM 0.1% 1W MELF 0207 |
5,815 |
|
Datasheet |
SMA-A | MELF, 0207 | Tape & Reel (TR) | Active | 4.7 kOhms | ±0.1% | 1W | Metal Film | Automotive AEC-Q200 | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0207 | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | - | 2 | - |
|
SMA-A0207BTNT2K7RES 2.7K OHM 0.1% 1W MELF 0207 |
4,047 |
|
Datasheet |
SMA-A | MELF, 0207 | Tape & Reel (TR) | Active | 2.7 kOhms | ±0.1% | 1W | Metal Film | Automotive AEC-Q200 | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0207 | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | - | 2 | - |
|
PSR100KTQFD0L30RES 0.0003 OHM 1% 8W 2512 |
6,801 |
|
Datasheet |
PSR | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 0.3 mOhms | ±1% | 8W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +150ppm/°C | -65°C ~ 175°C | AEC-Q200 | 2512 | 0.250" L x 0.120" W (6.35mm x 3.05mm) | 0.063" (1.60mm) | 2 | - |
|
PNM1206E5002BST5RES SMD 50K OHM 0.1% 0.4W 1206 |
13,323 |
|
Datasheet |
PNM | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 50 kOhms | ±0.1% | 0.4W, 2/5W | Thin Film | Anti-Sulfur, Moisture Resistant, Non-Inductive, Non-Magnetic | ±25ppm/°C | -55°C ~ 155°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.84mm) | 2 | - |
|
PU3921FKNP90U5LRES SMD 500 UOHM 1% 9W 3921 |
1,491 |
|
Datasheet |
PU | Nonstandard | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 9W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±175ppm/°C | -65°C ~ 170°C | AEC-Q200 | - | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.064" (1.62mm) | 2 | - |
|
PCAN0603E49R9BST5RES SMD 49.9 OHM 0.1% 1/2W 0603 |
11,732 |
|
Datasheet |
PCAN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 49.9 Ohms | ±0.1% | 0.5W, 1/2W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0603 | 0.064" L x 0.032" W (1.63mm x 0.81mm) | 0.018" (0.46mm) | 2 | - |
|
|
PCAN0603E1001BST5RES SMD 1K OHM 0.1% 1/2W 0603 |
3,404 |
|
Datasheet |
PCAN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±0.1% | 0.5W, 1/2W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0603 | 0.064" L x 0.032" W (1.63mm x 0.81mm) | 0.018" (0.46mm) | 2 | - |
|
|
PCAN0603K2R00FST5RES SMD 2 OHM 1% 1/2W 0603 |
3,285 |
|
Datasheet |
PCAN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 2 Ohms | ±1% | 0.5W, 1/2W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -55°C ~ 155°C | - | 0603 | 0.064" L x 0.032" W (1.63mm x 0.81mm) | 0.018" (0.46mm) | 2 | - |
|
CSS2H-5930K-1L00FRES 0.001 OHM 1% 9W 5930 |
4,014 |
|
Datasheet |
CSS2H-5930 | Nonstandard | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 9W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 5930 | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.064" (1.62mm) | 2 | - |
|
|
PCAN0805K2R00FST5RES SMD 2 OHM 1% 1W 0805 |
8,275 |
|
Datasheet |
PCAN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2 Ohms | ±1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -55°C ~ 155°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.018" (0.46mm) | 2 | - |
|
|
PCAN0805E1002BST5RES SMD 10K OHM 0.1% 1W 0805 |
3,452 |
|
Datasheet |
PCAN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±0.1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.018" (0.46mm) | 2 | - |
|
|
PCAN0805K4R70FST5RES SMD 4.7 OHM 1% 1W 0805 |
1,465 |
|
Datasheet |
PCAN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 4.7 Ohms | ±1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -55°C ~ 155°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.018" (0.46mm) | 2 | - |
|
35501R0FTRES 3550 1R0 1% |
2,995 |
|
Datasheet |
3550, CGS | Nonstandard | Tape & Reel (TR) | Active | 1 Ohms | ±1% | 5W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | - | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.047" (1.20mm) | 2 | - |
|
|
35503R0FTRES 3550 3R0 1% |
1,478 |
|
Datasheet |
3550, CGS | Nonstandard | Tape & Reel (TR) | Active | 3 Ohms | ±1% | 5W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | - | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.047" (1.20mm) | 2 | - |
|
|
PSR400ITQFL3L00RES 0.003 OHM 1% 5W 3920 |
11,556 |
|
Datasheet |
PSR | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 3 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +75ppm/°C | -65°C ~ 175°C | AEC-Q200 | 3921 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.041" (1.05mm) | 2 | - |
|

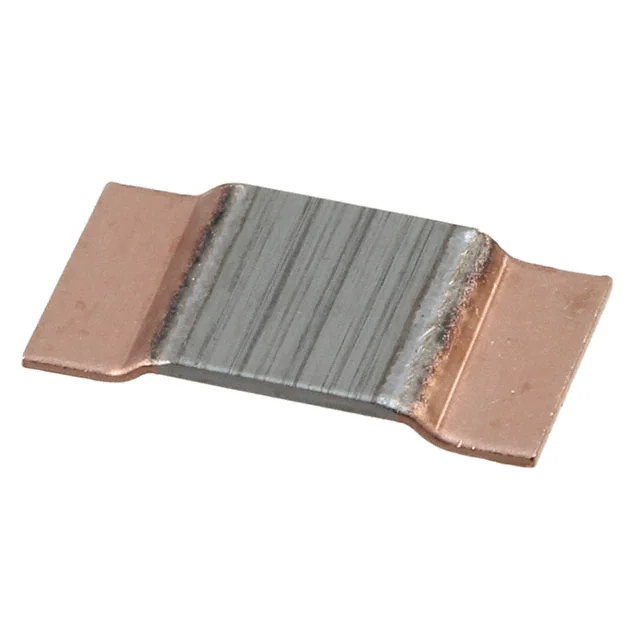

PSR400ITQFF0L50RES 0.0005 OHM 1% 10W 3920 |
5,977 |
|
Datasheet |
PSR | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 10W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +100ppm/°C | -65°C ~ 175°C | AEC-Q200 | 3921 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.057" (1.45mm) | 2 | - |
|
|
PSR400ITQFH1L00RES 0.001 OHM 1% 8W 3920 |
4,268 |
|
Datasheet |
PSR | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 8W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +75ppm/°C | -65°C ~ 175°C | AEC-Q200 | 3921 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.041" (1.05mm) | 2 | - |
|
|
PSR400ITQFJ2L00RES 0.002 OHM 1% 6W 3920 |
2,458 |
|
Datasheet |
PSR | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 6W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +75ppm/°C | -65°C ~ 175°C | AEC-Q200 | 3921 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.049" (1.25mm) | 2 | - |
|
|
35502R0FTRES 3550 2R0 1% |
2,017 |
|
Datasheet |
3550, CGS | Nonstandard | Tape & Reel (TR) | Active | 2 Ohms | ±1% | 5W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | - | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.047" (1.20mm) | 2 | - |
Chip Resistor - Surface Mount Electronic Components
Frequently Asked Questions
Q1: What products are included in Chip Resistor - Surface Mount?
This category includes related Chip Resistor - Surface Mount subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chip Resistor - Surface Mount components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chip Resistor - Surface Mount and other electronic components.
