Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTR100LJZPFU10L0RES SMD 0.01 OHM 1% 4W 2512 WIDE |
2,589 |
|
Datasheet |
LTR | Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 4W | Thick Film | Automotive AEC-Q200, Current Sense | 0/ +300ppm/°C | -65°C ~ 155°C | AEC-Q200 | 1225 | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | 2 | - |
|
3503G2B1K0FTDRES 1K OHM 1% 2W 1206 |
4,558 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B150RFTDRES 150 OHM 1% 2W 1206 |
3,171 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 150 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B30K1FTDRES 30.1K OHM 1% 2W 1206 |
2,176 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 30.1 kOhms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B4K99FTDRES 4.99K OHM 1% 2W 1206 |
2,104 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 4.99 kOhms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B10KFTDRES 10K OHM 1% 2W 1206 |
1,604 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B200RFTDRES 200 OHM 1% 2W 1206 |
692 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 200 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B51R1FTDRES 51.1 OHM 1% 2W 1206 |
293 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 51.1 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
RLP73N3AR075FTDFRES 0.075 OHM 1% 2W 2512 |
10,323 |
|
Datasheet |
RL73, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 75 mOhms | ±1% | 2W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.124" W (6.35mm x 3.15mm) | 0.028" (0.70mm) | 2 | - |
|
|
RLP73N3AR091FTDFRES 0.091 OHM 1% 2W 2512 |
5,886 |
|
Datasheet |
RL73, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 91 mOhms | ±1% | 2W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.124" W (6.35mm x 3.15mm) | 0.028" (0.70mm) | 2 | - |
|
|
RLP73N3AR062FTDFRES 0.062 OHM 1% 2W 2512 |
5,334 |
|
Datasheet |
RL73, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 62 mOhms | ±1% | 2W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.124" W (6.35mm x 3.15mm) | 0.028" (0.70mm) | 2 | - |
|
CSS2H-3920R-1L00FERES 0.001 OHM 1% 8W 3920 |
4,828 |
|
Datasheet |
CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 8W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.045" (1.15mm) | 2 | - |
|
|
RLP73N3AR082FTDFRES 0.082 OHM 1% 2W 2512 |
2,643 |
|
Datasheet |
RL73, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 82 mOhms | ±1% | 2W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.124" W (6.35mm x 3.15mm) | 0.028" (0.70mm) | 2 | - |
|
|
RLP73N3AR056FTDFRES 0.056 OHM 1% 2W 2512 |
1,955 |
|
Datasheet |
RL73, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 56 mOhms | ±1% | 2W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.124" W (6.35mm x 3.15mm) | 0.028" (0.70mm) | 2 | - |
|

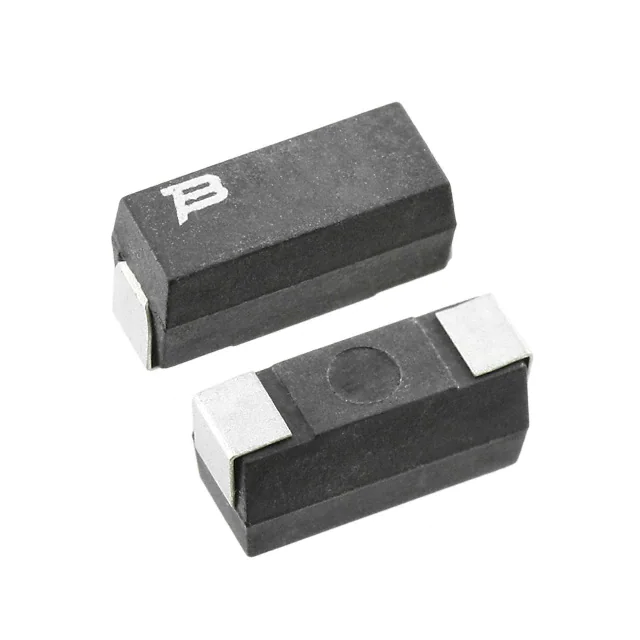

PWR4318W10R0JERES SMD 10 OHM 5% 2W 4318 |
4,178 |
|
Datasheet |
PWR4318 | 4318 J-Lead | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 2W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 4318 | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.203" (5.16mm) | 2 | - |
|
|
CSS2H-3920R-L200FERES SMD 200 UOHM 1% 12W 3920 |
1,449 |
|
Datasheet |
CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 0.2 mOhms | ±1% | 12W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.107" (2.73mm) | 2 | - |
|
|
CSS2H-3920K-5L00FCURRENTSENSESHUNT 3920 R005 1% 3 |
11,821 |
|
Datasheet |
CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.039" (1.00mm) | 2 | - |
|
|
PWR2010W5R00JERES SMD 5 OHM 5% 1/2W 2010 |
54,564 |
|
Datasheet |
PWR2010 | 2010 J-Lead | Tape & Reel (TR) | Active | 5 Ohms | ±5% | 0.5W, 1/2W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 2010 | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.148" (3.76mm) | 2 | - |
|
PWR5322W24R0JERES SMD 24 OHM 5% 3W 5322 |
6,597 |
|
Datasheet |
PWR5322 | 5322 J-Lead | Tape & Reel (TR) | Active | 24 Ohms | ±5% | 3W | Wirewound | Current Sense, Pulse Withstanding | ±20ppm/°C | -55°C ~ 155°C | - | 5322 | 0.532" L x 0.217" W (13.50mm x 5.50mm) | 0.243" (6.16mm) | 2 | - |
, J-Lead.JPG)
|
SMF51K0FTRES SMD 1K OHM 1% 5W 5329 |
280 |
|
Datasheet |
SM, CGS | 5329 (13573 Metric), J-Lead | Tape & Reel (TR) | Active | 1 kOhms | ±1% | 5W | Metal Film | Flame Retardant Coating, Safety | ±100ppm/°C | -55°C ~ 200°C | - | SMD | 0.531" L x 0.287" W (13.50mm x 7.30mm) | 0.280" (7.10mm) | 2 | - |
Chip Resistor - Surface Mount Electronic Components
Frequently Asked Questions
Q1: What products are included in Chip Resistor - Surface Mount?
This category includes related Chip Resistor - Surface Mount subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chip Resistor - Surface Mount components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chip Resistor - Surface Mount and other electronic components.
