Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THS75100RJRES CHAS MNT 100 OHM 5% 75W |
32 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 100 Ohms | ±5% | 75W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.929" L x 1.870" W (49.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
THS75680RJRES CHAS MNT 680 OHM 5% 75W |
40 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 680 Ohms | ±5% | 75W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.929" L x 1.870" W (49.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
HSC75100RJRES CHAS MNT 100 OHMS 5% 75W |
89 |
|
Datasheet |
HS | Axial, Box | Box | Active | 100 Ohms | ±5% | 75W | Wirewound | ±30ppm/°C | - | - | Aluminum | Flanges | 1.929" L x 1.870" W (49.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC755K7JRES CHAS MNT 5.7K OHM 5% 75W |
38 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 5.7 kOhms | ±5% | 75W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.929" L x 1.870" W (49.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC75220RJRES CHAS MNT 220 OHM 5% 75W |
36 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 220 Ohms | ±5% | 75W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.929" L x 1.870" W (49.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC75260RJRES CHAS MNT 260 OHM 5% 75W |
36 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 260 Ohms | ±5% | 75W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.929" L x 1.870" W (49.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC7522RJRES CHAS MNT 22 OHM 5% 75W |
10 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 22 Ohms | ±5% | 75W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.929" L x 1.870" W (49.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC753K3JRES CHAS MNT 3.3K OHM 5% 75W |
10 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 3.3 kOhms | ±5% | 75W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.929" L x 1.870" W (49.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
TE60B3R9JRES CHAS MNT 3.9 OHM 5% 60W |
20 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 3.9 Ohms | ±5% | 60W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 4.016" L (28.00mm x 102.00mm) | - | Solder Lugs | - | - | - |
|
TE60B560RJRES CHAS MNT 560 OHM 5% 60W |
6 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 560 Ohms | ±5% | 60W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 4.016" L (28.00mm x 102.00mm) | - | Solder Lugs | - | - | - |
|

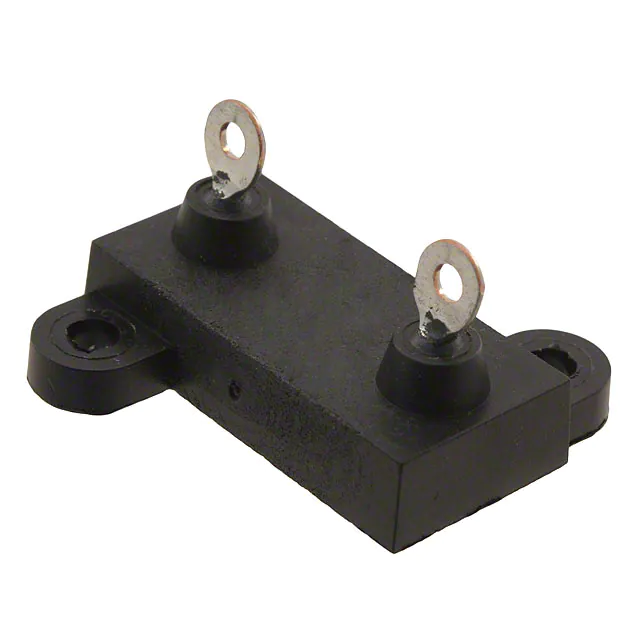

RCH25S47R00JS06RES CHAS MNT 47 OHM 5% 25W |
61 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bulk | Active | 47 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S10001JS06RES CHAS MNT 10K OHM 5% 25W |
50 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bulk | Active | 10 kOhms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S100R0JS06RES CHAS MNT 100 OHM 5% 25W |
50 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bulk | Active | 100 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S10R00JS06RES CHAS MNT 10 OHM 5% 25W |
22 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bulk | Active | 10 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
TE50BR47JTE 50W R47 5% BRACKET |
16 |
|
Datasheet |
TE | Radial, Tubular | Box | Active | 470 mOhms | ±5% | 50W | Wirewound | ±400ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | - | Brackets | 1.102" Dia x 4.016" L (28.00mm x 102.00mm) | 2.520" (64.00mm) | Solder Lugs | - | - | - |
|
|
RCH25S22R00JS06SFERNICE FIXED RESISTORS |
47 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 22 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 0.551" W (28.00mm x 14.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S33R00JS06SFERNICE FIXED RESISTORS |
36 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 33 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 0.551" W (28.00mm x 14.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S4R700JS06SFERNICE FIXED RESISTORS |
50 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 4.7 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 0.551" W (28.00mm x 14.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
TE80B56RJRES CHAS MNT 56 OHM 5% 80W |
20 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 56 Ohms | ±5% | 80W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 5.984" L (28.00mm x 152.00mm) | - | Solder Lugs | - | - | - |
|
TE80B150RJRES CHAS MNT 150 OHM 5% 80W |
19 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 150 Ohms | ±5% | 80W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 5.984" L (28.00mm x 152.00mm) | - | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
