Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCF80J680RJHCF80 75W 680R 5% LEAD |
180 |
|
Datasheet |
HCF | Module | Box | Active | 680 Ohms | ±5% | 75W | Wirewound | ±200ppm/°C | 200°C | - | Aluminum | Screw Holes | 3.150" L x 2.992" W (80.00mm x 76.00mm) | 0.591" (15.00mm) | - | - | - | - |
|
BDS2A1004R7KRES CHAS MNT 4.7 OHM 10% 100W |
76 |
|
Datasheet |
BDS, CGS | SOT-227-2 | Tray | Active | 4.7 Ohms | ±10% | 100W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | RF, High Frequency | Epoxy Coated | Flanges | 1.488" L x 1.000" W (37.80mm x 25.40mm) | 0.827" (21.00mm) | M4 Threaded | - | - | - |
|
LPS0300H4R70JBRES CHAS MNT 4.7 OHM 5% 300W |
64 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 4.7 Ohms | ±5% | 300W | Thick Film | ±300ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
HSC2503R3JRES CHAS MNT 3.3 OHM 5% 250W |
24 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 3.3 Ohms | ±5% | 250W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 4.291" L x 2.874" W (109.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC250470RJRES CHAS MNT 470 OHM 5% 250W |
0 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 470 Ohms | ±5% | 250W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 4.291" L x 2.874" W (109.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC25027RJRES CHAS MNT 27 OHM 5% 250W |
32 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 27 Ohms | ±5% | 250W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 4.291" L x 2.874" W (109.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
HSC3006R8JRES CHAS MNT 6.8 OHM 5% 300W |
54 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 6.8 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC3003R9JRES CHAS MNT 3.9 OHM 5% 300W |
40 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 3.9 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC30075RJRES CHAS MNT 75 OHM 5% 300W |
39 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 75 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
TE500B1R2JRES CHAS MNT 1.2 OHM 5% 500W |
34 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.2 Ohms | ±5% | 500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.969" Dia x 12.441" L (50.00mm x 316.00mm) | - | Solder Lugs | - | - | - |
|
CJP500J100RJCJP 500W 100R 5% LEAD |
104 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 100 Ohms | ±5% | 500W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 13.189" L x 2.362" W (335.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
FVT20020E100R0JERES CHAS MNT 100 OHM 5% 225W |
199 |
|
Datasheet |
FVT | Radial, Tubular | Bulk | Active | 100 Ohms | ±5% | 225W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | - | Solder Lugs | - | - | - |
|
HCF110J68RJHCF110 100W 68R 5% LEAD |
75 |
|
Datasheet |
HCF | Module | Box | Active | 68 Ohms | ±5% | 100W | Wirewound | ±200ppm/°C | 260°C | - | Aluminum | Screw Holes | 4.331" L x 2.992" W (110.00mm x 76.00mm) | 0.591" (15.00mm) | - | - | - | - |
|
TJT500470RJRES CHAS MNT 470 OHM 5% 500W |
60 |
|
Datasheet |
TJT | Rectangular Case | Bulk | Active | 470 Ohms | ±5% | 500W | Wirewound | ±260ppm/°C | -25°C ~ 250°C | - | Aluminum | Screw Holes | 12.99" L x 3.15" W (330.00mm x 80.00mm) | 0.394" (10.00mm) | Wire Leads | - | - | - |
|
|
TJT500100RJRES CHAS MNT 100 OHM 5% 500W |
36 |
|
Datasheet |
TJT | Rectangular Case | Bulk | Active | 100 Ohms | ±5% | 500W | Wirewound | ±260ppm/°C | -25°C ~ 250°C | - | Aluminum | Screw Holes | 12.99" L x 3.15" W (330.00mm x 80.00mm) | 0.394" (10.00mm) | Wire Leads | - | - | - |
|
|
TJT50047RJRES CHAS MNT 47 OHM 5% 500W |
32 |
|
Datasheet |
TJT | Rectangular Case | Bulk | Active | 47 Ohms | ±5% | 500W | Wirewound | ±260ppm/°C | -25°C ~ 250°C | - | Aluminum | Screw Holes | 12.99" L x 3.15" W (330.00mm x 80.00mm) | 0.394" (10.00mm) | Wire Leads | - | - | - |
|
|
TJT50015RJRES CHAS MNT 15 OHM 5% 500W |
26 |
|
Datasheet |
TJT | Rectangular Case | Bulk | Active | 15 Ohms | ±5% | 500W | Wirewound | ±260ppm/°C | -25°C ~ 250°C | - | Aluminum | Screw Holes | 12.99" L x 3.15" W (330.00mm x 80.00mm) | 0.394" (10.00mm) | Wire Leads | - | - | - |
|
HRHAFN1000KBHRHA FN 100U 10% BO12 |
26 |
|
Datasheet |
HRHA | Box | Bulk | Active | 100 Ohms | ±10% | 90W | Wirewound | ±100ppm/°C | -55°C ~ 250°C | - | - | Flanges | 2.756" L x 2.362" W (70.00mm x 60.00mm) | 0.646" (16.40mm) | Quick Connects, 0.250" (6.35mm) | - | Automotive | AEC-Q200 |
|

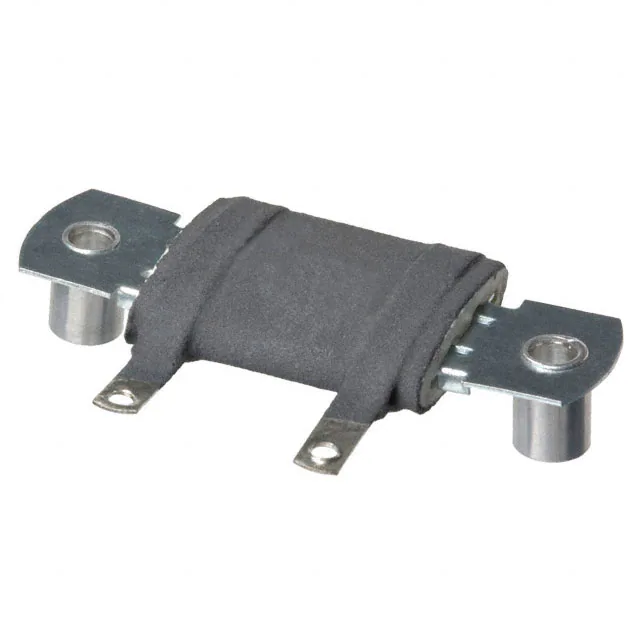

FSOT5509E25R00KERES CHAS MNT 25 OHM 10% 55W |
529 |
|
Datasheet |
FSOT | Radial, Flat Oval | Bulk | Active | 25 Ohms | ±10% | 55W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 3.500" L x 1.187" W (88.90mm x 30.16mm) | 0.594" (15.08mm) | Solder Lugs | - | - | - |
|
|
FSOT5509E1K000KERES CHAS MNT 1K OHM 10% 55W |
471 |
|
Datasheet |
FSOT | Radial, Flat Oval | Bulk | Active | 1 kOhms | ±10% | 55W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 3.500" L x 1.187" W (88.90mm x 30.16mm) | 0.594" (15.08mm) | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
