Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQBW30220RJFASTONRES CHAS MNT 220 OHM 5% 30W |
497 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 220 Ohms | ±5% | 30W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 2.953" L x 0.748" W (75.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW3068RJFASTONRES CHAS MNT 68 OHM 5% 30W |
341 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 68 Ohms | ±5% | 30W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 2.953" L x 0.748" W (75.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW303R3JFASTONRES CHAS MNT 3.3 OHM 5% 30W |
272 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 3.3 Ohms | ±5% | 30W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 2.953" L x 0.748" W (75.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|

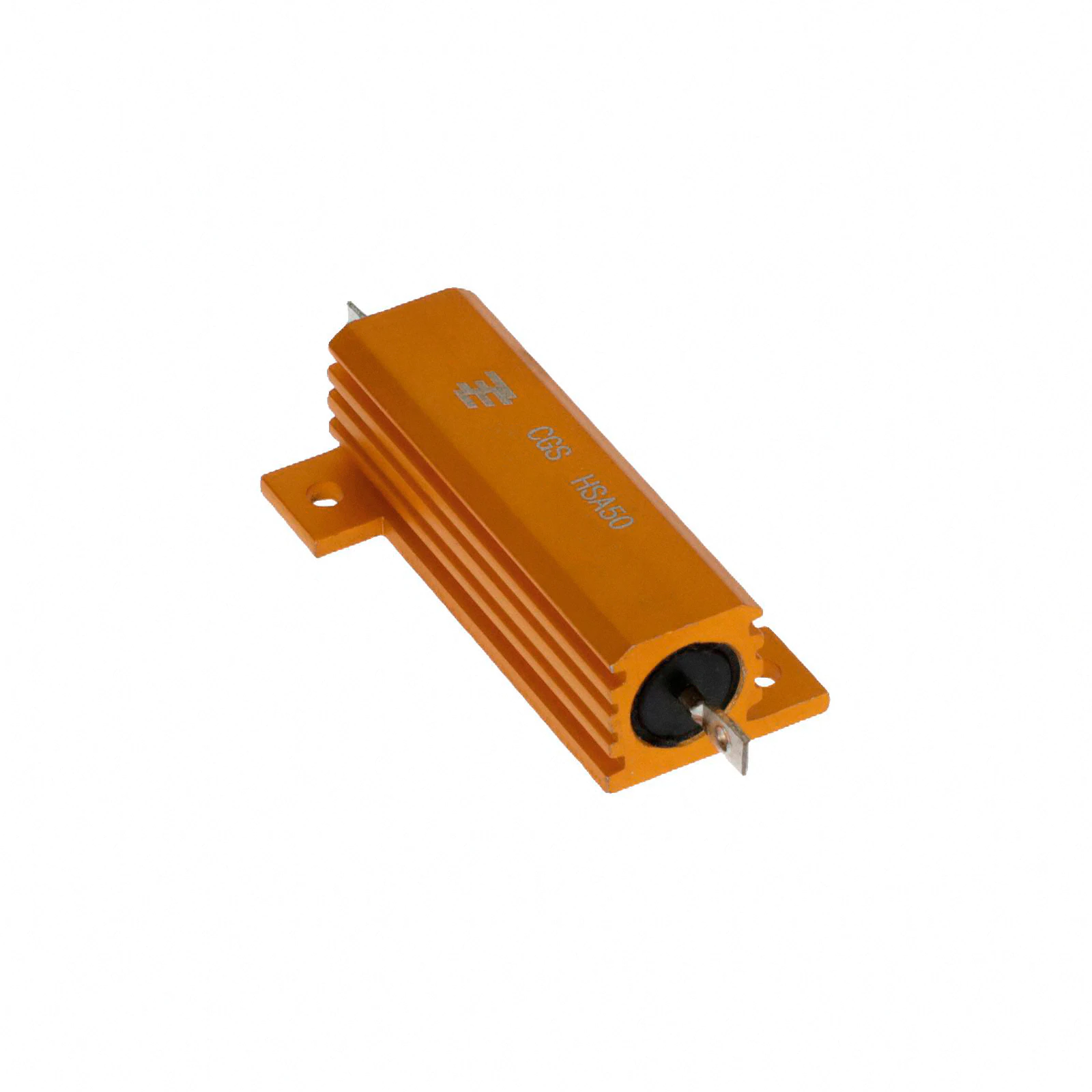

HSA50390RJRES CHAS MNT 390 OHM 5% 50W |
935 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 390 Ohms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
AHA25AFB-5RRES CHAS MNT 5 OHM 1% 25W |
379 |
|
Datasheet |
AHA | Axial, Box | Bulk | Active | 5 Ohms | ±1% | 25W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.063" L x 1.063" W (27.00mm x 27.00mm) | 0.587" (14.90mm) | Solder Lugs | - | - | - |
|
|
AHA25AFB-15RRES CHAS MNT 15 OHM 1% 25W |
101 |
|
Datasheet |
AHA | Axial, Box | Bulk | Active | 15 Ohms | ±1% | 25W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.063" L x 1.063" W (27.00mm x 27.00mm) | 0.587" (14.90mm) | Solder Lugs | - | - | - |
|
|
SQBW4047RJFASTONRES CHAS MNT 47 OHM 5% 40W |
904 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 47 Ohms | ±5% | 40W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 3.543" L x 0.748" W (90.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW4027RJFASTONRES CHAS MNT 27 OHM 5% 40W |
872 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 27 Ohms | ±5% | 40W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 3.543" L x 0.748" W (90.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW4022RJFASTONRES CHAS MNT 22 OHM 5% 40W |
840 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 22 Ohms | ±5% | 40W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 3.543" L x 0.748" W (90.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW4033RJFASTONRES CHAS MNT 33 OHM 5% 40W |
693 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 33 Ohms | ±5% | 40W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 3.543" L x 0.748" W (90.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW40220RJFASTONRES CHAS MNT 220 OHM 5% 40W |
679 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 220 Ohms | ±5% | 40W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 3.543" L x 0.748" W (90.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW40100RJFASTONRES CHAS MNT 100 OHM 5% 40W |
676 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 100 Ohms | ±5% | 40W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 3.543" L x 0.748" W (90.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW40330RJFASTONRES CHAS MNT 330 OHM 5% 40W |
545 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 330 Ohms | ±5% | 40W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 3.543" L x 0.748" W (90.00mm x 19.00mm) | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
SQBW404R7JFASTONRES CHAS MNT 4.7 OHM 5% 40W |
180 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 4.7 Ohms | ±5% | 40W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 3.543" L x 0.748" W (90.00mm x 19.00mm) | 0.787" (20.00mm) | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
THS502K7JRES CHAS MNT 2.7K OHM 5% 50W |
707 |
|
Datasheet |
THS, CGS | Axial, Box | Bag | Active | 2.7 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS503R3JRES CHAS MNT 3.3 OHM 5% 50W |
408 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 3.3 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
THS5068RJRES CHAS MNT 68 OHM 5% 50W |
365 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 68 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS50560RJRES CHAS MNT 560 OHM 5% 50W |
353 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 560 Ohms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS5033KJRES CHAS MNT 33K OHM 5% 50W |
348 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 33 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS501R5JRES CHAS MNT 1.5 OHM 5% 50W |
314 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 1.5 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
