Ceramic Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Impedance | Bandwidth | Insertion Loss | Filter Type | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM2275B16042275 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 11-SMD Module | Tape & Box (TB) | Active | 2.275GHz Center | 50Ohm | 250 MHz | 1.5dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.197" (5.00mm) |
|
|
AM897B1251897.5 MHZ CERAMIC BAND PASS FILT |
100 |
|
Datasheet |
- | 11-SMD Module | Tape & Box (TB) | Active | 897.5MHz Center | 50Ohm | 100 MHz | 2dB | Band Pass | Surface Mount | 1.260" L x 0.669" W (32.00mm x 17.00mm) | 0.295" (7.50mm) |
|
|
AM3600B16523600 MHZ CERAMIC BAND PASS FILTE |
44 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 3.6GHz Center | 50Ohm | 800 MHz | 2dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM1000B10551000 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 20-SMD Module | Tape & Box (TB) | Active | 1GHz Center | 50Ohm | 35 MHz | 3dB | Band Pass | Surface Mount | 1.354" L x 0.551" W (34.40mm x 14.00mm) | 0.228" (5.80mm) |
|
|
AM4000B17124000 MHZ CERAMIC BAND PASS FILTE |
304 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 4GHz Center | 50Ohm | 200 MHz | 2dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.207" (5.25mm) |
|
|
AM6300B11296300 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 6.3GHz Center | 50Ohm | 480 MHz | 3dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM640B1498640 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 640MHz Center | 50Ohm | 40 MHz | 1.3dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
|
AM4500B11264500 MHz Ceramic Bandpass Filter |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 4.5GHz Center | 50Ohm | 480 MHz | 3dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM2250B14362250 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 2.25GHz Center | 50Ohm | 100 MHz | 1.2dB | Band Pass | Surface Mount | 0.900" L x 0.500" W (22.86mm x 12.70mm) | 0.202" (5.13mm) |
|
|
AM3150B13253150 MHZ CERAMIC BANDPASS FILTER |
100 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 3.15GHz Center | 50Ohm | 300 MHz | 1.2dB | Band Pass | Surface Mount | 0.720" L x 0.550" W (18.29mm x 13.97mm) | 0.190" (4.83mm) |
|
|
AM2260B10392260 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 2.26GHz Center | 50Ohm | 80 MHz | 2dB | Band Pass | Surface Mount | 0.960" L x 0.329" W (24.38mm x 8.35mm) | 0.197" (5.00mm) |
|
|
AM434B1698434 MHZ CERAMIC BAND PASS FILTER |
50 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 434MHz Center | 50Ohm | 10 MHz | 1.5dB | Band Pass | Surface Mount | 0.984" L x 0.748" W (25.00mm x 19.00mm) | 0.287" (7.30mm) |
|
|
AM1460B13091460 MHZ CERAMIC BAND PASS FILTE |
77 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 1.46GHz Center | 50Ohm | 36 MHz | 2.5dB | Band Pass | Surface Mount | 1.520" L x 0.551" W (38.60mm x 14.00mm) | 0.291" (7.40mm) |
|
|
AM859B1560859 MHZ CERAMIC BAND PASS FILTER |
59 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 859MHz Center | 50Ohm | 70 MHz | 1.6dB | Band Pass | Surface Mount | 1.024" L x 0.945" W (26.00mm x 24.00mm) | 0.283" (7.20mm) |
|
|
AM3700B14783700 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 3.7GHz Center | 50Ohm | 100 MHz | 3.5dB | Band Pass | Surface Mount | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 0.197" (5.00mm) |
|
|
AM5700B11285700 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 5.7GHz Center | 50Ohm | 480 MHz | 3dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM2600B9992600 MHZ CERAMIC BAND PASS FILTE |
87 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 2.6GHz Center | 50Ohm | 200 MHz | 2dB | Band Pass | Surface Mount | 1.043" L x 0.551" W (26.50mm x 14.00mm) | 0.217" (5.50mm) |
|

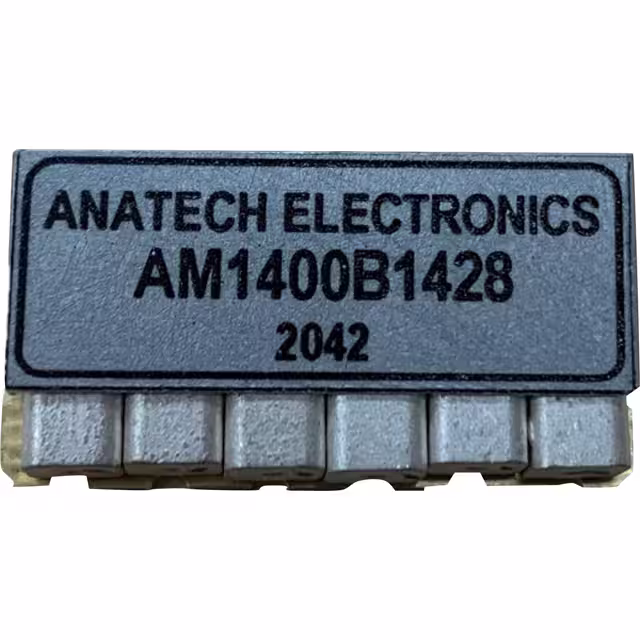

AM1400B14281400 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 1.4GHz Center | 50Ohm | 400 MHz | 1dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM3500B15453500 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 3.5GHz Center | 50Ohm | 20 MHz | 5.4dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM2500B13772500 MHZ LTE FREQUENCY BAND 7 CE |
100 |
|
Datasheet |
- | 18-SMD Module | Tape & Box (TB) | Active | 2.5GHz Center | 50Ohm | 40 MHz | 5.5dB | Band Pass | Surface Mount | 2.126" L x 0.709" W (54.00mm x 18.00mm) | 0.248" (6.30mm) |
Ceramic Filters Electronic Components
Explore Ceramic Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
