Ceramic Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Impedance | Bandwidth | Insertion Loss | Filter Type | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM1800B16141800 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 14-SMD Module | Tape & Box (TB) | Active | 1.8GHz Center | 50Ohm | 100 MHz | 1.5dB | Band Pass | Surface Mount | 0.803" L x 0.551" W (20.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM1600B11641600 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 1.6GHz Center | 50Ohm | 48 MHz | 4dB | Band Pass | Surface Mount | 1.043" L x 0.551" W (26.50mm x 14.00mm) | 0.209" (5.30mm) |
|
|
AM1800B14621800 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.8GHz Center | 50Ohm | 100 MHz | 2dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
|
AM3700B15473700 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 3.7GHz Center | 50Ohm | 20 MHz | 5.4dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
AM4000B10334000 MHZ CERAMIC BAND PASS FILTE |
167 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 4GHz Center | 50Ohm | 100 MHz | 3dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM3600B12443600 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 3.6GHz Center | 50Ohm | 44 MHz | 8dB | Band Pass | Surface Mount | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 0.197" (5.00mm) |
|
|
AM3700B12903700 MHZ CERAMIC BAND PASS FILTE |
40 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 3.7GHz Center | 50Ohm | 50 MHz | 4dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM6045B11636045 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 14-SMD Module | Tape & Box (TB) | Active | 6.045GHz Center | 50Ohm | 90 MHz | 5dB | Band Pass | Surface Mount | 1.040" L x 0.440" W (26.42mm x 11.18mm) | 0.230" (5.84mm) |
|
AM5405B11615405 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 5.405GHz Center | 50Ohm | 90 MHz | 5dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM6350B10436350 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 6.35GHz Center | 50Ohm | 400 MHz | 3dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM1304B15321304 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 11-SMD Module | Tape & Box (TB) | Active | 1.304GHz Center | 50Ohm | 24 MHz | 3.1dB | Band Pass | Surface Mount | 1.260" L x 0.669" W (32.00mm x 17.00mm) | 0.295" (7.50mm) |
|
|
AM2350B14132350 MHZ CERAMIC BAND PASS FILTE |
30 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 2.35GHz Center | 50Ohm | 30 MHz | 3dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM2050B11172050 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 2.05GHz Center | 50Ohm | 900 MHz | 2dB | Band Pass | Surface Mount | 1.598" L x 0.500" W (40.60mm x 12.70mm) | 0.276" (7.00mm) |
|

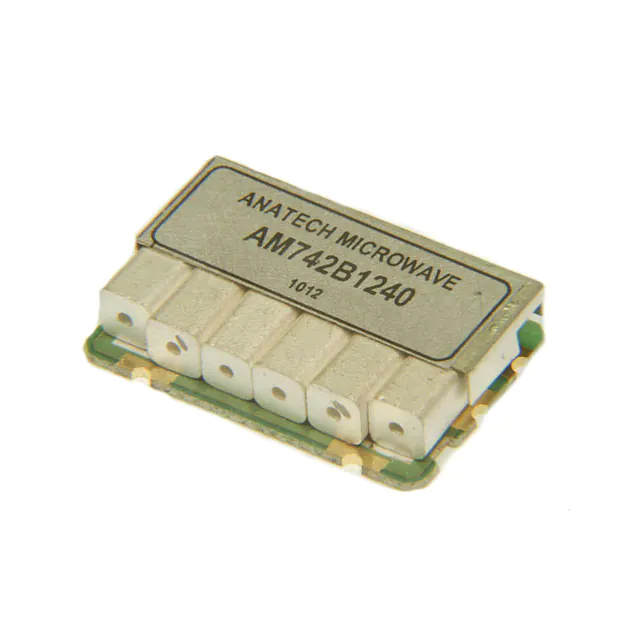

AM742B1240742 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 742MHz Center | 50Ohm | 13 MHz | 4dB | Band Pass | Surface Mount | 1.024" L x 0.669" W (26.00mm x 17.00mm) | 0.295" (7.50mm) |
|
|
AM2655B16342655 MHZ CONNECTORIZED CERAMIC B |
100 |
|
- |
* | - | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - |
|
|
AM1800B16881800 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 20-SMD Module | Tape & Box (TB) | Active | 1.8GHz Center | 50Ohm | 500 MHz | 2.5dB | Band Pass | Surface Mount | 1.354" L x 0.551" W (34.40mm x 14.00mm) | 0.228" (5.80mm) |
|
|
AM2400B10682400 MHZ CERAMIC BAND PASS FILTE |
81 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 2.4GHz Center | 50Ohm | 200 MHz | 1.5dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM3700B13963700 MHZ CERAMIC BANDPASS FILTER |
45 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 3.7GHz Center | 50Ohm | 50 MHz | 7dB | Band Pass | Surface Mount | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 0.197" (5.00mm) |
|
|
AM995B1597995 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 995MHz Center | 50Ohm | 40 MHz | 2.1dB | Band Pass | Surface Mount | 0.720" L x 0.550" W (18.29mm x 13.97mm) | 0.190" (4.83mm) |
|
|
AM457B1319457 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 18-SMD Module | Tape & Box (TB) | Active | 457.5MHz Center | 50Ohm | 73 MHz | 4dB | Band Pass | Surface Mount | 1.496" L x 0.866" W (38.00mm x 22.00mm) | 0.295" (7.50mm) |
Ceramic Filters Electronic Components
Explore Ceramic Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
