Ceramic Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Impedance | Bandwidth | Insertion Loss | Filter Type | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM882B1391882.5 MHZ CERAMIC BAND PASS FILT |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 882.5MHz Center | 50Ohm | 15 MHz | 3dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|
|
AM3675B12723675 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 3.675GHz Center | 50Ohm | 50 MHz | 4dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
|
AM737B1269737 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 737MHz Center | 50Ohm | 18 MHz | 3dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
AM2132B11932132.5 MHZ CERAMIC BAND PASS FIL |
100 |
|
- |
- | 8-SMD Module | Tape & Box (TB) | Active | 2.1325GHz Center | 50Ohm | 45 MHz | 2dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
|
AM800B1350800 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 800MHz Center | 50Ohm | 20 MHz | 3dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
|
AM2740B5362740 MHZ CERAMIC BAND PASS FILTE |
61 |
|
Datasheet |
- | 13-SMD Module | Tape & Box (TB) | Active | 2.74GHz Center | - | 44 MHz | 3.9dB | Band Pass | Surface Mount | 1.024" L x 0.669" W (26.00mm x 17.00mm) | 0.276" (7.00mm) |
|
|
AM942B1285942 MHZ CERAMIC BAND PASS FILTER |
49 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 942.5MHz Center | 50Ohm | 35 MHz | 3.2dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|

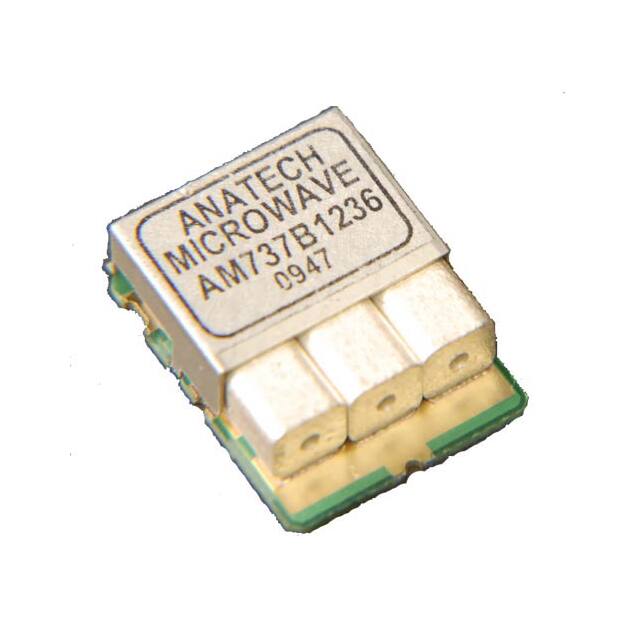

AM737B1236737 MHZ CERAMIC BAND PASS FILTE |
40 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 737MHz Center | 50Ohm | 18 MHz | 3dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
AM779B1192779 MHZ CERAMIC BAND PASS FILTER |
39 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 779MHz Center | 50Ohm | 18 MHz | 2dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
AM751B1183751 MHZ CERAMIC BAND PASS FILTER |
38 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 751MHz Center | 50Ohm | 10 MHz | 3dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
AM749B1190749 MHZ CERAMIC BAND PASS FILTER |
33 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 749MHz Center | 50Ohm | 9 MHz | 2dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
|
AM1800B15521800 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 1.8GHz Center | 50Ohm | 100 MHz | 1.5dB | Band Pass | Surface Mount | 0.717" L x 0.551" W (18.20mm x 14.00mm) | 0.209" (5.30mm) |
|
|
AM1843B14601843 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.843GHz Center | 50Ohm | 75 MHz | 3dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
|
AM1542B5561525-1559MHZ CERAMIC BAND PASS F |
52 |
|
Datasheet |
- | Monoblock, 4 PC Pad | Tape & Box (TB) | Active | 1.542GHz Center | 50Ohm | 34 MHz | 1dB | Band Pass | Surface Mount | 1.322" L x 0.263" W (33.58mm x 6.68mm) | 0.309" (7.85mm) |
|
|
AM1542B14381542 MHZ CERAMIC BAND PASS FILTE |
30 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.5425GHz Center | 50Ohm | 34 MHz | 2dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
AM1488B12871488 MHZ CERAMIC BAND PASS |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.4884GHz Center | 50Ohm | 25 MHz | 3.8dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
AM1542B12331542 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.542GHz Center | 50Ohm | 34 MHz | 3dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
|
AM1519B16111519 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 1.519GHz Center | 50Ohm | 32 MHz | 2.8dB | Band Pass | Surface Mount | 0.720" L x 0.550" W (18.29mm x 13.97mm) | 0.190" (4.83mm) |
|
|
AM3000B13733000 MHZ CERAMIC BAND PASS FILTE |
250 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 3GHz Center | 50Ohm | 200 MHz | 2.5dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
|
AM905B1549905 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 905MHz Center | 50Ohm | 110 MHz | 1.5dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
