Ceramic Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Impedance | Bandwidth | Insertion Loss | Filter Type | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM1960B14241960 MHZ CERAMIC BAND PASS FILTE |
55 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.96GHz Center | 50Ohm | 60 MHz | 3.6dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
|
AM1621B12611621 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.621GHz Center | 50Ohm | 10 MHz | 2dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|
|
AM1882B15141882.5 MHZ CERAMIC BAND PASS FIL |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.8825GHz Center | 50Ohm | 65 MHz | 2dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.217" (5.50mm) |
|
|
AM1812B12551812.5 MHZ CERAMIC BAND PASS FIL |
100 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 1.8125GHz Center | 50Ohm | 6 MHz | 2dB | Band Pass | Surface Mount | 0.748" L x 0.669" W (19.00mm x 17.00mm) | 0.287" (7.30mm) |
|
|
AM1802B11741802.5 MHZ CERAMIC BAND PASS FIL |
100 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 1.8025GHz Center | 50Ohm | 95 MHz | 1.5dB | Band Pass | Surface Mount | 0.550" L x 0.500" W (13.97mm x 12.70mm) | 0.200" (5.08mm) |
|
|
AM763B1389763 MHZ CERAMIC BAND PASS FILTER |
105 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 763MHz Center | 50Ohm | 5 MHz | 3.6dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|
|
AM754B1270754.5 MHZ CERAMIC BAND PASS FILT |
100 |
|
Datasheet |
- | 5-SMD Module | Tape & Box (TB) | Active | 754.5MHz Center | 50Ohm | 17 MHz | 3dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
AM754B1256754.5 MHZ CERAMIC BAND PASS FILT |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 754.5MHz Center | 50Ohm | 8.5 MHz | 3dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
|
AM784B1271784 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 5-SMD Module | Tape & Box (TB) | Active | 784.5MHz Center | 50Ohm | 17 MHz | 3dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
AM500B1584500 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 14-SMD Module | Tape & Box (TB) | Active | 500MHz Center | 50Ohm | 15 MHz | 1.6dB | Band Pass | Surface Mount | 1.051" L x 0.559" W (26.70mm x 14.20mm) | 0.281" (7.15mm) |
|

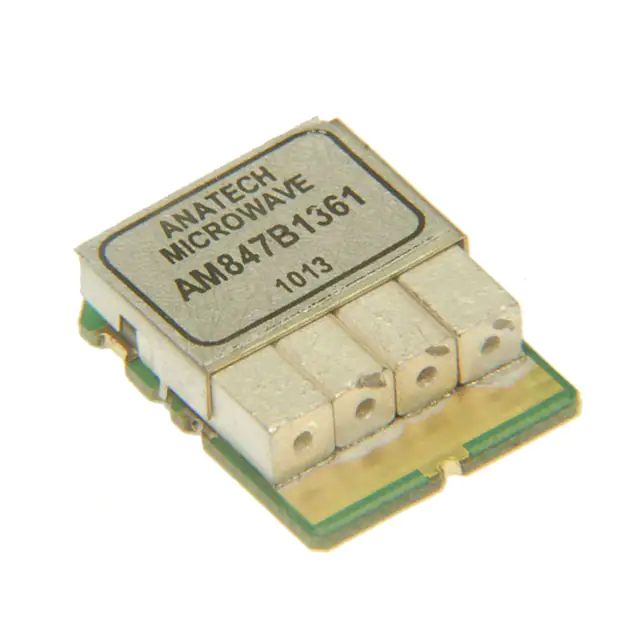

AM847B1361847 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 847MHz Center | 50Ohm | 30 MHz | 4dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
|
AM763B1384763 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 763MHz Center | 50Ohm | 5 MHz | 3.6dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
AM2535B11452535 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 3-SMD Module | Tape & Box (TB) | Active | 2.535GHz Center | 50Ohm | 70 MHz | 2.2dB | Band Pass | Surface Mount | 0.650" L x 0.256" W (16.50mm x 6.50mm) | 0.280" (7.10mm) |
|
|
AM943B1441943 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 943MHz Center | 50Ohm | 35 MHz | 3.2dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|
|
AM707B1235707 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 707MHz Center | 50Ohm | 9 MHz | 2dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
|
AM1842B1511842 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | Monoblock, 2 PC Pad | Tape & Box (TB) | Active | 1.8425GHz Center | 50Ohm | 72 MHz | 2.5dB | Band Pass | Surface Mount | 0.237" L x 0.157" W (6.02mm x 4.00mm) | 0.098" (2.50mm) |
|
|
AM837B1390837.5 MHZ CERAMIC BAND PASS FILT |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 837.5MHz Center | 50Ohm | 15 MHz | 3dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|
|
AM1900B14801900 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | Monoblock, 3 PC Pad | Tape & Box (TB) | Active | 1.9GHz Center | 50Ohm | 40 MHz | 1.8dB | Band Pass | Surface Mount | 0.417" L x 0.272" W (10.60mm x 6.90mm) | 0.157" (4.00mm) |
|
|
AM749B1189749 MHZ CERAMIC BAND PASS FILTER |
100 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 749MHz Center | 50Ohm | 18 MHz | 2dB | Band Pass | Surface Mount | 0.669" L x 0.512" W (17.00mm x 13.00mm) | 0.217" (5.50mm) |
|
|
AM4450B12394450 MHZ CERAMIC BAND PASS FILTE |
100 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 4.45GHz Center | 50Ohm | 100 MHz | 3dB | Band Pass | Surface Mount | 0.717" L x 0.551" W (18.20mm x 14.00mm) | 0.209" (5.30mm) |
