Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HVCC153Y6P102KEAXHVCC 15KVDC 1000PF 10% Y6P BULK |
3,508 |
|
Datasheet |
HVCC | Bulk | Active | 1000 pF | ±10% | 15000V (15kV) | Y6P | -30°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.591" Dia (15.00mm) | 0.748" (19.00mm) | - | 0.492" (12.50mm) | Straight |
-2,54mm.jpg)
|
2225AC104KAZ1ACAP CER 0.1UF 1KV X7R 2225 |
1,358 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | - | 0.100" (2.54mm) | - | - |
|
VJ2225Y224KXEATCAP CER 0.22UF 500V X7R 2225 |
4,232 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 500V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.250" W (5.59mm x 6.35mm) | - | 0.086" (2.18mm) | - | - |
.JPG)
|
HV2220Y102KXVATHVCAP CER 1000PF 4KV X7R 2220 |
2,372 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 1000 pF | ±10% | 4000V (4kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.106" (2.70mm) | - | - |
|
WKP472MCPEJ0KRCAP CER 4700PF 760VAC Y5U RADIAL |
2,800 |
|
Datasheet |
WKP | Bulk | Active | 4700 pF | ±20% | 760VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.709" Dia (18.00mm) | 0.827" (21.00mm) | - | 0.492" (12.50mm) | Straight |
-4,50x3,20x2,7mm.jpg)
|
C1812X473JBGACAUTOCAP CER 1812 47NF 630V C0G 5% |
4,390 |
|
Datasheet |
SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
|
C1210C224J3GACTUCAP CER 0.22UF 25V C0G/NP0 1210 |
3,331 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.091" (2.30mm) | - | - |
|

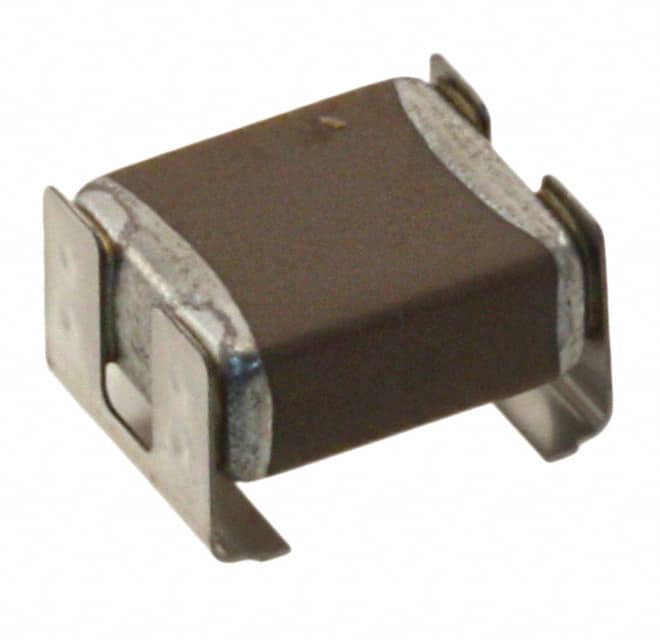

KCM55QR7YA226KH01LCAP CER 22UF 35V X7R SMD |
2,891 |
|
Datasheet |
KCM | Tape & Reel (TR) | Active | 22 µF | ±10% | 35V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.154" (3.90mm) | - | J-Lead |
|
|
HV2220Y102KXMATHVCAP CER 1000PF 5KV X7R 2220 |
15,810 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 1000 pF | ±10% | 5000V (5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.106" (2.70mm) | - | - |
.jpg)
|
600F181FT250XTCAP CER 180PF 250V C0G/NP0 0805 |
12,688 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 180 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
|
KGM32LR51E476MUCAP CER 47UF 25V X5R 1210 |
3,209 |
|
Datasheet |
KGM - X5R | Tape & Reel (TR) | Active | 47 µF | ±20% | 25V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
KCM55WR7YA476MH01LCAP CER 47UF 35V X7R SMD |
41,573 |
|
Datasheet |
KCM | Tape & Reel (TR) | Active | 47 µF | ±20% | 35V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.264" (6.70mm) | - | J-Lead |
|
|
HVCC203Y6P102MEAXHVCC 20KVDC 1000PF 20% Y6P BULK |
5,549 |
|
Datasheet |
HVCC | Bulk | Active | 1000 pF | ±20% | 20000V (20kV) | Y6P | -30°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.669" Dia (17.00mm) | 0.827" (21.00mm) | - | 0.492" (12.50mm) | Straight |
|
CKG57NX5R1E476M500JHCAP CER 47UF 25V X5R SMD |
79,077 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 47 µF | ±20% | 25V | X5R | -55°C ~ 85°C | Low ESL (Stacked) | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
|
C2225X125K2RACTUCAP CER 1.2UF 200V X7R 2225 |
15,895 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 1.2 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750C0G3A333J280KCCAP CER 0.033UF 1KV NP0 2220 |
4,487 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.122" (3.10mm) | - | - |
|
FA23X7R1H106KRU06CAP CER 10UF 50V X7R RAD |
1,795 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 10 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
KRM55QR71J106KH01KCAP CER 10UF 63V X7R SMD |
1,656 |
|
Datasheet |
KRM | Tape & Reel (TR) | Active | 10 µF | ±10% | 63V | X7R | -55°C ~ 125°C | - | - | Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.154" (3.90mm) | - | J-Lead |
|
KTJ101B106M55BFT00CAP CER 10UF 100V X7R SMD |
3,545 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 10 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | 0.217" (5.50mm) | - | J-Lead |
-2,80mm.jpg)
|
18125A103FAT2ACAP CER 10000PF 50V C0G/NP0 1812 |
6,278 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 10000 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.057" (1.45mm) | - | - |
