Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1206R474K5RACTUCAP CER 0.47UF 50V X7R 1206 |
813 |
|
Datasheet |
SMD Indust X7R HT175C | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 50V | X7R | -55°C ~ 175°C | Soft Termination, High Temperature | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|

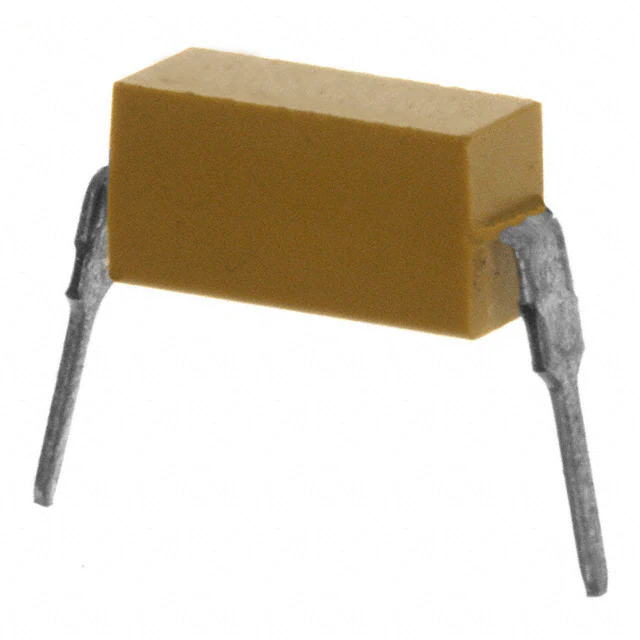

MD015C103KABCAP CER 10000PF 50V X7R 2-DIP |
7,362 |
|
Datasheet |
DIPGuard® MD | Bulk | Active | 10000 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
.jpg)
|
1206E104K500KHTCAP CER 0.1UF 50V 1206 |
1,354 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | - | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.125" L x 0.060" W (3.18mm x 1.52mm) | - | 0.064" (1.63mm) | - | - |
|
100A390JW150XT1KCAP CER 39PF 150V P90 0505 |
10,921 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 39 pF | ±5% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
C0805C273F3GACTUCAP CER 0.027UF 25V C0G/NP0 0805 |
5,584 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.027 µF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.047" (1.20mm) | - | - |
|
564R30GAS10CAP CER 10000PF 3KV Y5U RADIAL |
3,457 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 10000 pF | ±20% | 3000V (3kV) | Y5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.720" Dia (18.30mm) | 0.909" (23.10mm) | - | 0.374" (9.50mm) | Straight |
.jpg)
|
100B3R3CT500XT1KCAP CER 3.3PF 500V P90 1111 |
100,560 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 3.3 pF | ±0.25pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-4,60x6,40x1,65mm.jpg)
|
C1825X105KARAC7800CAP CER 1UF 250V X7R 1825 |
3,454 |
|
Datasheet |
SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 1 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.252" W (4.60mm x 6.40mm) | - | 0.065" (1.65mm) | - | - |
.JPG)
|
HV2225Y102KXVATHVCAP CER 1000PF 4KV X7R 2225 |
417 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 1000 pF | ±10% | 4000V (4kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.250" W (5.59mm x 6.35mm) | - | 0.106" (2.70mm) | - | - |
-3,30mm.jpg)
|
2220AC104KAZ1ACAP CER 0.1UF 1KV X7R 2220 |
2,605 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.130" (3.30mm) | - | - |
|
|
600F101FT250XT4KCAP CER 100PF 250V NP0 0805 |
7,215 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 100 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
KTS101B685K55F0T00CAP CER 6.8UF 100V X7R 2220 |
5,036 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 6.8 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
K105K20X0UF63H5HCAP CER 1UF 50V X0U RADIAL |
8,691 |
|
Datasheet |
HOTcap® | Bulk | Active | 1 µF | ±10% | 50V | X0U | -55°C ~ 175°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.299" (7.60mm) | - | 0.197" (5.00mm) | Formed Leads |
-2.3.jpg)
|
CGA9P3X7T2E225K250KACAP CER 2.2UF 250V X7T 2220 |
20,051 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 250V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1206R105K3RACTUCAP CER 1UF 25V X7R 1206 |
1,608 |
|
Datasheet |
SMD Indust X7R HT175C | Tape & Reel (TR) | Active | 1 µF | ±10% | 25V | X7R | -55°C ~ 175°C | Soft Termination, High Temperature | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
CGA9N3X7S2A106K230KECAP CER 10UF 100V X7S 2220 |
30,728 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10 µF | ±10% | 100V | X7S | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.102" (2.60mm) | - | - |
|
|
CGA9N3X7S2A106M230KECAP CER 10UF 100V X7S 2220 |
2,573 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10 µF | ±20% | 100V | X7S | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.102" (2.60mm) | - | - |
.JPG)
|
HV2220Y222KX6ATHVCAP CER 2.2 NF 6KV X7R 2220 |
5,870 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 2200 pF | ±10% | 6000V (6kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.106" (2.70mm) | - | - |
|
|
C1825X105K2RAC7800CAP CER 1UF 200V X7R 1825 |
1,201 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 1 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.252" W (4.60mm x 6.40mm) | - | 0.065" (1.65mm) | - | - |
|
VJ2225Y104KXGATCAP CER 0.1UF 1KV X7R 2225 |
40,248 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.250" W (5.59mm x 6.35mm) | - | 0.086" (2.18mm) | - | - |
