Bipolar Transistor Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG2803J-DESCTRANS 8NPN DARL 50V 500MA 18CDIP |
4,549 |
|
- |
- | - | Tube | Active | 8 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
|
|
SG2823JTRANS 8NPN DARL 95V 500MA 18CDIP |
5,824 |
|
- |
- | - | Tube | Active | 8 NPN Darlington | 500mA | 95V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 18-CDIP |
|
|
SG2823J-883BTRANS 8NPN DARL 95V 500MA 18CDIP |
5,473 |
|
- |
- | - | Tube | Active | 8 NPN Darlington | 500mA | 95V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 18-CDIP |
|
|
SG2823J-DESCTRANS 8NPN DARL 95V 500MA 18CDIP |
7,893 |
|
- |
- | - | Tube | Active | 8 NPN Darlington | 500mA | 95V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 18-CDIP |
|
SLA6022TRANS 3NPN/3PNP DARL 12SIP |
5,047 |
|
Datasheet |
- | 12-SIP Exposed Tab | Tube | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 5A | 80V, 100V | 1.5V @ 6mA, 3A | 10µA (ICBO) | 2000 @ 3A, 4V | 5W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|

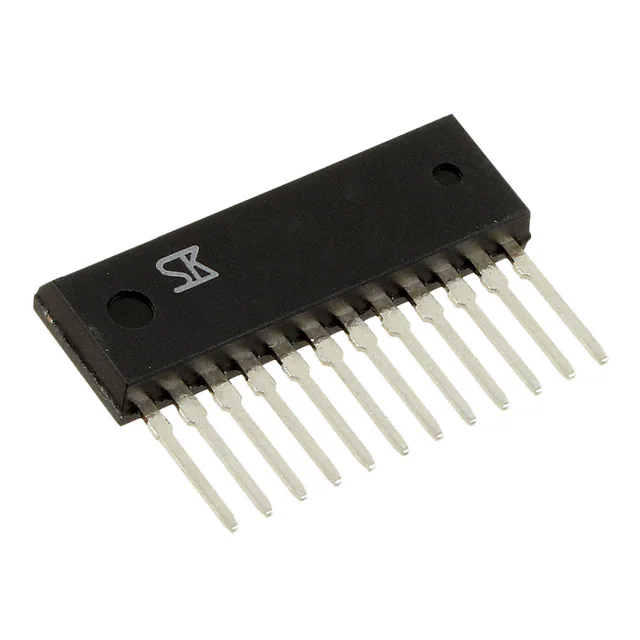

SMA4021TRANS 4PNP DARL 60V 3A 12-SIP |
7,557 |
|
Datasheet |
- | 12-SIP | Tube | Obsolete | 4 PNP Darlington (Quad) | 3A | 60V | 1.5V @ 4mA, 2A | 10µA (ICBO) | 2000 @ 2A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SMA6080TRANS 3NPN/3PNP DARL 60V 12SIP |
4,643 |
|
Datasheet |
- | 12-SIP | Tube | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 2A | 60V | 1.5V @ 2mA, 1A | 100µA (ICBO) | 2000 @ 1A, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SMA6511TRANS 4NPN/1PNP DARL 60V 12SIP |
6,545 |
|
Datasheet |
- | 12-SIP | Tube | Obsolete | 4 NPN, 1 PNP Darlington | 1.5A, 3A | 60V | 1.5V @ 2mA, 1A | 100µA (ICBO) | 2000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
STA301ATRANS 3NPN DARL 60V 4A 8-SIP |
8,797 |
|
Datasheet |
- | 8-SIP | Bulk | Obsolete | 3 NPN Darlington (Emitter Coupled) | 4A | 60V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 3W | - | 150°C (TJ) | - | - | Through Hole | 8-SIP |
|
STA413ATRANS 4NPN QUAD 35V 3A 10-SIP |
6,350 |
|
Datasheet |
- | 10-SIP | Bulk | Obsolete | 4 NPN (Quad) | 3A | 35V | 500mV @ 5mA, 1A | 10µA (ICBO) | 500 @ 500mA, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA431ATRANS 2NPN/2PNP 60V 3A 10-SIP |
3,361 |
|
Datasheet |
- | 10-SIP | Bulk | Obsolete | 2 NPN, 2 PNP (H-Bridge) | 3A | 60V | 1V @ 200mA, 2A | 100µA (ICBO) | 40 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA460CTRANS 2NPN DARL 60V 6A 10-SIP |
3,753 |
|
Datasheet |
- | 10-SIP | Bulk | Obsolete | 2 NPN Darlington (Dual) | 6A | 60V | 150mV @ 15mA, 1.5A | 10µA (ICBO) | 700 @ 1A, 1V | 3.2W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA472ATRANS 4PNP DARL 60V 2A 10-SIP |
6,683 |
|
Datasheet |
- | 10-SIP | Bulk | Obsolete | 4 PNP Darlington (Quad) | 2A | 60V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | 100MHz | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA485ATRANS 4NPN DARL 100V 1A 10-SIP |
4,158 |
|
Datasheet |
- | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 1A | 100V | 1.5V @ 1mA, 500mA | 10µA (ICBO) | 2000 @ 500mA, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SLA6012TRANS 3NPN/3PNP DARL 60V 12SIP |
6,743 |
|
Datasheet |
- | 12-SIP Exposed Tab | Tube | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 4A | 60V | 1.5V @ 6mA, 3A | 10µA (ICBO) | 2000 @ 3A, 4V | 5W, 25W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
HN3A51F(TE85L,F)TRANS 2PNP DUAL 120V 100MA SM6 |
3,239 |
|
- |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 100mA | 120V | 300mV @ 1mA, 10mA | 100nA (ICBO) | 200 @ 2mA, 6V | 300mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | SM6 |
|
|
HN3C51F-BL(TE85L,FTRANS 2NPN DUAL 120V 100MA SM6 |
9,967 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 100mA | 120V | 300mV @ 1mA, 10mA | 100nA (ICBO) | 350 @ 2mA, 6V | 300mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | SM6 |
|
|
HN3C51F-GR(TE85L,FTRANS 2NPN DUAL 120V 100MA SM6 |
6,117 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 100mA | 120V | 300mV @ 1mA, 10mA | 100nA (ICBO) | 200 @ 2mA, 6V | 300mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | SM6 |
|
HN4B04J(TE85L,F)TRANS NPN/PNP 30V 500MA SMV |
6,685 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP | 500mA | 30V | 250mV @ 10mA, 100mA | 100µA (ICBO) | 70 @ 100mA, 1V | 300mW | 200MHz | 150°C (TJ) | - | - | Surface Mount | SMV |
|

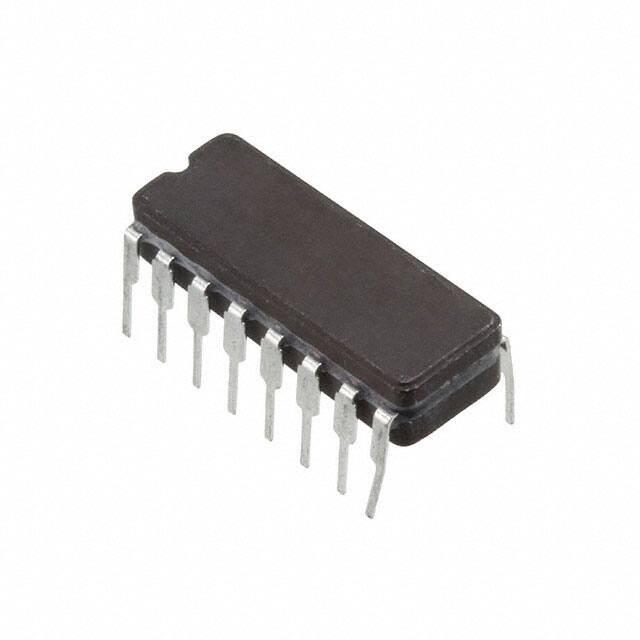

SG2013J-883BTRANS 7NPN DARL 50V 600MA 16CDIP |
5,075 |
|
Datasheet |
- | - | Bulk | Active | 7 NPN Darlington | 600mA | 50V | 1.9V @ 600µA, 500mA | - | 900 @ 500mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
Bipolar Transistor Arrays Electronic Components
Explore Bipolar Transistor Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
