Bipolar Transistor Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBSS4032SP,115TRANS 2PNP DUAL 30V 4.8A 8-SO |
8,910 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 4.8A | 30V | 510mV @ 250mA, 5A | 100nA | 150 @ 2A, 2V | 2.3W | 115MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
PBSS4032SPN,115TRANS NPN/PNP 30V 5.7A/4.8A 8-SO |
2,415 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP | 5.7A, 4.8A | 30V | 450mV @ 300mA, 6A / 510mV @ 250mA, 5A | 100nA | 250 @ 2A, 2V / 150 @ 2A, 2V | 2.3W | 140MHz, 115MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
PBSS4041SN,115TRANS 2NPN DUAL 60V 6.7A 8-SO |
7,346 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 6.7A | 60V | 350mV @ 350mA, 7A | 100nA | 150 @ 4A, 2V | 2.3W | 130MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
PBSS4041SP,115TRANS 2PNP DUAL 60V 5.9A 8-SO |
3,483 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 5.9A | 60V | 275mV @ 400mA, 4A | 100nA | 150 @ 2A, 2V | 2.3W | 110MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
PBSS4041SPN,115TRANS NPN/PNP 60V 6.7A/5.9A 8-SO |
9,380 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP | 6.7A, 5.9A | 60V | 350mV @ 350mA, 7A / 275mV @ 400mA, 4A | 100nA | 150 @ 4A, 2V / 150 @ 2A, 2V | 2.3W | 130MHz, 110MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
MAT12AHZTRANS 2NPN 40V 20MA TO-78-6 |
2,451 |
|
Datasheet |
- | TO-78-6 Metal Can | Bulk | Active | 2 NPN (Dual) Matched Pair | 20mA | 40V | 200mV @ 100µA, 1mA | 500pA | - | - | 200MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-78-6 |
|
MCH6544-TL-ETRANS 2NPN 50V 500MA 6-MCPH |
6,115 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 500mA | 50V | 100mV @ 10mA, 100mA | 100nA (ICBO) | 300 @ 10mA, 2V | 550mW | 500MHz | 150°C (TJ) | - | - | Surface Mount | 6-MCPH |
|
CPH6531-TL-ETRANS 2PNP DUAL 50V 1A 6-CPH |
5,222 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 1A | 50V | 380mV @ 10mA, 500mA | 100nA (ICBO) | 200 @ 100mA, 2V | 1.1W | 420MHz | 150°C (TJ) | - | - | Surface Mount | 6-CPH |
|
MCH5541-TL-ETRANS NPN/PNP 30V 700MA 5-MCPH |
5,766 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Active | 1 NPN, 1 PNP (Emitter Coupled) | 700mA | 30V | 190mV @ 10mA, 200mA / 220mV @ 10mA, 200mA | 100nA (ICBO) | 300 @ 50mA, 2V | 500mW | 540MHZ, 520MHz | 150°C (TJ) | - | - | Surface Mount | 5-MCPH |
|
CPH6539-TL-HTRANS 2NPN DUAL 30V 1.5A 6-CPH |
3,166 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 1.5A | 30V | 250mV @ 15mA, 750mA | 100nA (ICBO) | 200 @ 100mA, 2V | 1.2W | 500MHz | 150°C (TJ) | - | - | Surface Mount | 6-CPH |
|
ECH8503-TL-HTRANS 2PNP DUAL 50V 5A 8-ECH |
4,531 |
|
Datasheet |
- | 8-SMD, Flat Lead | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 5A | 50V | 190mV @ 125mA, 2.5A | 100nA (ICBO) | 200 @ 500mA, 2V | 1.6W | 280MHz | 150°C (TJ) | - | - | Surface Mount | 8-ECH |
|
STA401ATRANS 4NPN DARL 60V 4A 10SIP |
3,156 |
|
Datasheet |
- | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 4A | 60V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA475ATRANS 4NPN DARL 100V 2A 10-SIP |
8,188 |
|
Datasheet |
- | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 2A | 100V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA481ATRANS 4NPN DARL 60V 1A 10SIP |
5,471 |
|
Datasheet |
- | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 1A | 60V | 1.5V @ 1mA, 500mA | 10µA (ICBO) | 2000 @ 500mA, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
FMW2T148TRANS GP NPN 50V 5 PIN |
8,793 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

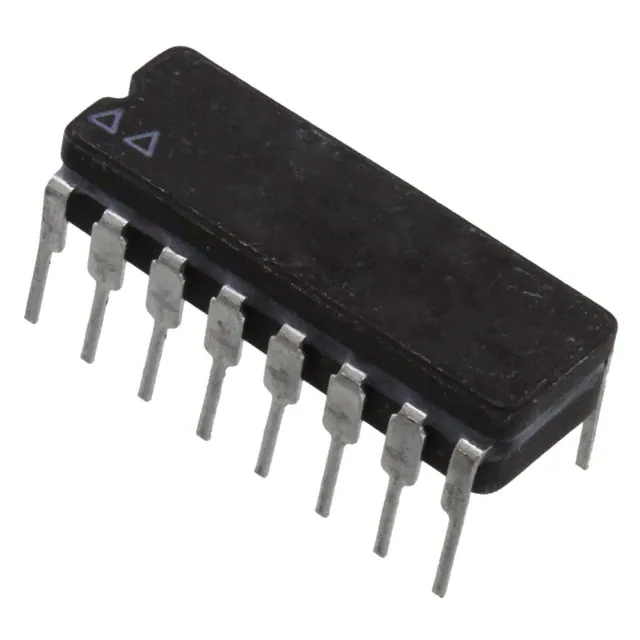

SG2003JTRANS 7NPN DARL 50V 500MA 16CDIP |
9,550 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | 7 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
|
|
SG2003J-883BTRANS 7NPN DARL 50V 500MA 16CDIP |
3,375 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | 7 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
|
|
SG2003J-JANTRANS 7NPN DARL 50V 500MA 16CDIP |
2,224 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | 7 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
|
|
SG2023J-DESCTRANS 7NPN DARL 95V 500MA 16CDIP |
6,996 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | 7 NPN Darlington | 500mA | 95V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
|

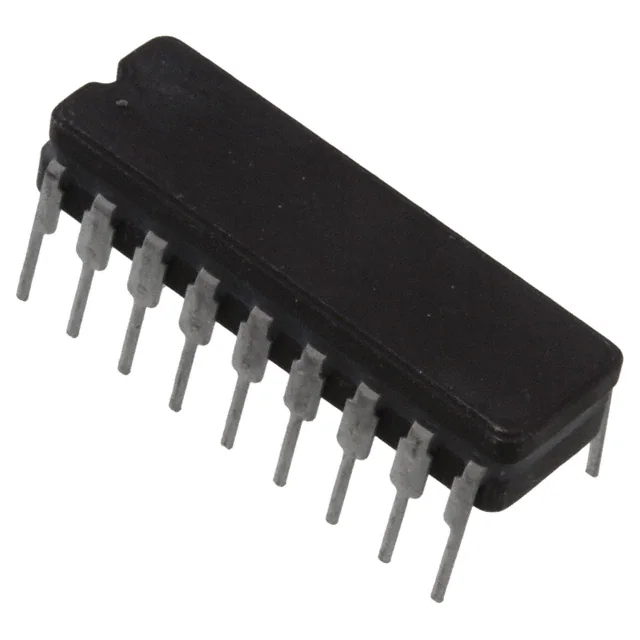

SG2803J-883BTRANS 8NPN DARL 50V 500MA 18CDIP |
2,307 |
|
- |
- | - | Tube | Active | 8 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
