Bipolar Transistor Arrays, Pre-Biased
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN1604(TE85L,F)TRANS 2NPN PREBIAS 0.3W SM6 |
2,928 |
|
- |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 300mW | - | - | Surface Mount | SM6 |
|
PQMD13ZTRANS PREBIAS 1NPN 1PNP 50V 6DFN |
2,801 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 100 @ 10mA, 5V | 100mV @ 250µA, 5mA | 1µA | 230MHz, 180MHz | 350mW | Automotive | AEC-Q101 | Surface Mount | DFN1010B-6 |
|
|
PQMD16ZTRANS PREBIAS 1NPN 1PNP 50V 6DFN |
3,222 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | 230MHz, 180MHz | 350mW | Automotive | AEC-Q101 | Surface Mount | DFN1010B-6 |
|
EMH25FHAT2RTRANS 2NPN 100MA EMT6 |
5,709 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 2 NPN - Pre-Biased (Dual) | 100mA | - | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | - | 250MHz | 150mW | Automotive | AEC-Q101 | Surface Mount | EMT6 |
|
|
EMH10FHAT2RNPN+NPN DIGITAL TRANSISTOR (CORR |
8,876 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 2 NPN - Pre-Biased (Dual) | 100mA | - | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | - | 250MHz | 150mW | Automotive | AEC-Q101 | Surface Mount | EMT6 |
|
|
EMH11FHAT2RNPN+NPN DIGITAL TRANSISTOR (CORR |
9,256 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 2 NPN - Pre-Biased (Dual) | 100mA | - | 10kOhms | 10kOhms | 30 @ 5mA, 5V | 300mV @ 500µA, 10mA | - | 250MHz | 150mW | Automotive | AEC-Q101 | Surface Mount | EMT6 |
|
RN1908FE(TE85L,F)TRANS 2NPN PREBIAS 0.1W ES6 |
9,654 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | - | - | Surface Mount | ES6 |
|
|
RN1910FE(T5L,F,T)TRANS 2NPN PREBIAS 0.1W ES6 |
2,501 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | - | - | Surface Mount | ES6 |
|
RN1905(T5L,F,T)TRANS 2NPN PREBIAS 0.2W US6 |
5,544 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | - | - | Surface Mount | US6 |
|
|
RN1911(T5L,F,T)TRANS 2NPN PREBIAS 0.1W US6 |
2,217 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Cut Tape (CT) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | - | - | Surface Mount | US6 |
|
XN0421F00LTRANS PREBIAS DUAL NPN MINI6 |
8,453 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 10kOhms | 30 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150MHz | 300mW | - | - | Surface Mount | MINI6-G1 |
|
RN2702TE85LFTRANS 2PNP PREBIAS 0.2W USV |
9,615 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) (Emitter Coupled) | 100mA | 50V | 10kOhms | 10kOhms | 50 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | - | - | Surface Mount | 5-SSOP |
|
|
RN2711(TE85L,F)TRANS 2PNP PREBIAS 0.2W USV |
4,718 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) (Emitter Coupled) | 100mA | 50V | 10kOhms | - | 400 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 200mW | - | - | Surface Mount | 5-SSOP |
|
|
EMH1FHAT2RNPN+NPN DIGITAL TRANSISTOR (CORR |
8,744 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 2 NPN - Pre-Biased (Dual) | 100mA | - | 22kOhms | 22kOhms | 56 @ 5mA, 5V | 300mV @ 500µA, 10mA | - | 250MHz | 150mW | Automotive | AEC-Q101 | Surface Mount | EMT6 |
|
|
EMD9FHAT2RPNP+NPN DIGITAL TRANSISTOR (CORR |
3,568 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | - | 10kOhms | 47kOhms | 68 @ 5mA, 5V | 300mV @ 250µA, 5mA | - | 250MHz | 150mW | Automotive | AEC-Q101 | Surface Mount | EMT6 |
|
|
EMD22FHAT2RPNP+NPN DIGITAL TRANSISTOR (CORR |
5,607 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | - | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | - | 250MHz | 150mW | Automotive | AEC-Q101 | Surface Mount | EMT6 |
|
|
EMD12FHAT2RPNP+NPN DIGITAL TRANSISTOR (CORR |
7,333 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | - | 47kOhms | 47kOhms | 68 @ 5mA, 5V | 300mV @ 500µA, 10mA | - | 250MHz | 150mW | Automotive | AEC-Q101 | Surface Mount | EMT6 |
|
|
EMD6FHAT2RPNP+NPN DIGITAL TRANSISTOR (CORR |
9,846 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 100 @ 1mA, 5V | 300mV @ 250µA, 5mA | 500nA (ICBO) | 250MHz | 150mW | Automotive | AEC-Q101 | Surface Mount | EMT6 |
|

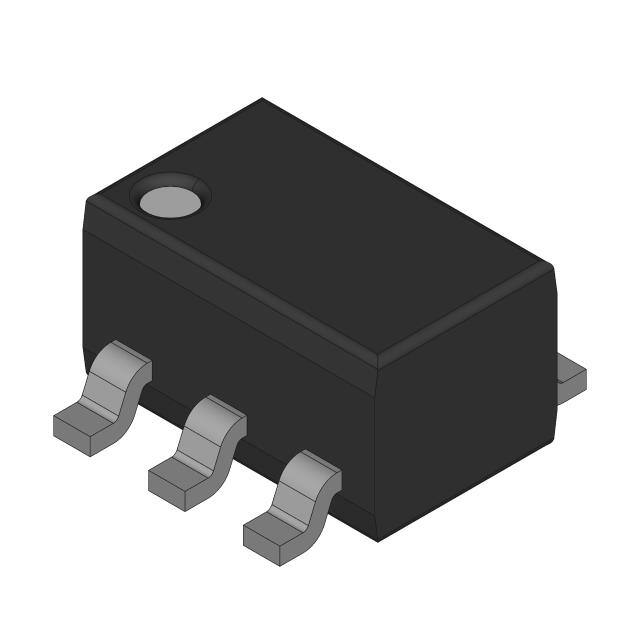

PUMF12,115TRANS PREBIAS 1NPN 1PNP 6TSSOP |
9,229 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 1 NPN Pre-Biased, 1 PNP | 100mA | 50V, 40V | 22kOhms | 47kOhms | 80 @ 5mA, 5V / 120 @ 1mA, 6V | 150mV @ 500µA, 10mA / 200mV @ 5mA, 50mA | 1µA | 100MHz | 300mW | - | - | Surface Mount | 6-TSSOP |
|
RN1962TE85LFTRANS 2NPN PREBIAS 0.5W US6 |
6,608 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 50 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 500mW | - | - | Surface Mount | US6 |
Bipolar Transistor Arrays, Pre-Biased Electronic Components
Frequently Asked Questions
Q1: What products are included in Bipolar Transistor Arrays, Pre-Biased?
This category includes related Bipolar Transistor Arrays, Pre-Biased subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Bipolar Transistor Arrays, Pre-Biased components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Bipolar Transistor Arrays, Pre-Biased and other electronic components.
