Bipolar Transistor Arrays, Pre-Biased
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMC4AT148TRANS PREBIAS NPN/PNP 50V SC74A |
3,138 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Not For New Designs | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms, 10kOhms | 47kOhms, 47kOhms | 68 @ 5mA, 5V | 300mV @ 10mA, 500µA / 300mV @ 5mA, 250µA | - | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
|
IMD23T108TRANS PREBIAS NPN/PNP 50V SC74 |
4,569 |
|
- |
- | SC-74, SOT-457 | Tape & Reel (TR) | Not For New Designs | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA, 500mA | 50V | 1kOhms, 10kOhms | 10kOhms, 10kOhms | 56 @ 50mA, 5V / 30 @ 5mA, 5V | 300mV @ 50mA, 2.5mA / 300mV @ 10mA, 500µA | - | 200MHz, 250MHz | 300mW | - | - | Surface Mount | SMT6 |
|
EMF21-7TRANS NPN PREBIAS/PNP SOT563 |
3,429 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 1 NPN Pre-Biased, 1 PNP | 100mA, 500mA | 50V, 12V | 10kOhms | 10kOhms | 30 @ 5mA, 5V / 270 @ 10mA, 2V | 300mV @ 500µA, 10mA / 250mV @ 10mA, 200mA | 500nA | 250MHz, 280MHz | 300mW | - | - | Surface Mount | SOT-563 |
|
FMA11AT148TRANS PREBIAS DUAL PNP SMT5 |
9,438 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Not For New Designs | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
|
|
RN1965FE(TE85L,F)TRANS 2PNP PREBIAS 0.1W ES6 |
20 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | - | - | Surface Mount | ES6 |
|
XP0431500LTRANS PREBIAS NPN/PNP SMINI6 |
2,904 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 160 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150MHz, 80MHz | 150mW | - | - | Surface Mount | SMINI6-G1 |
|
UMG4N-7TRANS 2NPN PREBIAS 0.15W SOT353 |
8,209 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 100 @ 1mA, 5V | 300mV @ 1mA, 10mA | - | 250MHz | 150mW | - | - | Surface Mount | SOT-353 |
|
EMF8T2RTRANS NPN PREBIAS/NPN 0.15W EMT6 |
6,330 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 1 NPN Pre-Biased, 1 NPN | 100mA, 500mA | 50V, 12V | 47kOhms | 47kOhms | 68 @ 5mA, 5V / 270 @ 10mA, 2V | 300mV @ 500µA, 10mA / 250mV @ 10mA, 200mA | 500nA | 250MHz, 320MHz | 150mW | - | - | Surface Mount | EMT6 |
|

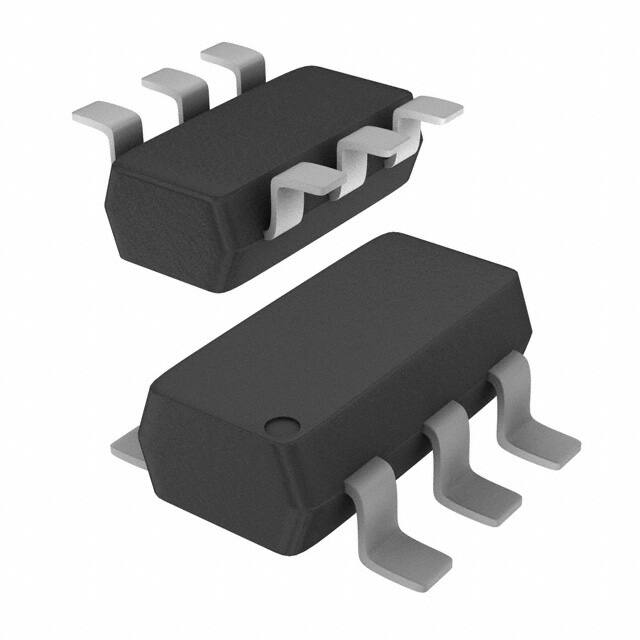

IMB7AT108TRANS 2PNP PREBIAS 0.3W SOT457 |
5,025 |
|
Datasheet |
- | SOT-457 | Tape & Reel (TR) | Not For New Designs | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 100 @ 1mA, 5V | 300mV @ 250µA, 5mA | - | - | 300mW | - | - | Surface Mount | SOT-457 |
|
PBLS2024D,115TRANS PREBIAS 1PNP 1PNP 6TSOP |
4,136 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Last Time Buy | 1 PNP Pre-Biased, 1 PNP | 100mA, 1.8A | 50V, 20V | 22kOhms | 22kOhms | 60 @ 5mA, 5V / 200 @ 1A, 2V | 150mV @ 500µA, 10mA / 210mV @ 100mA, 1.8A | 1µA, 100nA | 130MHz | 760mW | - | - | Surface Mount | 6-TSOP |
|
|
PBLS6024D-QXPBLS6024D-Q/SOT457/SC-74 |
3,607 |
|
- |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 1 NPN Pre-Biased, 1 PNP | 100mA, 1.5A | 50V, 60V | 22kOhms | 22kOhms | 60 @ 5mA, 5V / 180 @ 100mA, 2V | 150mV @ 500µA, 10V / 260mV @ 100mA, 1.5A | 1µA, 100nA | 150MHz | 200mW, 370mW | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
UP03397G0LTRANS PREBIAS NPN/PNP SSMINI5 |
3,626 |
|
Datasheet |
- | SOT-665 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V, 30V | 10kOhms | 10kOhms, 47kOhms | 35 @ 5mA, 10V / 80 @ 5mA, 10V | 250mV @ 300µA, 10mA / 1.2V @ 330µA, 50mA | 500nA | 150MHz, 80MHz | 125mW | - | - | Surface Mount | SSMini5-F3 |
|
|
UP01213G0LTRANS PREBIAS DUAL NPN SSMINI5 |
5,308 |
|
Datasheet |
- | SOT-665 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150MHz | 125mW | - | - | Surface Mount | SSMini5-F3 |
|
UP04210G0LTRANS PREBIAS DUAL NPN SSMINI5 |
5,663 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | - | 160 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150MHz | 125mW | - | - | Surface Mount | SSMini6-F2 |
|
|
UP0431NG0LTRANS PREBIAS NPN/PNP SSMINI6 |
2,391 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150MHz, 80MHz | 125mW | - | - | Surface Mount | SSMini6-F2 |
|
UP0111300LTRANS PREBIAS DUAL PNP SSMINI5 |
8,968 |
|
Datasheet |
- | SOT-665 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 80MHz | 125mW | - | - | Surface Mount | SSMini5-F2 |
|
|
IMB5AT108TRANS PREBIAS 2PNP 50V SC74 |
3,666 |
|
- |
- | SC-74, SOT-457 | Tape & Reel (TR) | Not For New Designs | 2 PNP - Pre-Biased (Dual) | 30mA | 50V | 22kOhms | 22kOhms | 56 @ 5mA, 5V | - | - | - | - | - | - | Surface Mount | SMT6 |
|
DMA961010RTRANS PREBIAS DUAL PNP SSMINI5 |
5,426 |
|
Datasheet |
- | SOT-665 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 35 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini5-F4-B |
|
|
DMC9610M0RTRANS PREBIAS DUAL NPN SSMINI5 |
6,135 |
|
Datasheet |
- | SOT-665 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini5-F4-B |
|
|
DMA9610F0RTRANS PREBIAS DUAL PNP SSMINI5 |
4,395 |
|
Datasheet |
- | SOT-665 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 10kOhms | 30 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini5-F4-B |
