Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFS17W,135RF TRANS NPN 15V 1.6GHZ SOT323-3 |
6,837 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 15V | 1.6GHz | 4.5dB @ 500MHz | - | 300mW | 25 @ 2mA, 1V | 50mA | 175°C (TJ) | - | - | Surface Mount | SC-70 |
|
|
BFS520,135RF TRANS NPN 15V 9GHZ SOT323-3 |
7,910 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 15V | 9GHz | 1.1dB ~ 2.1dB @ 900MHz | - | 300mW | 60 @ 20mA, 6V | 70mA | 175°C (TJ) | - | - | Surface Mount | SC-70 |
|

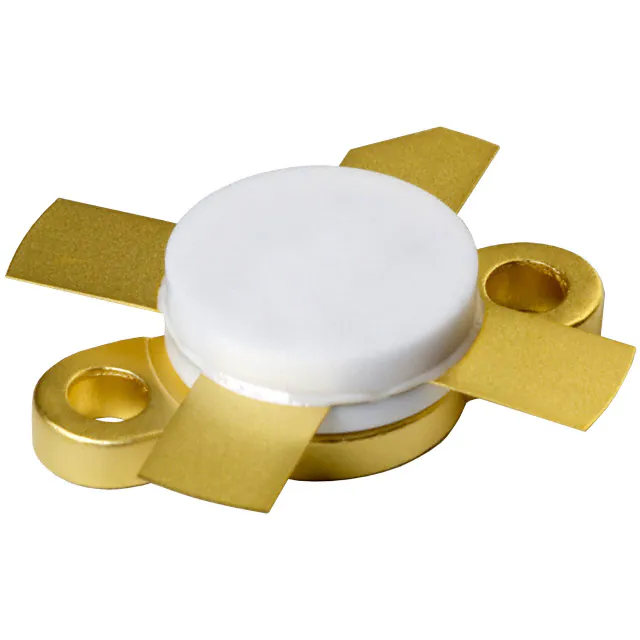

BLW96/01,112RF TRANS NPN 55V 235MHZ CRFM4 |
9,038 |
|
Datasheet |
- | SOT-121B | Tray | Obsolete | NPN | 55V | 235MHz | - | - | 340W | 15 @ 7A, 5V | 12A | 200°C (TJ) | - | - | Chassis Mount | CRFM4 |
|
|
BFR94AW,115RF TRANS NPN 15V 5GHZ SOT323-3 |
3,460 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 15V | 5GHz | 2dB ~ 3dB @ 1GHz ~ 2GHz | - | 300mW | 65 @ 15mA, 10V | 25mA | 150°C (TJ) | - | - | Surface Mount | SC-70 |
|
NE46234-AZRF TRANS NPN 12V 6GHZ SOT89 |
4,186 |
|
Datasheet |
- | TO-243AA | Bulk | Obsolete | NPN | 12V | 6GHz | 2.3dB @ 1GHz | 8.3dB | 1.8W | 50 @ 50mA, 5V | 150mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
NE66219-ARF TRANS NPN 3.3V 21GHZ SOT523 |
8,550 |
|
- |
- | SOT-523 | Bulk | Obsolete | NPN | 3.3V | 21GHz | 1.2dB @ 2GHz | 14dB | 115mW | 60 @ 5mA, 2V | 35mA | 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
|
NE66219-T1-ARF TRANS NPN 3.3V 21GHZ SOT523 |
4,195 |
|
- |
- | SOT-523 | Tape & Reel (TR) | Obsolete | NPN | 3.3V | 21GHz | 1.2dB @ 2GHz | 14dB | 115mW | 60 @ 5mA, 2V | 35mA | 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
NE68030-T1-R44-ARF TRANS NPN 10V 10GHZ SOT323 |
9,322 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 10V | 10GHz | 1.9dB @ 2GHz | 9.4dB | 150mW | 80 @ 5mA, 3V | 35mA | 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
NE68033-T1B-R44-ARF TRANS NPN 10V 10GHZ SOT23 |
8,029 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 10V | 10GHz | 1.8dB @ 2GHz | 9dB | 200mW | 80 @ 10mA, 6V | 35mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
NE68033-T1B-R45-ARF TRANS NPN 10V 10GHZ SOT23 |
2,178 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 10V | 10GHz | 1.8dB @ 2GHz | 9dB | 200mW | 125 @ 10mA, 6V | 35mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
NE68133-T1B-R33-ARF TRANS NPN 10V 9GHZ SOT23 |
8,803 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 10V | 9GHz | 1.2dB @ 1GHz | 13dB | 200mW | 50 @ 20mA, 8V | 65mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
NE68133-T1B-R34-ARF TRANS NPN 10V 9GHZ SOT23 |
3,481 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 10V | 9GHz | 1.2dB @ 1GHz | 13dB | 200mW | 80 @ 20mA, 8V | 65mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
NE68133-T1B-R35-ARF TRANS NPN 10V 9GHZ SOT23 |
4,995 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 10V | 9GHz | 1.2dB @ 1GHz | 13dB | 200mW | 125 @ 20mA, 8V | 65mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
2SC5501A-4-TR-ERF TRANS NPN 10V 7GHZ 4MCP |
4,535 |
|
Datasheet |
- | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | NPN | 10V | 7GHz | 1dB @ 1GHz | 13dB | 500mW | 90 @ 20mA, 5V | 70mA | 150°C (TJ) | - | - | Surface Mount | 4-MCP |
|
EC3H02BA-TL-HRF TRANS NPN 10V 7GHZ 3-ECSP1006 |
5,688 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Obsolete | NPN | 10V | 7GHz | 1dB @ 1GHz | 8.5dB | 100mW | 120 @ 20mA, 5V | 70mA | 150°C (TJ) | - | - | Surface Mount | ECSP1006-3 |
|
FH102A-TR-ERF TRANS 2 NPN 10V 7GHZ 6MCP |
4,836 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 10V | 7GHz | 1dB @ 1GHz | 12dB | 500mW | 90 @ 20mA, 5V | 70mA | 150°C (TJ) | - | - | Surface Mount | 6-MCP |
|
|
NE46234-SE-AZRF TRANS NPN 12V 6GHZ SOT89 |
5,116 |
|
Datasheet |
- | TO-243AA | Bulk | Obsolete | NPN | 12V | 6GHz | 2.3dB @ 1GHz | 8.3dB | 1.8W | 125 @ 50mA, 5V | 150mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
DSC9F0100LRF TRANS NPN 10V 1.9GHZ SSMINI3 |
9,074 |
|
- |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN | 10V | 1.9GHz | - | - | 125mW | 75 @ 5mA, 4V | 50mA | 150°C (TJ) | - | - | Surface Mount | SSMini3-F3-B |
|
NESG7030M04-ARF TRANS NPN 4.3V 5.8GHZ M04 |
4,023 |
|
- |
- | SOT-343F | Bulk | Obsolete | NPN | 4.3V | 5.8GHz | 0.5dB ~ 0.75dB @ 2GHz ~ 5.8GHz | 14dB ~ 21dB | 125mW | 200 @ 5mA, 2V | 30mA | 150°C (TJ) | - | - | Surface Mount | M04 |
|
2SC5374A-TL-ERF TRANS NPN 10V 5.2GHZ SMCP |
6,892 |
|
- |
- | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | NPN | 10V | 5.2GHz | 1.4dB @ 1GHz | 10.5dB @ 1GHz | 100mW | 110 @ 7mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | SMCP |
