Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

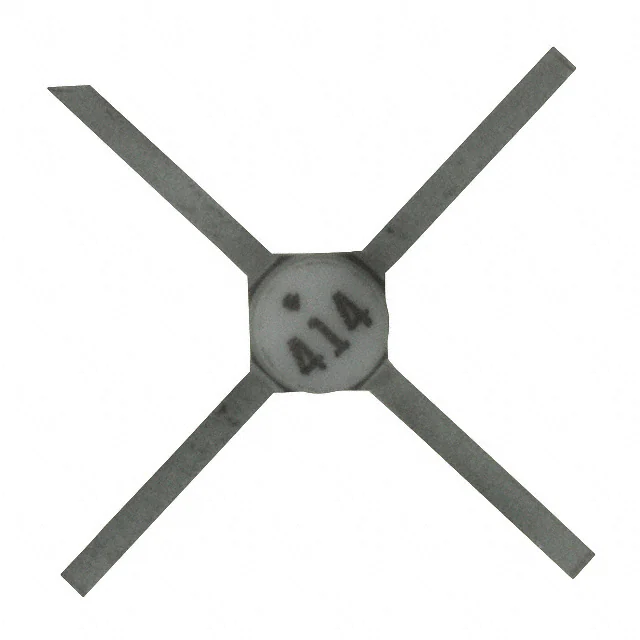

AT-41435GRF TRANS NPN 12V 8GHZ 35 MICRO X |
9,677 |
|
Datasheet |
- | 4-SMD (35 micro-X) | Bulk | Obsolete | NPN | 12V | 8GHz | 1.3dB ~ 3dB @ 1GHz ~ 4GHz | 10dB ~ 18.5dB | 500mW | 30 @ 10mA, 8V | 60mA | 150°C (TJ) | - | - | Surface Mount | 35 micro-X |
|
AT-42035GRF TRANS NPN 12V 8GHZ 35 MICRO X |
7,462 |
|
Datasheet |
- | 4-SMD (35 micro-X) | Bulk | Obsolete | NPN | 12V | 8GHz | 2dB ~ 3dB @ 2GHz ~ 4GHz | 10dB ~ 13.5dB | 600mW | 30 @ 35mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | 35 micro-X |
|
AT-64023RF TRANS NPN 20V 230 MIL BE0 |
6,277 |
|
Datasheet |
- | 4-SMD (230 mil BeO) | Bulk | Obsolete | NPN | 20V | - | - | - | 3W | 20 @ 110mA, 8V | 200mA | 200°C (TJ) | - | - | Surface Mount | 230 mil Be0 |
|
AT-42085GRF TRANS NPN 12V 8GHZ 85 PLASTIC |
7,000 |
|
Datasheet |
- | 4-SMD (85 Plastic) | Bulk | Obsolete | NPN | 12V | 8GHz | 2dB ~ 3.5dB @ 2GHz ~ 4GHz | 9.5dB ~ 13.5dB | 500mW | 30 @ 35mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | 85 Plastic |
|
AT-32011-TR2GRF TRANS NPN 5.5V SOT143 |
6,171 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 1dB ~ 1.3dB @ 900MHz | 12.5dB ~ 14dB | 200mW | 70 @ 2mA, 2.7V | 32mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
|
AT-30511-TR2GRF TRANS NPN 5.5V SOT143 |
7,854 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 1.1dB ~ 1.4dB @ 900MHz | 14dB ~ 16dB | 100mW | 70 @ 1mA, 2.7V | 8mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
|
AT-31011-TR2GRF TRANS NPN 5.5V SOT143 |
2,757 |
|
- |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 0.9dB ~ 1.2dB @ 900MHz | 11dB ~ 13dB | 150mW | 70 @ 1mA, 2.7V | 16mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
AT-30533-TR2GRF TRANS NPN 5.5V SOT23 |
4,223 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 1.1dB ~ 1.4dB @ 900MHz | 11dB ~ 13dB | 100mW | 70 @ 1mA, 2.7V | 8mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
AT-32032-TR2GRF TRANS NPN 5.5V SC70-3 |
2,845 |
|
- |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 1dB ~ 1.3dB @ 900MHz | 13.5dB ~ 15dB | 200mW | 70 @ 5mA, 2.7V | 40mA | 150°C (TJ) | - | - | Surface Mount | SC-70-3 |
|
|
AT-41511-TR2GRF TRANS NPN 12V SOT143 |
7,558 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | NPN | 12V | - | 1dB ~ 1.7dB @ 900MHz ~ 2.4GHz | 11dB ~ 15.5dB | 225mW | 30 @ 5mA, 5V | 50mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
|
AT-41533-TR2GRF TRANS NPN 12V SOT23 |
3,253 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 12V | - | 1dB ~ 1.6dB @ 900MHz ~ 2.4GHz | 9dB ~ 14.5dB | 225mW | 30 @ 5mA, 5V | 50mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
AT-42086-TR2GRF TRANS NPN 12V 8GHZ 86 PLASTIC |
7,593 |
|
Datasheet |
- | SOT-86 | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 1.9dB ~ 3.5dB @ 2GHz ~ 4GHz | 9dB ~ 13dB | 500mW | 30 @ 35mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | 86 Plastic |
|
|
AT-41486-TR2GRF TRANS NPN 12V 8GHZ 86 PLASTIC |
2,205 |
|
Datasheet |
- | SOT-86 | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 1.4dB ~ 3dB @ 1GHz ~ 4GHz | 9dB ~ 18dB | 500mW | 30 @ 10mA, 8V | 60mA | 150°C (TJ) | - | - | Surface Mount | 86 Plastic |
|
|
AT-32033-TR2GRF TRANS NPN 5.5V SOT23 |
2,249 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 1dB ~ 1.3dB @ 900MHz | 11dB ~ 12.5dB | 200mW | 70 @ 2mA, 2.7V | 32mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
AT-31033-TR2GRF TRANS NPN 5.5V SOT23 |
2,629 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 0.9dB ~ 1.2dB @ 900MHz | 9dB ~ 11dB | 150mW | 70 @ 1mA, 2.7V | 16mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
AT-32063-TR2GRF TRANS 2 NPN 5.5V SOT363 |
4,399 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 5.5V | - | 1.1dB ~ 1.4dB @ 900MHz | 12.5dB ~ 14.5dB | 150mW | 50 @ 5mA, 2.7V | 32mA | 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
AT-41532-TR2GRF TRANS NPN 12V SC70-3 |
4,109 |
|
- |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 12V | - | 1dB ~ 1.9dB @ 900MHz ~ 2.4GHz | 9dB ~ 15.5dB | 225mW | 30 @ 5mA, 5V | 50mA | 150°C (TJ) | - | - | Surface Mount | SC-70-3 |
|
|
AT-41486-TR1GRF TRANS NPN 12V 8GHZ 86 PLASTIC |
5,346 |
|
Datasheet |
- | SOT-86 | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 1.4dB ~ 3dB @ 1GHz ~ 4GHz | 9dB ~ 18dB | 500mW | 30 @ 10mA, 8V | 60mA | 150°C (TJ) | - | - | Surface Mount | 86 Plastic |
|
AT-42086-TR1GRF TRANS NPN 12V 8GHZ 86 PLASTIC |
4,406 |
|
Datasheet |
- | SOT-86 | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 1.9dB ~ 3.5dB @ 2GHz ~ 4GHz | 9dB ~ 13dB | 500mW | 30 @ 35mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | 86 Plastic |
|
|
AT-42036-TR1GRF TRANS NPN 12V 8GHZ 36 MICRO X |
3,990 |
|
Datasheet |
- | 4-SMD (36 micro-X) | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 2dB ~ 3dB @ 2GHz ~ 4GHz | 10dB ~ 13.5dB | 600mW | 30 @ 35mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | 36 micro-X |
