Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLS3135-50,114RF TRANS NPN 75V 3.5GHZ CDFM2 |
6,285 |
|
Datasheet |
- | SOT-422A | Tray | Obsolete | NPN | 75V | 3.5GHz | - | 8dB | 80W | 40 @ 1.5A, 5V | 6A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|
|
BLS3135-65,114RF TRANS NPN 75V 3.5GHZ CDFM2 |
9,067 |
|
Datasheet |
- | SOT-422A | Tray | Obsolete | NPN | 75V | 3.5GHz | - | 7dB | 200W | 40 @ 2A, 5V | 8A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|
RX1214B300Y,114RF TRANS NPN 60V 1.4GHZ CDFM2 |
8,482 |
|
Datasheet |
- | SOT-439A | Tray | Obsolete | NPN | 60V | 1.4GHz | - | 8dB | 570W | - | 21A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|
AT-42086-BLKGRF TRANS NPN 12V 8GHZ 86 PLASTIC |
5,211 |
|
Datasheet |
- | SOT-86 | Bulk | Obsolete | NPN | 12V | 8GHz | 1.9dB ~ 3.5dB @ 2GHz ~ 4GHz | 9dB ~ 13dB | 500mW | 30 @ 35mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | 86 Plastic |
|

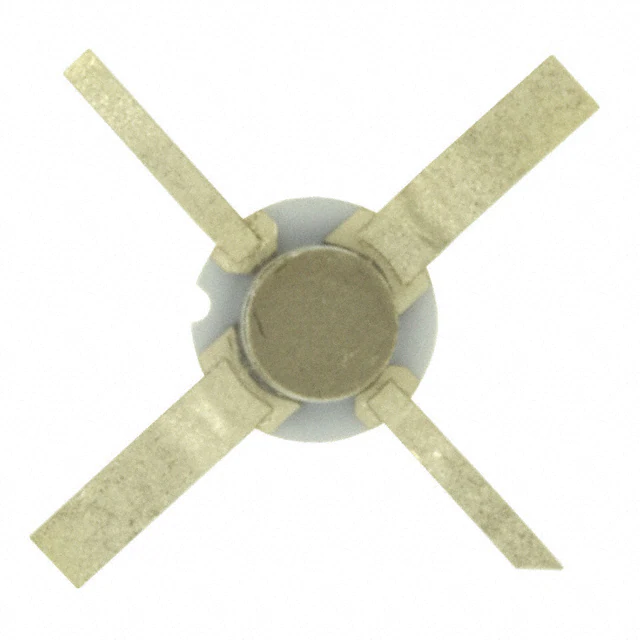

AT-64020RF TRANS NPN 20V 200SMD |
6,607 |
|
Datasheet |
- | 4-SMD (200 mil BeO) | Bulk | Obsolete | NPN | 20V | - | - | - | 3W | 20 @ 110mA, 8V | 200mA | 200°C (TJ) | - | - | Surface Mount | - |
|
AT-42036-BLKGRF TRANS NPN 12V 8GHZ 36 MICRO X |
7,404 |
|
Datasheet |
- | 4-SMD (36 micro-X) | Bulk | Obsolete | NPN | 12V | 8GHz | 2dB ~ 3dB @ 2GHz ~ 4GHz | 10dB ~ 13.5dB | 600mW | 30 @ 35mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | 36 micro-X |
|
|
AT-42010RF TRANS NPN 12V 8GHZ 100SMD |
7,199 |
|
Datasheet |
- | 4-SMD (100 mil) | Bulk | Obsolete | NPN | 12V | 8GHz | 1.9dB ~ 3dB @ 2GHz ~ 4GHz | 10dB ~ 13.5dB | 600mW | 30 @ 35mA, 8V | 80mA | 200°C (TJ) | - | - | Surface Mount | - |
|
AT-42070RF TRANS NPN 12V 8GHZ 70 MIL PKG |
3,782 |
|
Datasheet |
- | 4-SMD (70 mil) | Bulk | Obsolete | NPN | 12V | 8GHz | 1.9dB ~ 3dB @ 2GHz ~ 4GHz | 10.5dB ~ 14dB | 600mW | 30 @ 35mA, 8V | 80mA | 200°C (TJ) | - | - | Surface Mount | 70 mil Package |
|
|
AT-41586-BLKGRF TRANS NPN 12V 8GHZ 86 PLASTIC |
3,317 |
|
Datasheet |
- | SOT-86 | Bulk | Obsolete | NPN | 12V | 8GHz | 1.4dB ~ 3dB @ 1GHz ~ 4GHz | 8dB ~ 17dB | 500mW | 30 @ 10mA, 8V | 60mA | 150°C (TJ) | - | - | Surface Mount | 86 Plastic |
|
AT-32063-BLKGRF TRANS 2 NPN 5.5V SOT363 |
3,236 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 2 NPN (Dual) | 5.5V | - | 1.1dB ~ 1.4dB @ 900MHz | 12.5dB ~ 14.5dB | 150mW | 50 @ 5mA, 2.7V | 32mA | 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
AT-41532-BLKGRF TRANS NPN 12V SC70-3 |
4,230 |
|
- |
- | SC-70, SOT-323 | Bulk | Obsolete | NPN | 12V | - | 1dB ~ 1.9dB @ 900MHz ~ 2.4GHz | 9dB ~ 15.5dB | 225mW | 30 @ 5mA, 5V | 50mA | 150°C (TJ) | - | - | Surface Mount | SC-70-3 |
|
AT-31033-BLKGRF TRANS NPN 5.5V SOT23 |
9,445 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | NPN | 5.5V | - | 0.9dB ~ 1.2dB @ 900MHz | 9dB ~ 11dB | 150mW | 70 @ 1mA, 2.7V | 16mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
AT-30533-BLKGRF TRANS NPN 5.5V SOT23 |
8,532 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | NPN | 5.5V | - | 1.1dB ~ 1.4dB @ 900MHz | 11dB ~ 13dB | 100mW | 70 @ 1mA, 2.7V | 8mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
AT-32033-BLKGRF TRANS NPN 5.5V SOT23 |
4,329 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | NPN | 5.5V | - | 1dB ~ 1.3dB @ 900MHz | 11dB ~ 12.5dB | 200mW | 70 @ 2mA, 2.7V | 32mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
AT-30511-BLKGRF TRANS NPN 5.5V SOT143 |
2,046 |
|
Datasheet |
- | TO-253-4, TO-253AA | Bulk | Obsolete | NPN | 5.5V | - | 1.1dB ~ 1.4dB @ 900MHz | 14dB ~ 16dB | 100mW | 70 @ 1mA, 2.7V | 8mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
|
AT-41511-BLKGRF TRANS NPN 12V SOT143 |
3,245 |
|
Datasheet |
- | TO-253-4, TO-253AA | Bulk | Obsolete | NPN | 12V | - | 1dB ~ 1.7dB @ 900MHz ~ 2.4GHz | 11dB ~ 15.5dB | 225mW | 30 @ 5mA, 5V | 50mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
|
AT-32011-BLKGRF TRANS NPN 5.5V SOT143 |
8,089 |
|
Datasheet |
- | TO-253-4, TO-253AA | Bulk | Obsolete | NPN | 5.5V | - | 1dB ~ 1.3dB @ 900MHz | 12.5dB ~ 14dB | 200mW | 70 @ 2mA, 2.7V | 32mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
|
AT-31011-BLKGRF TRANS NPN 5.5V SOT143 |
4,711 |
|
- |
- | TO-253-4, TO-253AA | Bulk | Obsolete | NPN | 5.5V | - | 0.9dB ~ 1.2dB @ 900MHz | 11dB ~ 13dB | 150mW | 70 @ 1mA, 2.7V | 16mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
|
AT-32032-BLKGRF TRANS NPN 5.5V SC70-3 |
5,288 |
|
- |
- | SC-70, SOT-323 | Bulk | Obsolete | NPN | 5.5V | - | 1dB ~ 1.3dB @ 900MHz | 13.5dB ~ 15dB | 200mW | 70 @ 5mA, 2.7V | 40mA | 150°C (TJ) | - | - | Surface Mount | SC-70-3 |
|
|
AT-41533-BLKGRF TRANS NPN 12V SOT23 |
2,308 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | NPN | 12V | - | 1dB ~ 1.6dB @ 900MHz ~ 2.4GHz | 9dB ~ 14.5dB | 225mW | 30 @ 5mA, 5V | 50mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
