Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DME375ARF TRANS NPN 55V 1.15GHZ 55AW |
3,562 |
|
Datasheet |
- | 55AW | Bulk | Obsolete | NPN | 55V | 1.025GHz ~ 1.15GHz | - | 6.5dB | 375W | 10 @ 300mA, 5V | 30A | 200°C (TJ) | - | - | Chassis Mount | 55AW |
|
PH3134-30SRF TRANS NPN 65V |
3,360 |
|
- |
- | - | Tray | Active | NPN | 65V | - | - | 7.5dB | 30W | - | 3.6A | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
PH3135-25STRANSISTOR,25W,3.1-3.5GHZ,2US,10 |
4,117 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 65V | 3.5GHz | - | 7.5dB | 195W | - | 3A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
PH2729-25MRF TRANS NPN 60V |
8,506 |
|
Datasheet |
- | - | Tray | Active | NPN | 60V | - | - | 9.2dB | 70W | - | 4A | 200°C (TJ) | - | - | Chassis Mount | - |
|
BFY193PZZZA1RF TRANS NPN 12V 7.5GHZ MICRO X1 |
4,180 |
|
Datasheet |
- | MICRO-X1 | Box | Obsolete | NPN | 12V | 7.5GHz | 2.3dB ~ 2.9dB @ 2GHz | 12.5dB ~ 13.5dB | 580mW | 50 @ 30mA, 8V | 80mA | 200°C (TJ) | - | - | Surface Mount | MICRO-X1 |
|
|
JTDB25RF TRANS NPN 55V 1.215GHZ 55AW-1 |
9,383 |
|
Datasheet |
- | 55AW-1 | Bulk | Obsolete | NPN | 55V | 960MHz ~ 1.215GHz | - | 7.5dB | 97W | 20 @ 500mA, 5V | 5A | 200°C (TJ) | - | - | Chassis Mount | 55AW-1 |
|
|
TAN250ARF TRANS NPN 60V 1.215GHZ 55AW |
8,373 |
|
Datasheet |
- | 55AW | Bulk | Obsolete | NPN | 60V | 960MHz ~ 1.215GHz | - | 6.2db ~ 7dB | 575W | 10 @ 1A, 5V | 30A | 200°C (TJ) | - | - | Chassis Mount | 55AW |
|
|
PH3135-5MTRANSISTOR,BIPOLAR,5W,3.10-3.50_ |
3,718 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 60V | 3.5GHz | - | 8.5dB | 50W | - | 700mA | 200°C | - | - | Chassis Mount | - |
|
|
0910-60MRF TRANS NPN 65V 1GHZ 55AW |
7,472 |
|
Datasheet |
- | 55AW | Bulk | Obsolete | NPN | 65V | 890MHz ~ 1GHz | - | 8dB ~ 8.5dB | 180W | - | 8A | 200°C (TJ) | - | - | Chassis Mount | 55AW |
|
|
TAN300RF TRANS NPN 65V 1.215GHZ 55KT |
8,205 |
|
Datasheet |
- | 55KT | Bulk | Obsolete | NPN | 65V | 960MHz ~ 1.215GHz | - | 6.6dB | 1166W | 10 @ 1mA, 5V | 20A | 200°C (TJ) | - | - | Chassis Mount | 55KT |
|

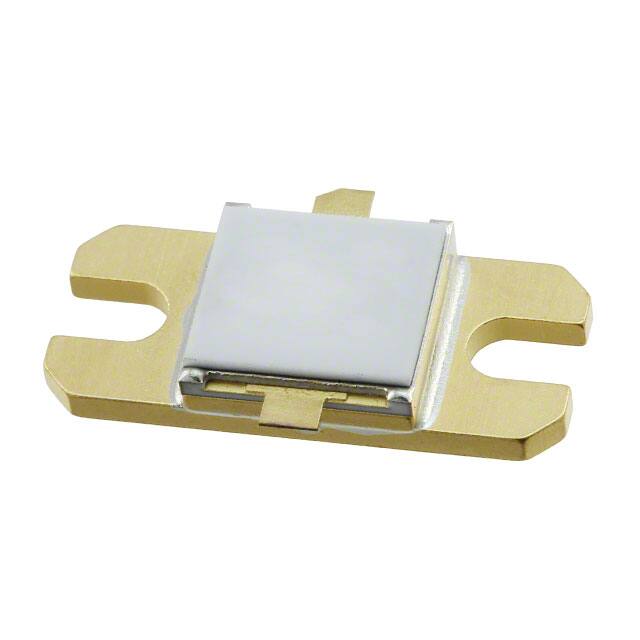

PH3135-5SRF TRANS NPN 60V |
8,608 |
|
Datasheet |
- | - | Tray | Active | NPN | 60V | - | - | 8.5dB | 5W | - | 750mA | 200°C (TJ) | - | - | - | - |
|
|
PH1214-25MTRANSISTOR,BIPOLAR,25W,28V,1.20- |
8,428 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 70V | - | - | 9.5dB | 67W | - | 2.8A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
|
SRF4116TRANSISTOR,1025-1150MHZ,50V,350P |
6,316 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DME400ATRANSISTOR BIPO 55AW-1 |
4,297 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PH1090-75LRF TRANS NPN 70V |
8,538 |
|
Datasheet |
- | - | Tray | Active | NPN | 70V | - | - | 10.70dB ~ 10.81dB | 75W | - | 6A | 200°C (TJ) | - | - | Chassis Mount | - |
|
MAPR-002731-115M00RF TRANS NPN 65V |
3,801 |
|
Datasheet |
- | - | Tray | Obsolete | NPN | 65V | - | - | 8.06dB ~ 8.45dB | 115W | - | - | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
PH1214-40MTRANSISTOR,40W,40V,1.20-1.40GHZ |
7,389 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 70V | - | - | 8.5dB | 100W | - | 3A | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
TPR700RF TRANS NPN 65V 1.09GHZ 55KT |
7,543 |
|
Datasheet |
- | 55KT | Bulk | Obsolete | NPN | 65V | 1.03GHz ~ 1.09GHz | - | 6.7dB | 2050W | 10 @ 1A, 5V | 55A | 200°C (TJ) | - | - | Chassis Mount | 55KT |
|
|
1214-220MRF TRANS NPN 70V 1.4GHZ 55ST |
5,550 |
|
Datasheet |
- | 55ST | Bulk | Obsolete | NPN | 70V | 1.2GHz ~ 1.4GHz | - | 7.4dB | 700W | 10 @ 1A, 5V | 20A | 200°C (TJ) | - | - | Chassis Mount | 55ST |
|
|
PH3134-10MTRANSISTOR,BIPOLAR,RADAR,10W,3.1 |
3,121 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 60V | - | - | 8dB | 70W | - | 1.2A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
