Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN2N2857UBRF TRANS NPN 15V 0.04A UB |
9,568 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Obsolete | NPN | 15V | - | 4.5dB @ 450MHz | 21dB | 200mW | 30 @ 3mA, 1V | 40mA | -65°C ~ 200°C (TJ) | - | - | Surface Mount | UB |
|
|
MS1402RF TRANS NPN 16V 512MHZ M122 |
8,884 |
|
- |
- | M122 | Bulk | Obsolete | NPN | 16V | 450MHz ~ 512MHz | - | 10dB | 5W | 20 @ 100mA, 5V | 750mA | 200°C (TJ) | - | - | Chassis Mount | M122 |
|
MRF1000MBRF TRANS NPN 20V 332A-03 |
5,715 |
|
Datasheet |
- | 332A-02 | Tray | Active | NPN | 20V | - | - | 10.7dB ~ 12dB | 700mW | 10 @ 100mA, 5V | 200mA | - | - | - | Chassis Mount | 332A-03, Style 2 |
|
SD1405RF TRANS NPN 18V M174 |
7,923 |
|
Datasheet |
- | M174 | Box | Obsolete | NPN | 18V | - | - | 13dB | 270W | 20 @ 5A, 5V | 20A | 200°C (TJ) | - | - | Surface Mount | M174 |
|
|
MS1226RF TRANS NPN 36V 30MHZ M113 |
4,472 |
|
Datasheet |
- | M113 | Bulk | Obsolete | NPN | 36V | 30MHz | - | 18dB | 80W | 10 @ 500mA, 5V | 4.5A | 200°C (TJ) | - | - | Chassis Mount | M113 |
|
|
MS1512RF TRANS NPN 25V 860MHZ M122 |
4,591 |
|
- |
- | M122 | Bulk | Obsolete | NPN | 25V | 860MHz | - | 10dB | 19.4W | - | 1.2A | 200°C (TJ) | - | - | Chassis, Stud Mount | M122 |
|
SD1274RF TRANS NPN 16V M135 |
7,541 |
|
Datasheet |
- | M135 | Box | Obsolete | NPN | 16V | - | - | 10dB | 70W | 20 @ 250mA, 5V | 8A | 200°C (TJ) | - | - | Surface Mount | M135 |
|
|
SD1275RF TRANS NPN 16V M135 |
5,930 |
|
Datasheet |
- | M135 | Box | Obsolete | NPN | 16V | - | - | 9dB | 70W | 20 @ 250mA, 5V | 8A | 200°C (TJ) | - | - | Chassis, Stud Mount | M135 |
|
|
JANTX2N2857UBRF TRANS NPN 15V 0.04A UB |
5,027 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Obsolete | NPN | 15V | - | 4.5dB @ 450MHz | 21dB | 200mW | 30 @ 3mA, 1V | 40mA | -65°C ~ 200°C (TJ) | - | - | Surface Mount | UB |
|
MRF1090MBRF TRANS NPN 70V 332A-03 |
5,347 |
|
Datasheet |
- | 332A-03 | Tray | Active | NPN | 70V | - | - | 10.8dB | 90W | 10 @ 2.5A, 5V | 6A | - | - | - | Chassis Mount | 332A-03, Style 1 |
|
SD1477RF TRANS NPN 18V M111 |
9,655 |
|
Datasheet |
- | M111 | Tray | Obsolete | NPN | 18V | - | - | 6dB | 270W | 10 @ 5A, 5V | 20A | 200°C (TJ) | - | - | Surface Mount | M111 |
|

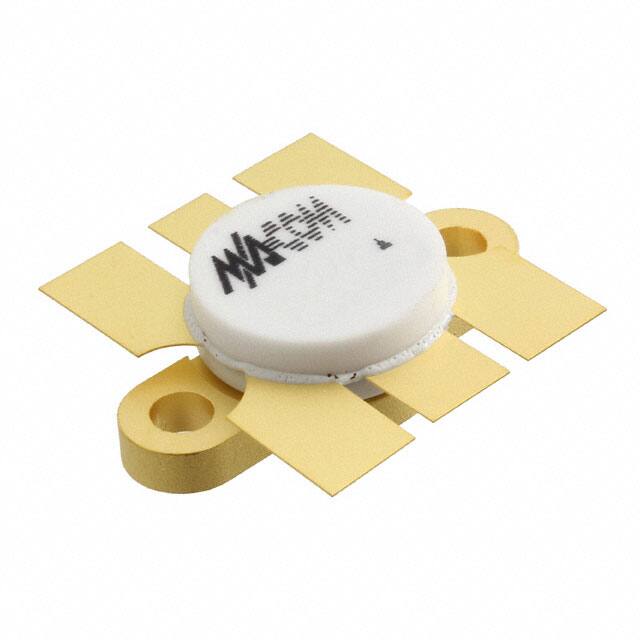

MRF316TRANS RF NPN 35V 9A 316-01 |
6,234 |
|
Datasheet |
- | 316-01 | Tray | Active | NPN | 35V | - | - | 13dB | 80W | 10 @ 4A, 5V | 9A | - | - | - | Chassis Mount | 316-01, STYLE 1 |
|
MRF429TRANS RF NPN 50V 16A 211-11 |
8,207 |
|
Datasheet |
- | 211-11, Style 2 | Tray | Active | NPN | 50V | - | - | 15dB | 150W | 10 @ 5A, 5V | 16A | - | - | - | Chassis Mount | 211-11, Style 2 |
|
|
JANTXV2N2857UBRF TRANS NPN 15V 0.04A UB |
4,333 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Obsolete | NPN | 15V | - | 4.5dB @ 450MHz | 21dB | 200mW | 30 @ 3mA, 1V | 40mA | -65°C ~ 200°C (TJ) | - | - | Surface Mount | UB |
|
|
MS1336RF TRANS NPN 18V 175MHZ M135 |
3,045 |
|
- |
- | M135 | Bulk | Obsolete | NPN | 18V | 175MHz | - | 10dB | 70W | 20 @ 250mA, 5V | 8A | 200°C (TJ) | - | - | Chassis, Stud Mount | M135 |
|
|
MS1261RF TRANS NPN 18V 175MHZ M122 |
8,226 |
|
- |
- | M122 | Bulk | Obsolete | NPN | 18V | 175MHz | - | 12dB | 34W | 20 @ 250mA, 5V | 2.5A | 200°C (TJ) | - | - | Chassis, Stud Mount | M122 |
|
MRF313TRANS RF NPN 30V 150MA 305A-01 |
5,995 |
|
Datasheet |
- | 305A-01 | Tray | Active | NPN | 30V | 2.5GHz | - | 16dB | 1W | 20 @ 100mA, 10V | 150mA | - | - | - | Chassis Mount | 305A-01, Style 1 |
|
|
SD1731RF TRANS NPN 55V M174 |
3,300 |
|
Datasheet |
- | M174 | Tray | Obsolete | NPN | 55V | - | - | 13dB | 233W | 15 @ 10A, 6V | 20A | 200°C (TJ) | - | - | Surface Mount | M174 |
|
|
SD1726RF TRANS NPN 55V M174 |
4,514 |
|
Datasheet |
- | M174 | Tray | Obsolete | NPN | 55V | - | - | 14dB | 318W | 18 @ 1.4A, 6V | 20A | 200°C (TJ) | - | - | Surface Mount | M174 |
|
MRF321RF TRANS NPN 33V 244-04 |
2,668 |
|
Datasheet |
- | 244-04 | Tray | Active | NPN | 33V | - | - | 13dB | 10W | 20 @ 500mA, 5V | 1.1A | - | - | - | Chassis Mount | 244-04, STYLE 1 |
