Automotive Relays

Mfr. Part #	Availability	Quantity	Datasheet	Series	Packaging	Product Status	Coil Type	Coil Current	Coil Voltage	Contact Form	Contact Rating (Current)	Switching Voltage	Must Operate Voltage	Must Release Voltage	Operate Time	Release Time	Features	Mounting Type	Termination Style	Operating Temperature
A2F1CSQ48VDC1.6 RELAY AUTOMOTIVE SPDT 40A 48V CIT Relay and Switch	0	RFQ	Datasheet	A2	Tray	Active	Non Latching	33.3 mA	48VDC	SPDT (1 Form C)	40 A	75VDC - Max	33.6 VDC	4.8 VDC	7 ms	5 ms	Sealed - Fully	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C

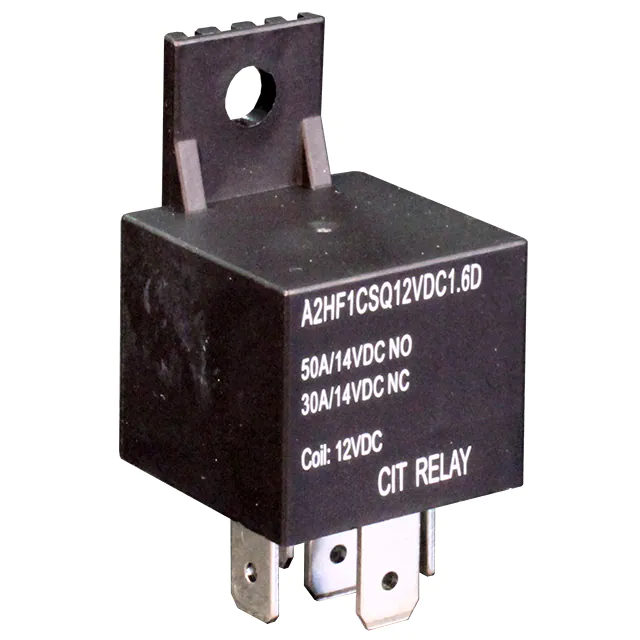

A2HF1CSQ12VDC1.6D RELAY AUTOMOTIVE SPDT 50A 12V CIT Relay and Switch	0	RFQ	Datasheet	A2H	Tray	Active	Non Latching	133.3 mA	12VDC	SPDT (1 Form C)	50 A	75VDC - Max	7.8 VDC	1.2 VDC	10 ms	10 ms	Diode, Sealed - Fully	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C
AZ9731-1C-12DC1R1 RELAY AUTOMOTIVE SPDT 30A 12V American Zettler	14	RFQ	Datasheet	AZ9731	Tray	Active	Non Latching	133.3 mA	12VDC	SPDT (1 Form C)	30 A	75VDC - Max	7.8 VDC	1.8 VDC	7 ms	5 ms	MINI-ISO w/ Steel Mounting Bracket, Resistor	Chassis Mount	Plug In, Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C
PC792C-1C-C-12C-N-X RELAY AUTOMOTIVE SPDT 50A 12V Picker Components	0	RFQ	Datasheet	-	Bag	Active	Non Latching	150 mA	12VDC	SPDT (1 Form C)	50 A	75VDC - Max	7.8 VDC	1.2 VDC	7 ms	2 ms	-	Socketable	Plug In, Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C
A2S1CSQ48VDC1.6R RELAY AUTOMOTIVE SPDT 40A 48V CIT Relay and Switch	0	RFQ	Datasheet	A2	Tray	Active	Non Latching	33.3 mA	48VDC	SPDT (1 Form C)	40 A	75VDC - Max	33.6 VDC	4.8 VDC	7 ms	5 ms	Resistor, Sealed - Fully	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C
ACNM5112 CNM RELAY (TH,1C) Panasonic Electric Works	0	RFQ	Datasheet	ACNM	Tube	Active	Non Latching	53.3 mA	12VDC	SPDT (1 Form C)	30 A	14VDC - Nom	7.2 VDC	1 VDC	10 ms	10 ms	-	Through Hole	PC Pin	-40°C ~ 110°C
CA1A-12V-N-5 RELAY AUTOMOTIVE SPST 30A 12V Panasonic Electric Works	12	RFQ	Datasheet	CA	Bulk	Active	Non Latching	150 mA	12VDC	SPST-NO (1 Form A)	30 A	16VDC - Max	8 VDC	0.6 VDC	10 ms	10 ms	-	Chassis Mount	Plug In	-30°C ~ 80°C
A2K1ASQ24VDC1.6 RELAY AUTOMOTIVE SPST 120A 24V CIT Relay and Switch	0	RFQ	Datasheet	A2K	Tray	Active	Non Latching	66.7 mA	24VDC	SPST-NO (1 Form A)	60 A	110VDC - Max	15.6 VDC	2.4 VDC	15 ms	15 ms	Magnetic Blowout, Sealed - Fully	Socketable	Plug In, Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C
1-1414167-0 POWER F V23134 TE Connectivity AMP Connectors	0	RFQ	Datasheet	-	Bulk	Active	Non Latching	-	24VDC	SPDT (1 Form C)	20 A	-	16 VDC	4 VDC	7 ms	2 ms	-	Socketable	Plug In	-40°C ~ 125°C
PC775-1A-24C-X RELAY AUTOMOTIVE SPST 75A 24V Picker Components	0	RFQ	Datasheet	PC775	Tray	Active	Non Latching	120 mA	24VDC	SPST-NO (1 Form A)	75 A	32VDC - Max	15.6 VDC	4.8 VDC	7 ms	5 ms	IP54 - Dust Protected, Water Resistant	Chassis Mount	Screw Terminal	-40°C ~ 125°C
AEV14024 RELAY AUTOMOTIVE SPST 120A 24V Panasonic Electric Works	1	RFQ	Datasheet	EV	Box	Active	Non Latching	176 mA	24VDC	SPST-NO (1 Form A)	120 A	450VDC - Nom	18 VDC	2 VDC	50 ms	30 ms	-	Chassis Mount	Screw Terminal	-40°C ~ 80°C
AEV52012 RELAY AUTOMOTIVE SPST 20A 12V Panasonic Electric Works	0	RFQ	Datasheet	AEV	Bulk	Active	Non Latching	327 mA	12VDC	SPST-NO (1 Form A)	20 A	400VDC - Nom	9 VDC	0.5 VDC	50 ms	30 ms	-	Chassis Mount	Plug In, Quick Connect - 0.250" (6.3mm)	-40°C ~ 80°C

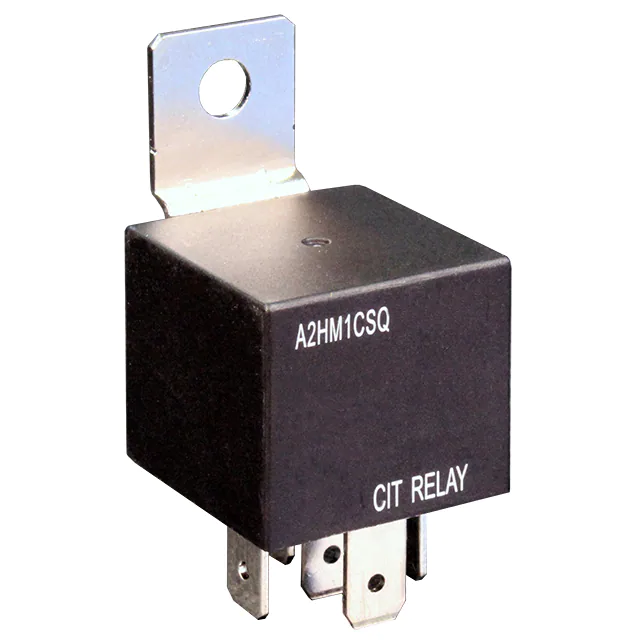

A2HM1CSQ24VDC1.6R RELAY AUTOMOTIVE SPDT 50A 24V CIT Relay and Switch	3	RFQ	Datasheet	A2H	Tray	Active	Non Latching	75 mA	24VDC	SPDT (1 Form C)	50 A	75VDC - Max	15.6 VDC	2.4 VDC	10 ms	10 ms	Resistor, Sealed - Fully	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C

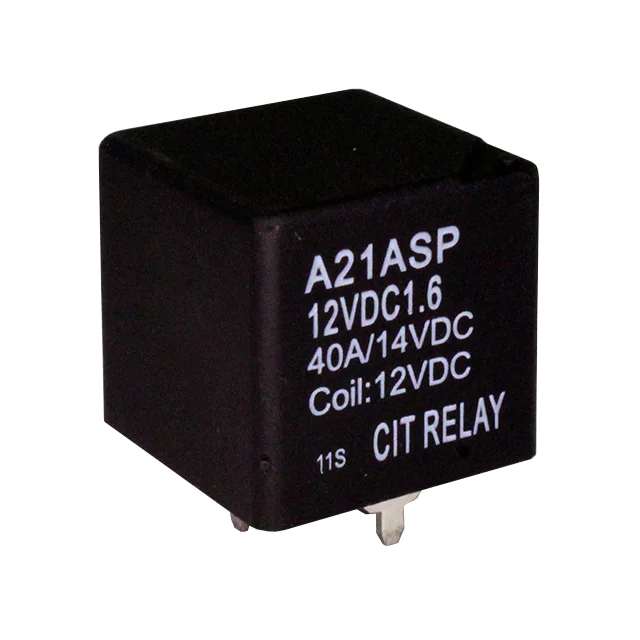

A21ASP12VDC1.6R RELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch	5	RFQ	Datasheet	A2	Tray	Active	Non Latching	133.3 mA	12VDC	SPST-NO (1 Form A)	40 A	75VDC - Max	8.4 VDC	1.2 VDC	7 ms	5 ms	Resistor, Sealed - Fully	Through Hole	PC Pin	-40°C ~ 125°C
A21ASP12VDC1.6D RELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch	0	RFQ	Datasheet	A2	Tray	Active	Non Latching	133.3 mA	12VDC	SPST-NO (1 Form A)	40 A	75VDC - Max	8.4 VDC	1.2 VDC	7 ms	5 ms	Diode, Sealed - Fully	Through Hole	PC Pin	-40°C ~ 125°C
A11CSP24VDC1.2R RELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch	25	RFQ	Datasheet	A1	Tube	Active	Non Latching	50 mA	24VDC	SPDT (1 Form C)	30 A	75VDC - Max	18 VDC	2.4 VDC	10 ms	7 ms	Resistor, Sealed - Fully	Through Hole	PC Pin	-40°C ~ 85°C

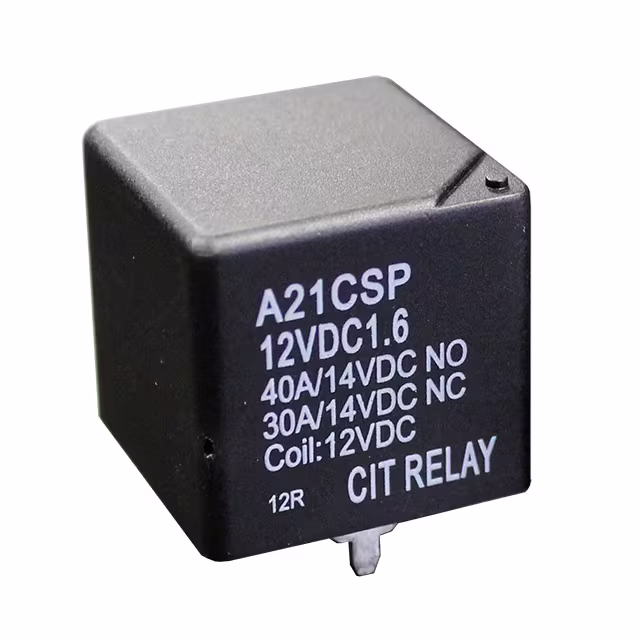

A21CSP12VDC1.6R RELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch	0	RFQ	Datasheet	A2	Tray	Active	Non Latching	133.3 mA	12VDC	SPDT (1 Form C)	40 A	75VDC - Max	8.4 VDC	1.2 VDC	7 ms	5 ms	Resistor, Sealed - Fully	Through Hole	PC Pin	-40°C ~ 125°C
AZ9731-1A-12DC4 RELAY AUTOMOTIVE SPST 40A 12V American Zettler	0	RFQ	Datasheet	AZ9731	Tray	Active	Non Latching	133.3 mA	12VDC	SPST-NO (1 Form A)	40 A	75VDC - Max	7.8 VDC	1.8 VDC	7 ms	5 ms	MINI-ISO, Shrouded w/ Steel Bracket	Chassis Mount	Plug In, Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C
A21CSQ48VDC1.6 RELAY AUTOMOTIVE SPDT 40A 48V CIT Relay and Switch	0	RFQ	Datasheet	A2	Tray	Active	Non Latching	33.3 mA	48VDC	SPDT (1 Form C)	40 A	75VDC - Max	33.6 VDC	4.8 VDC	7 ms	5 ms	Sealed - Fully	Socketable	Plug In, Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C

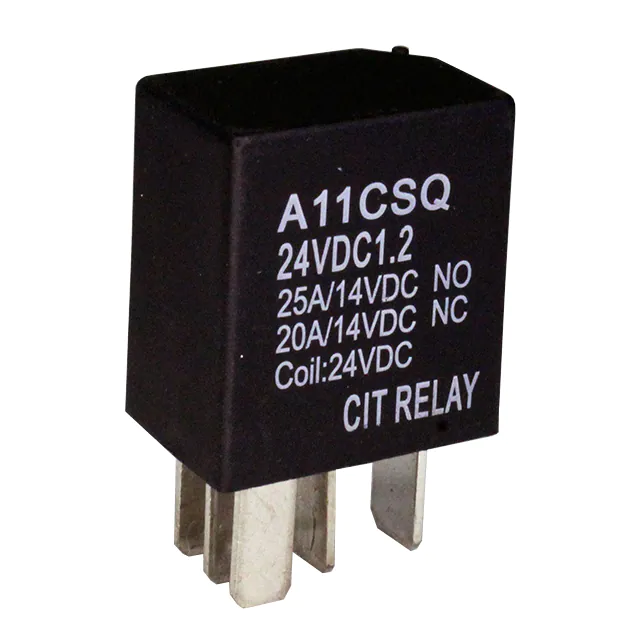

A11CSQ24VDC1.2R RELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch	0	RFQ	Datasheet	A1	Tube	Active	Non Latching	50 mA	24VDC	SPDT (1 Form C)	30 A	75VDC - Max	18 VDC	2.4 VDC	10 ms	7 ms	Resistor, Sealed - Fully	Socketable	Plug In, Quick Connect - 0.187" (4.7mm)	-40°C ~ 85°C

Total 1882 Record«Prev 1... 34 35 36 373839 40 41...95 Next»

Automotive Relays Electronic Components

Explore Automotive Relays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
