Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC776-1X-24S-D-XRELAY AUTOMOTIVE SPST 130A 24V |
10 |
|
Datasheet |
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-24S-R-XRELAY AUTOMOTIVE SPST 130A 24V |
10 |
|
Datasheet |
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
05903500RELAY24V.100A |
33 |
|
Datasheet |
- | Box | Active | Non Latching | - | - | - | 100 A | 24VDC - Max | - | - | - | - | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud | -40°C ~ 100°C |
|
|
K1157163ADR / GGVS 87-3-3000 |
17 |
|
Datasheet |
87, KISSLING | Bulk | Active | Latching, Dual Coil | 3 A | 24VDC | SPST-NO (1 Form A) | 300 A | - | - | - | - | - | Diode | Chassis Mount | Connector | -40°C ~ 85°C |
|
880107SD RELAY DUAL POLE |
2 |
|
Datasheet |
SD | Bulk | Active | Latching, Single Coil | - | 12VDC | DPST-NO (2 Form A) | 300 A | 12VDC - Nom | - | - | - | - | - | Chassis Mount | Stud | -40°C ~ 85°C |
|
1-1414310-0RELAY AUTOMOTIVE SPST 40A 12V |
55 |
|
Datasheet |
- | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 45 A | - | 6.9 VDC | 1.2 VDC | - | - | - | - | - | -40°C ~ 85°C |
|
|
9-1414992-1RELAY GEN PURPOSE SPST 25A 12V |
0 |
|
Datasheet |
VFMA | Tray | Obsolete | Non Latching | 100.8 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | - | - | Resistor | Socketable | Quick Connect - 0.187"/0.250" | -40°C ~ 125°C |
|
CB1-R-24VRELAY AUTOMOTIVE SPDT 20A 24V |
49 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AH-T-P-12VCB RELAY HR 1 FORM A 12V |
59 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
5601-24PT Series 30 A Time Delay Relay, |
12 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5-1393302-8Power/Signal Relay, 1 Form C, SP |
22 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7421-24BRelay, 160 Amp / 24V, Bulk |
15 |
|
Datasheet |
TH Series | Bulk | Active | Non Latching | 170 mA | 24VDC | SPST-NO (1 Form A) | 160 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud, Wire Leads | - |
|
|
7422-24BRelay, 2x80 Amp / 24V, Bulk |
15 |
|
Datasheet |
TH Series | Bulk | Active | Non Latching | 85 mA | 24VDC | DPST-NO (2 Form A) | 80 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud, Wire Leads | - |
|
|
7610-24BAutomatic Charging Relay Plus - |
15 |
|
Datasheet |
- | Bulk | Active | Non Latching | 170 mA | 24VDC | SPST-NO (1 Form A) | 160 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud | - |
|
|
7612-24BAutomatic Charging Relay Plus - |
15 |
|
Datasheet |
- | Bulk | Active | Non Latching | 85 mA | 24VDC | DPST-NO (2 Form A) | 80 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud | - |
|

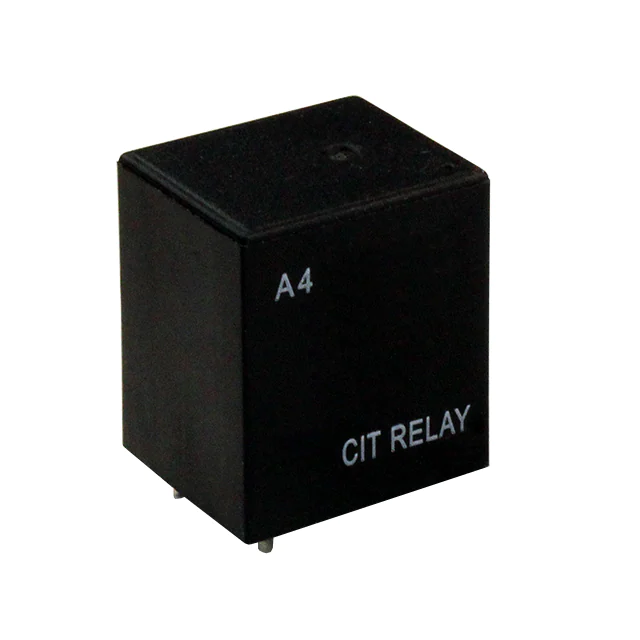

A41CS24VDCRELAY AUTOMOTIVE SPDT 20A 24V |
0 |
|
Datasheet |
A4 | Tube | Active | Non Latching | 41.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

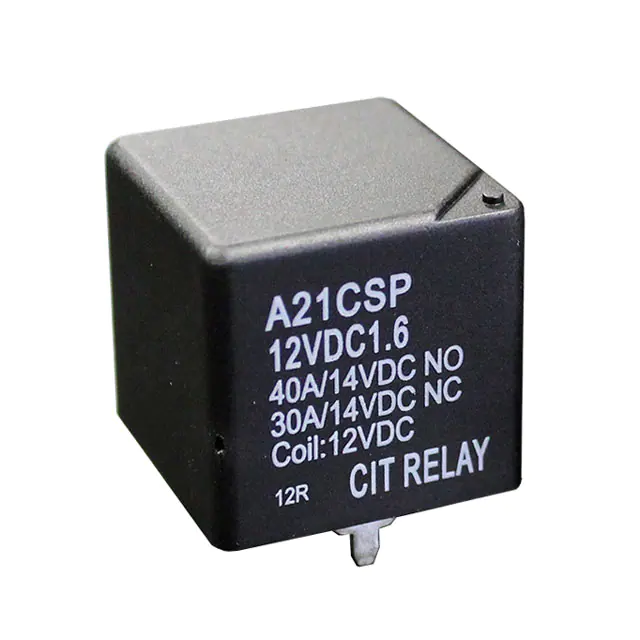

A21CSP12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

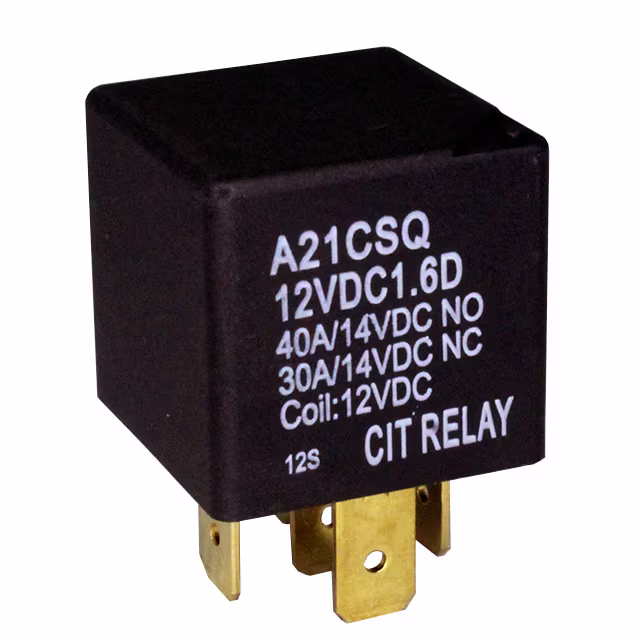

A21CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CB1-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

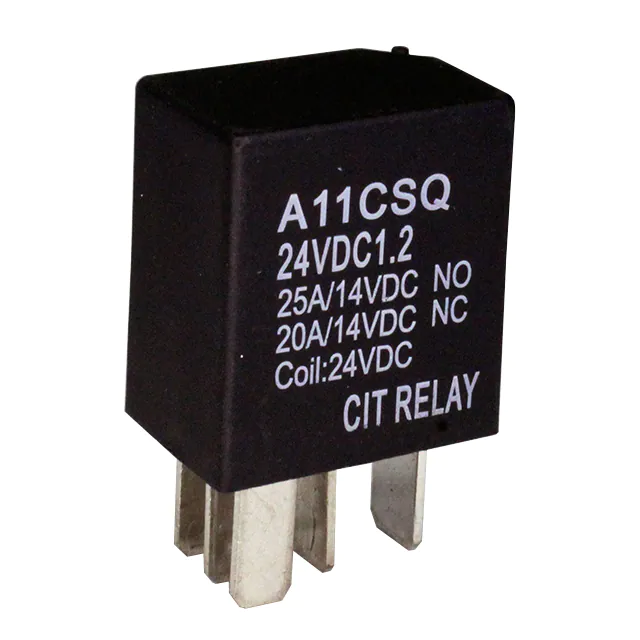

A11CSQ24VDC1.2RELAY AUTOMOTIVE SPDT 30A 24V |
0 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
Automotive Relays Electronic Components
Explore Automotive Relays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
