Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRCH12D78BNP-220MCINDUCT ARRAY 2 COIL 22UH SMD |
0 |
|
Datasheet |
CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 3.3 A | 1.6 A | 7 A | 3.5 A | 48mOhm Max | 192mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-221MCINDUCT ARRAY 2 COIL 220UH SMD |
0 |
|
Datasheet |
CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 220 µH | 880 µH | ±20% | 1 A | 480 mA | 2.1 A | 1.05 A | 468mOhm Max | 1.87Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-330MCINDUCT ARRAY 2 COIL 33UH SMD |
0 |
|
Datasheet |
CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | 2.7 A | 1.3 A | 5.5 A | 2.75 A | 72mOhm Max | 290mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-331MCINDUCT ARRAY 2 COIL 330UH SMD |
0 |
|
Datasheet |
CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 µH | 1.32 mH | ±20% | 830 mA | 400 mA | 1.7 A | 850 mA | 675mOhm Max | 2.7Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-470MCINDUCT ARRAY 2 COIL 47UH SMD |
0 |
|
Datasheet |
CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | 2.4 A | 1.1 A | 4.6 A | 2.3 A | 93mOhm Max | 372mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-471MCINDUCT ARRAY 2 COIL 470UH SMD |
0 |
|
Datasheet |
CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 470 µH | 1.88 mH | ±20% | 670 mA | 310 mA | 1.5 A | 750 mA | 1.005Ohm Max | 4.02Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-4R7NCINDUCT ARRAY 2 COIL 4.7UH SMD |
0 |
|
Datasheet |
CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±30% | 5.4 A | 2.8 A | 13.2 A | 6.6 A | 20mOhm Max | 80mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-680MCINDUCT ARRAY 2 COIL 68UH SMD |
0 |
|
Datasheet |
CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 2 A | 940 mA | 3.9 A | 1.95 A | 133mOhm Max | 532mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-6R8NCINDUCT ARRAY 2 COIL 6.8UH SMD |
0 |
|
Datasheet |
CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 5 A | 2.6 A | 12 A | 6 A | 23mOhm Max | 92mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
DRQ125-151-RINDUCT ARRAY 2 COIL 151.1UH SMD |
0 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 151.1 µH | 604.4 µH | ±20% | 1.48 A | 739 mA | 1.81 A | 905 mA | 248mOhm | 991mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DRQ125-2R2-RINDUCT ARRAY 2 COIL 2.208UH SMD |
0 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.208 µH | 8.832 µH | ±20% | 10.9 A | 5.46 A | 15 A | 7.5 A | 4.5mOhm | 18.2mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

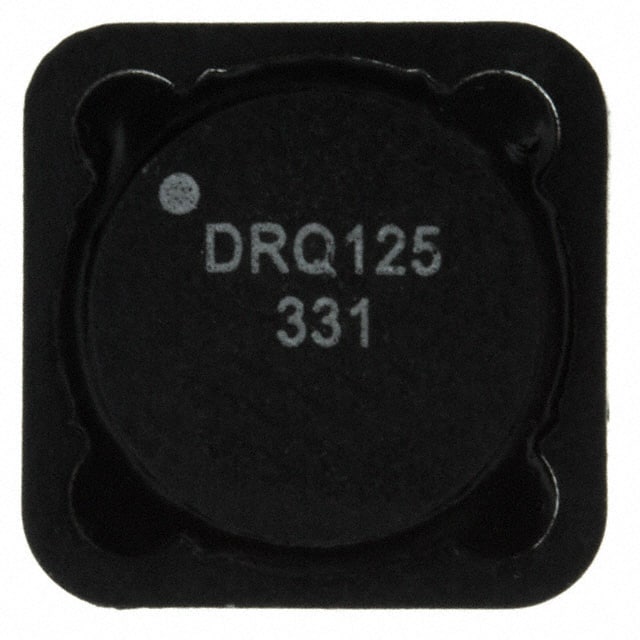

DRQ125-331-RINDUCT ARRAY 2 COIL 332.6UH SMD |
0 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 332.6 µH | 1.33 mH | ±20% | 1.06 A | 530 mA | 1.22 A | 610 mA | 482mOhm | 1.93Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

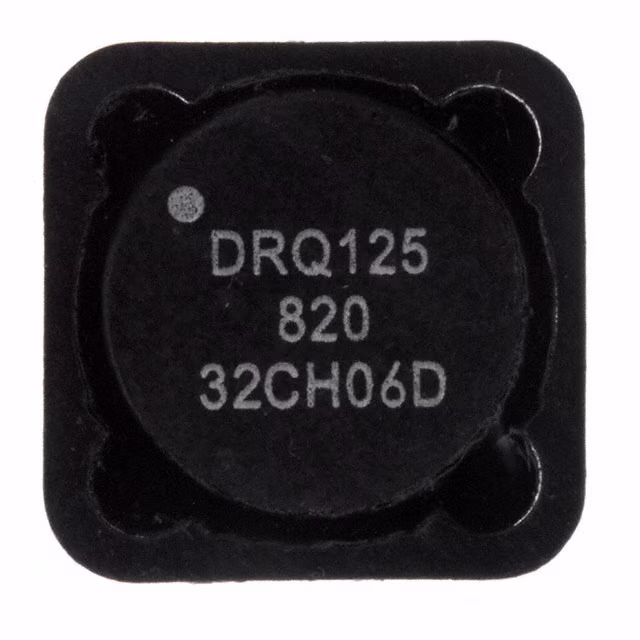

DRQ125-820-RINDUCT ARRAY 2 COIL 86.89UH SMD |
0 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 86.89 µH | 347.6 µH | ±20% | 2.05 A | 1.03 A | 2.39 A | 1.2 A | 128mOhm | 515mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DRQ125-821-RINDUCT ARRAY 2 COIL 828UH SMD |
0 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 828 µH | 3.312 mH | ±20% | 600 mA | 301 mA | 770 mA | 385 mA | 1.49Ohm | 5.96Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PF0552.473NLTINDUCT ARRAY 2 COIL 47UH SMD |
0 |
|
Datasheet |
PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 190 µH | ±20% | 3.2 A | 1.7 A | 3.2 A | 1.6 A | 69mOhm Max | 270mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.154NLTINDUCT ARRAY 2 COIL 150UH SMD |
0 |
|
Datasheet |
PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 600 µH | ±20% | 1.8 A | 880 mA | 1.8 A | 910 mA | 230mOhm Max | 930mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.683NLTINDUCT ARRAY 2 COIL 68UH SMD |
0 |
|
Datasheet |
PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 270 µH | ±20% | 2.7 A | 1.4 A | 2.7 A | 1.4 A | 100mOhm Max | 400mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.103NLTINDUCT ARRAY 2 COIL 9.7UH SMD |
0 |
|
Datasheet |
PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.7 µH | 39 µH | ±20% | 6 A | 3 A | 7.2 A | 3.6 A | 19mOhm Max | 73mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.471NLTINDUCT ARRAY 2 COIL 490NH SMD |
0 |
|
Datasheet |
PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 490 nH | 2 µH | ±20% | 14.2 A | 7.1 A | 33 A | 16.4 A | 1.6mOhm Max | 6.4mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.823NLTINDUCT ARRAY 2 COIL 84UH SMD |
0 |
|
Datasheet |
PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 84 µH | 330 µH | ±20% | 2.4 A | 1.2 A | 2.4 A | 1.2 A | 130mOhm Max | 530mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
