Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CL-1-2INDUCT ARRAY 2 COIL 18MH CHA MNT |
0 |
|
Datasheet |
CL | Nonstandard | Box | Active | 2 | 18 mH | 72 mH | - | 2 A | 1 A | - | - | 350mOhm | 1.4Ohm | Unshielded | - | - | Chassis Mount | 2.874" L x 1.752" W (73.00mm x 44.50mm) | 2.311" (58.70mm) |
|
CL-4-8INDUCT ARRAY 2 COIL 5MH CHA MNT |
0 |
|
Datasheet |
CL | Nonstandard | Box | Active | 2 | 5 mH | 20 mH | - | 8 A | 4 A | - | - | 75mOhm | 300mOhm | Unshielded | - | - | Chassis Mount | 3.000" L x 2.874" W (76.20mm x 73.00mm) | 2.500" (63.50mm) |
|
PF0553.333NLINDUCT ARRAY 2 COIL 34UH SMD |
0 |
|
Datasheet |
PF0553NL | Nonstandard | Tray | Active | 2 | 34 µH | 135 µH | ±20% | 3.2 A | 1.6 A | 6.2 A | 3.1 A | 59mOhm Max | 240mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
PF0552.222NLINDUCT ARRAY 2 COIL 2.2UH SMD |
0 |
|
Datasheet |
PF0552NL | Nonstandard | Tray | Active | 2 | 2.2 µH | 8.8 µH | ±20% | 11.1 A | 5.6 A | 15 A | 7.5 A | 3.9mOhm Max | 16mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.152NLINDUCT ARRAY 2 COIL 1.5UH SMD |
10 |
|
Datasheet |
PF0552NL | Nonstandard | Tray | Active | 2 | 1.5 µH | 5.9 µH | ±20% | 12.4 A | 6.2 A | 18.4 A | 9.2 A | 2.9mOhm Max | 12mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
744889020330INDUCT ARRAY 2 COIL 33UH SMD |
0 |
|
Datasheet |
WE-MTCI | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | - | ±20% | 0.45 A | - | 0.75 A | - | 3.2Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
4448R-124LINDUCT ARRAY 2 COIL 50UH SMD |
0 |
|
Datasheet |
4448R | Nonstandard | Tape & Reel (TR) | Active | 2 | 50 µH | 200 µH | ±15% | 1.5 A | 750 mA | - | - | 111mOhm Max | 444mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.530" L x 0.530" W (13.46mm x 13.46mm) | 0.310" (7.87mm) |
|
SRF0703A-221MINDUCT ARRAY 2 COIL 220UH SMD |
0 |
|
Datasheet |
SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 220 µH | 922.6 µH | ±20% | 520 mA | 260 mA | 530 mA | 270 mA | 1.48Ohm Max | 5.5Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-331MINDUCT ARRAY 2 COIL 330UH SMD |
0 |
|
Datasheet |
SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 µH | 1.335 mH | ±20% | 420 mA | 211 mA | 440 mA | 220 mA | 2.16Ohm Max | 8.25Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
DRAQ75-470-RIND DRAQ75 47UH SMT SHLD |
0 |
|
- |
DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47.4 µH | 189.6 µH | ±25% | 1.57 A | 785 mA | - | - | 252mOhm Max | 1.08Ohm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
|
SCRHB125-1016INDUCT ARRAY 2 COIL 7.1UH SMD |
0 |
|
- |
SCRHB125 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCRHB125-1220INDUCT ARRAY 2 COIL 9.4UH SMD |
0 |
|
- |
SCRHB125 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCRHB125-6822INDUCT ARRAY 2 COIL 5.5UH SMD |
0 |
|
- |
SCRHB125 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCRHB125-8220INDUCT ARRAY 2 COIL 6.5UH SMD |
0 |
|
- |
SCRHB125 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

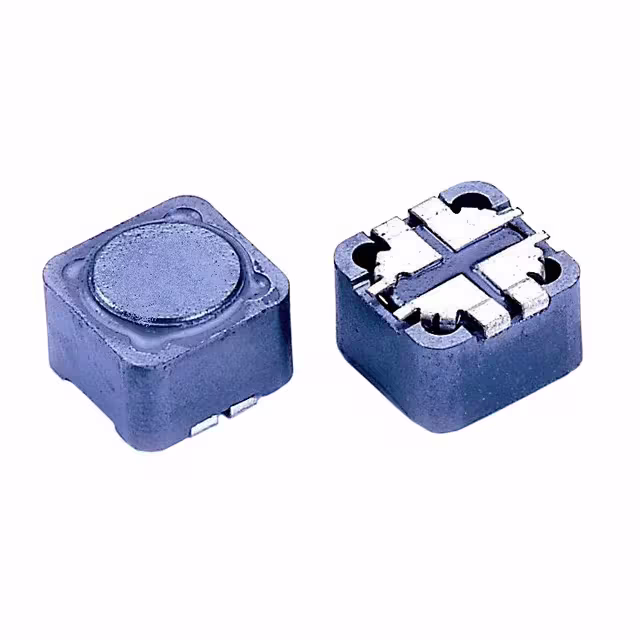

SCRHB127-1022INDUCT ARRAY 2 COIL 8.7UH SMD |
0 |
|
- |
SCRHB127 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCRHB127-1042INDUCT ARRAY 2 COIL 9.4UH SMD |
0 |
|
- |
SCRHB127 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

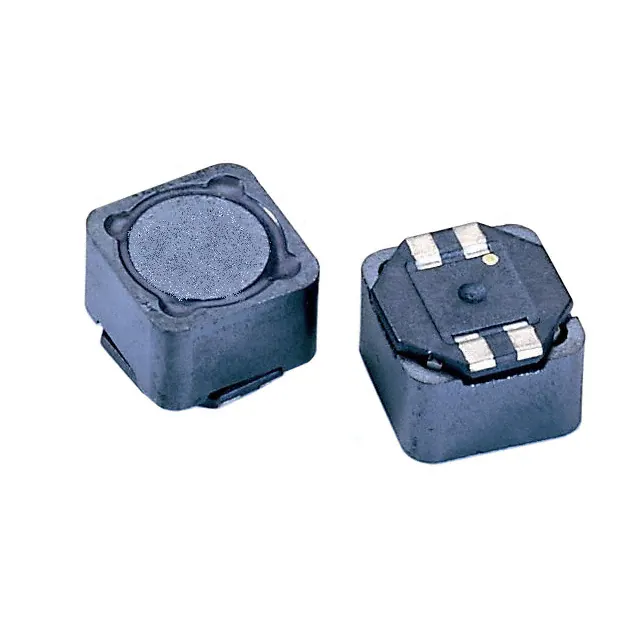

SCRHB127B-1042INDUCT ARRAY 2 COIL 9.4UH SMD |
0 |
|
- |
SCRHB127 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DRAQ75-100-RIND DRAQ75 10UH SMT SHLD |
0 |
|
- |
DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.59 µH | 38.34 µH | ±25% | 3.47 A | 1.73 A | - | - | 52mOhm Max | 208mOhm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
|
|
DRAQ75-8R5-RIND DRAQ75 8.5UH SMT SHLD |
0 |
|
- |
DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.47 µH | 33.86 µH | ±25% | 3.57 A | 1.79 A | - | - | 49mOhm Max | 196mOhm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
|
|
DRAQ75-810-RIND DRAQ75 81UH SMT SHLD |
0 |
|
- |
DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 80.9 µH | 323.78 µH | ±25% | 1.2 A | 600 mA | - | - | 431mOhm Max | 1.72Ohm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
