Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0552.822NLINDUCT ARRAY 2 COIL 8.1UH SMD |
60 |
|
Datasheet |
PF0552NL | Nonstandard | Tray | Active | 2 | 8.1 µH | 32 µH | ±20% | 6.5 A | 3.3 A | 7.8 A | 3.9 A | 18mOhm Max | 66mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
P0183NLINDUCT ARRAY 2 COIL 91UH SMD |
72 |
|
Datasheet |
Polecat | Nonstandard | Tube | Active | 2 | 91 µH | 364 µH | ±10% | 1.2 A | 640 mA | - | - | 324mOhm Max | 1.272Ohm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
DJ-503INDUCT ARRAY 2 COIL 25UH T/H |
64 |
|
Datasheet |
DJ | Radial | Tray | Active | 2 | 25 µH | 100 µH | ±15% | 6 A | 3 A | - | - | 13mOhm Max | 52mOhm Max | Unshielded | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.531" W (26.50mm x 13.50mm) | 1.161" (29.50mm) |
|
|
HM78D-1210100MLFTRINDUCT ARRAY 2 COIL 10UH SMD |
99 |
|
Datasheet |
HM78D | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | 2 | 10 µH | 41.12 µH | ±20% | 3.2 A | 1.6 A | 11.75 A | 5.85 A | 20mOhm Max | 80mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
P0177NLINDUCT ARRAY 2 COIL 10.4UH SMD |
0 |
|
Datasheet |
Polecat | Nonstandard | Tube | Active | 2 | 10.4 µH | 41.7 µH | ±10% | 3.8 A | 1.89 A | - | - | 29.8mOhm Max | 120mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
CTCTXF33-2P32.67 UH 20% SMD TOROID CMC |
77 |
|
Datasheet |
CTCTXF-2P | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | 2 | 32.67 µH | 130.7 µH | ±20% | 1.3 A | 650 mA | - | - | 126mOhm Max | 503mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.449" L x 0.449" W (11.40mm x 11.40mm) | 0.272" (6.90mm) |
|

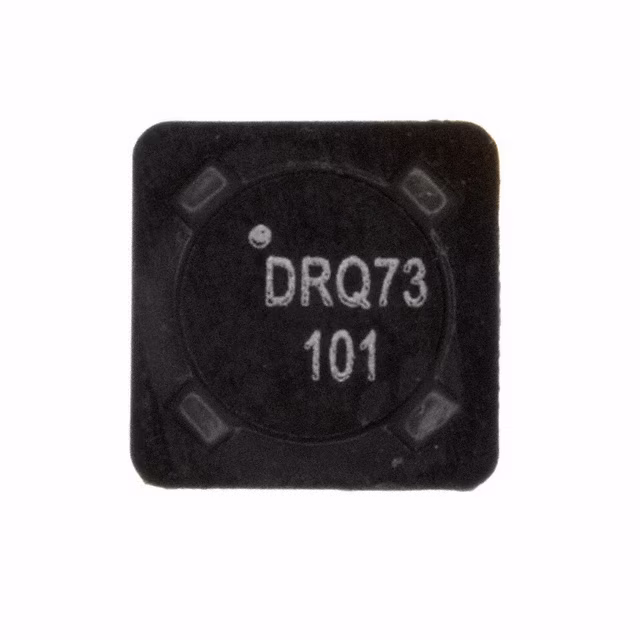

DRQ73-101-RINDUCT ARRAY 2 COIL 101.4UH SMD |
0 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 101.4 µH | 405.6 µH | ±20% | 730 mA | 367 mA | 790 mA | 390 mA | 527mOhm | 2.11Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF1280-6R8YINDUCT ARRAY 2 COIL 6.8UH SMD |
0 |
|
Datasheet |
SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 7.34 A | 3.67 A | 13.3 A | 6.67 A | 18.3mOhm Max | 65.6mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
7448709100INDUCT ARRAY 2 COIL 10UH SMD |
23 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 5 µH | 20 µH | ±20% | 3.2 A | 1.6 A | 8 A | 4 A | 40mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
PF0553.223NLINDUCT ARRAY 2 COIL 23UH SMD |
5 |
|
Datasheet |
PF0553NL | Nonstandard | Tray | Active | 2 | 23 µH | 92 µH | ±20% | 3.9 A | 2 A | 7.6 A | 3.8 A | 39mOhm Max | 160mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
SRF1260-330MINDUCT ARRAY 2 COIL 33UH SMD |
0 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | 3.28 A | 1.64 A | 3.84 A | 1.92 A | 61.8mOhm Max | 256mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
PM3604-10-RCINDUCT ARRAY 2 COIL 10UH SMD |
0 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 110mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
SRF1280A-1R5YINDUCT ARRAY 2 COIL 1.5UH SMD |
0 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | 6 µH | ±30% | 13.5 A | 6.77 A | 31.1 A | 15.6 A | 7.6mOhm Max | 30.6mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
IHCL4040DZER4R7M5AINDUCT ARRAY 2 COIL 4.7UH SMD |
0 |
|
Datasheet |
IHCL | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.157" (4.00mm) |
|
SDQ12-6R2-RINDUCT ARRAY 2 COIL 6.25UH SMD |
0 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.25 µH | 25 µH | ±20% | 1.02 A | 512 mA | 1.22 A | 608 mA | 238.7mOhm | 954.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
SDQ25-101-RINDUCT ARRAY 2 COIL 98.57UH SMD |
0 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 98.57 µH | 394.3 µH | ±20% | 499 mA | 249 mA | 405 mA | 203 mA | 1Ohm | 4.02Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
CTX50-4A-RINDUCT ARRAY 2 COIL 50.11UH SMD |
0 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.11 µH | 200.4 µH | ±25% | 2.05 A | 1.03 A | 1.88 A | 940 mA | 104mOhm Max | 418mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

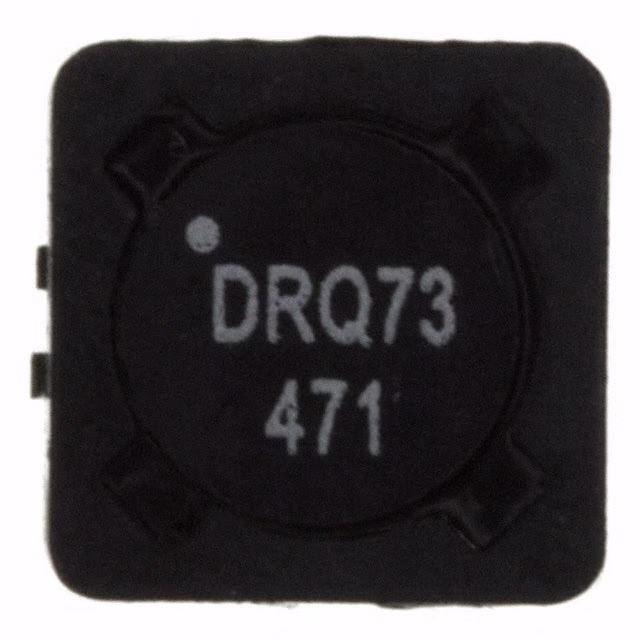

DRQ73-471-RINDUCT ARRAY 2 COIL 465.8UH SMD |
0 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 465.8 µH | 1.863 mH | ±20% | 350 mA | 173 mA | 370 mA | 180 mA | 2.36Ohm | 9.44Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF0703A-8R2MINDUCT ARRAY 2 COIL 8.2UH SMD |
2 |
|
Datasheet |
SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.2 µH | 34.1 µH | ±20% | 2.19 A | 1.1 A | 2.66 A | 1.33 A | 77.2mOhm Max | 306mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-680MINDUCT ARRAY 2 COIL 68UH SMD |
0 |
|
Datasheet |
SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 289.3 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 507mOhm Max | 1.92Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
