Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

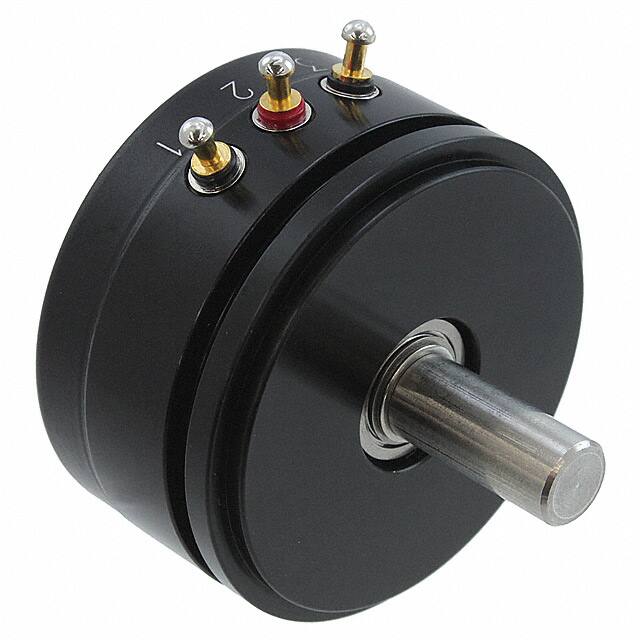

6015-1003-030SENSOR ROTARY 340DEG SLDR TURRET |
0 |
|
Datasheet |
Module | 6015 | Bag | Obsolete | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±0.5% | 10 kOhms | ±10% | - | Custom | Solder Turret | -65°C ~ 125°C | - | - | - |
|
6909-1002-030SENSOR ROTARY 340DEG WIRE LEADS |
0 |
|
Datasheet |
Ring, Wire Leads | 6909 | Bag | Obsolete | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Exposed Element - Rotary | ±0.5% | 5 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
|
6909-1003-030SENSOR ROTARY 340DEG WIRE LEADS |
0 |
|
Datasheet |
Ring, Wire Leads | 6909 | Bag | Obsolete | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Exposed Element - Rotary | ±0.5% | 10 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
|

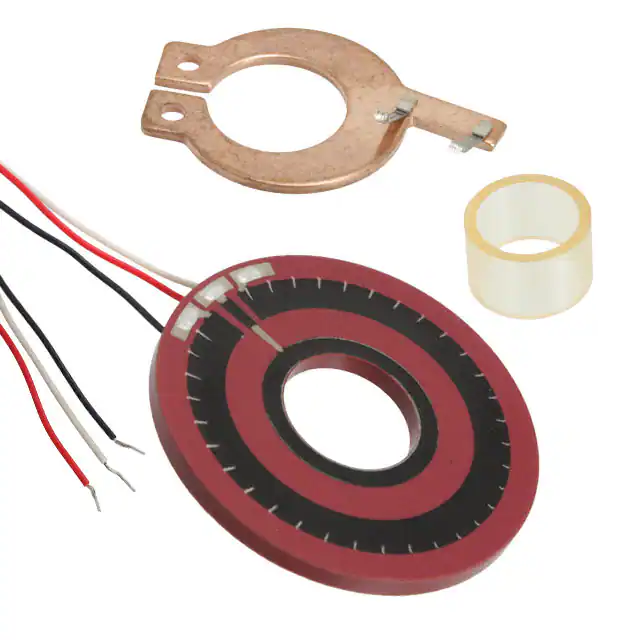

6915-1002-030SENSOR ROTARY 340DEG WIRE LEADS |
0 |
|
Datasheet |
Ring, Wire Leads | 6915 | Bag | Obsolete | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Exposed Element - Rotary | ±0.5% | 5 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
|
RTY090LVEBXSENSOR ROTARY 90DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Counterclockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
MLX90365KDC-ABD-000-TUSENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | Automotive | AEC-Q100 | 8-SOIC |
|
MLX90367KGO-ABS-090-RESENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | SENT | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 16-TSSOP |
|
|
MLX90367LGO-ABS-090-RESENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | SENT | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 16-TSSOP |
|
|
MLX90365EGO-ABD-000-TUSENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 85°C | Automotive | AEC-Q100 | 16-TSSOP |
|
|
MLX90365KGO-ABD-000-TUSENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | Automotive | AEC-Q100 | 16-TSSOP |
|
|
MLX90365LDC-ABD-000-TUSENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 8-SOIC |
|
|
MLX90365LGO-ABD-000-TUSENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 16-TSSOP |
|
640GS103B06NBAYSENSOR ROTARY 360DEG WIRE LEADS |
0 |
|
- |
Box with Wire Leads | 640 | Bulk | Obsolete | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±5% | 10 kOhms | ±15% | - | Chassis Mount | Wire Leads | -40°C ~ 120°C | - | - | - |
|
HRS100SSAB180SENSOR ROTARY 180 DEG SOLDER LUG |
0 |
|
- |
Module, Slotted Shaft | HRS | Bulk | Obsolete | - | Rotary Position | Hall Effect | 0° ~ 180°, 0° ~ 180° | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±4% | - | - | 5V | Panel Mount | Solder Lug | -40°C ~ 85°C | - | - | - |
|
KMA215,118SENSOR ANGLE 180 DEG PC PIN |
0 |
|
Datasheet |
3-SIP Module | - | Tape & Reel (TR) | Obsolete | - | Angle | Magnetoresistive | 0° ~ 180°, 0° ~ 180° | - | Wheatstone Bridge | - | External Magnet, Included | ±1.2% | - | - | 4.5V ~ 5.25V | Through Hole | PC Pin | -40°C ~ 160°C | Automotive | AEC-Q100 | 3-SIP |
|
HRS100SWAB090SENSOR ROTARY 90 DEG WIRE LEADS |
0 |
|
- |
Module, Slotted Shaft | HRS | Box | Obsolete | - | Rotary Position | Hall Effect | 0° ~ 90°, 0° ~ 90° | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±2% | - | - | 5V | Surface Mount | Wire Leads | -40°C ~ 85°C | - | - | - |
|
KMA221JSENSOR ANGLE 180DEG PC PIN |
0 |
|
Datasheet |
4-SIP Module | - | Tape & Reel (TR) | Obsolete | - | Angle | Magnetoresistive | 0° ~ 180° | - | Analog Voltage | - | External Magnet, Not Included | ±1.2° | - | - | 4.5V ~ 5.5V | Through Hole | PC Pin | -40°C ~ 160°C | - | - | 4-SIL |
|
A1332KLETR-TSENSOR ANGLE 360DEG SMD |
0 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | I2C | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 14-TSSOP |
|
RTP070HVNAASENSOR ROTARY 70DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RTP | Bulk | Active | - | Rotary Position | Hall Effect | 70° (±35°) | - | Analog Voltage | Clockwise Increase | External Magnet, Included | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
1-1393048-6SENSOR WIRE LEADS |
0 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | 7V | - | Wire Leads | -55°C ~ 150°C | - | - | - |
