Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

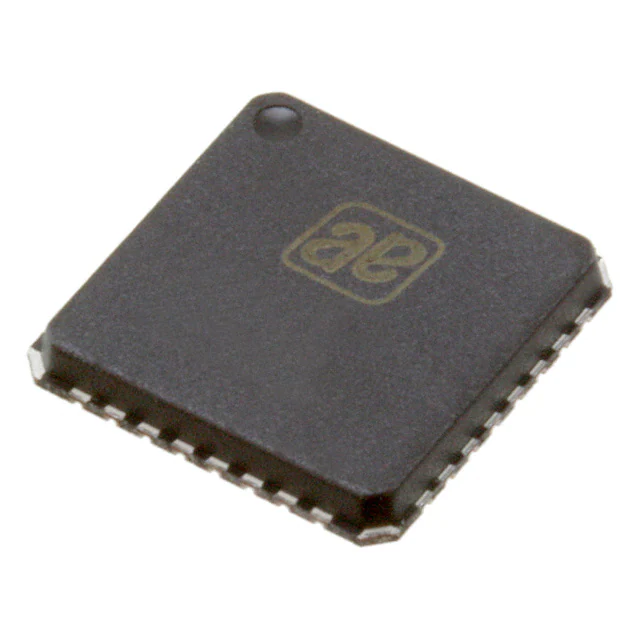

AS5263-HQFMSENSOR ANGLE 360DEG SMD |
0 |
|
Datasheet |
32-VQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | - | - | 32-MLF (7x7) |
|
RTY060HVEAXSENSOR ROTARY 60DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 60° (±30°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY120HVEAXSENSOR ROTARY 120DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 120° (±60°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY050HVEAXSENSOR ROTARY 50DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 50° (±25°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY070HVEAXSENSOR ROTARY 70DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 70° (±35°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
RPNS090AA1B11ASENSOR ROTARY 90DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RPN | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°) | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±2° | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RPNS090AA1A11XSENSOR ROTARY 90DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RPN | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°) | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±2° | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
F53050006POS TRANS-XDCR MEL 50 MM |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F10010105POS TRANS-XDCR EWA-105 WIPER |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MLX91204KDC-ABA-001-RESENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Obsolete | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
MLX91204KDC-ABA-002-RESENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Obsolete | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
MLX91204KDC-ABA-001-TUSENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Obsolete | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
MLX91204KDC-ABA-002-TUSENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Obsolete | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
34THEB1ATA0S22SENSOR ROTARY 3600DEG SLD TURRET |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 3600°, Continuous | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±1% | - | - | 5V | Panel Mount | Solder Turret | -40°C ~ 85°C | - | - | - |
|
|
34THEB1BWE2S22SENSOR ROTARY 3600DEG WIRE LEADS |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 3600°, Continuous | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±1% | - | - | 5V | Panel Mount | Wire Leads | -40°C ~ 85°C | - | - | - |
|
KMA220JSENSOR ANGLE 180DEG PC PIN |
0 |
|
Datasheet |
4-SIP Module | - | Tape & Reel (TR) | Obsolete | - | Angle | Magnetoresistive | 0° ~ 180° | - | Analog Voltage | - | External Magnet, Not Included | ±1.2° | - | - | 4.5V ~ 5.5V | Through Hole | PC Pin | -40°C ~ 160°C | - | - | 4-SIL |
|
ZMT32TASENSOR ANGLE 180DEG SMD |
0 |
|
Datasheet |
SOT-223-8 | - | Tape & Reel (TR) | Obsolete | - | Angle | Magnetoresistive | 0° ~ 180° | - | Wheatstone Bridge | - | External Magnet, Not Included | - | 3 kOhms | - | 5V ~ 8.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 160°C | - | - | SM8 |
|

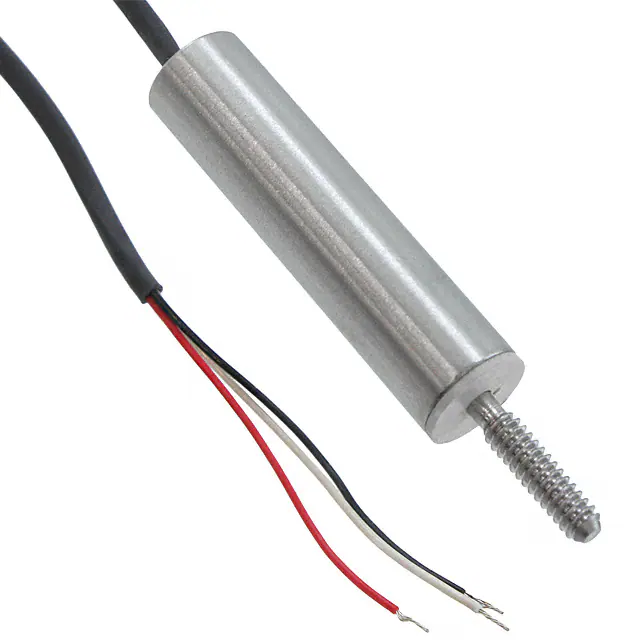

5903-0505-030SENSOR LINEAR 12.7MM WIRE LEADS |
0 |
|
Datasheet |
Cylinder, Wire Leads | 5903 | Bag | Obsolete | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±1% | 5 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
|
|
5903-0510-030SENSOR LINEAR 25.4MM WIRE LEADS |
0 |
|
Datasheet |
Module, Wire Leads, Threaded | 5903 | Bag | Obsolete | - | Linear Position | Resistive | - | 0 ~ 25.40mm (0 ~ 1.00") | Resistive | - | Round Shaft | ±1% | 5 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
|

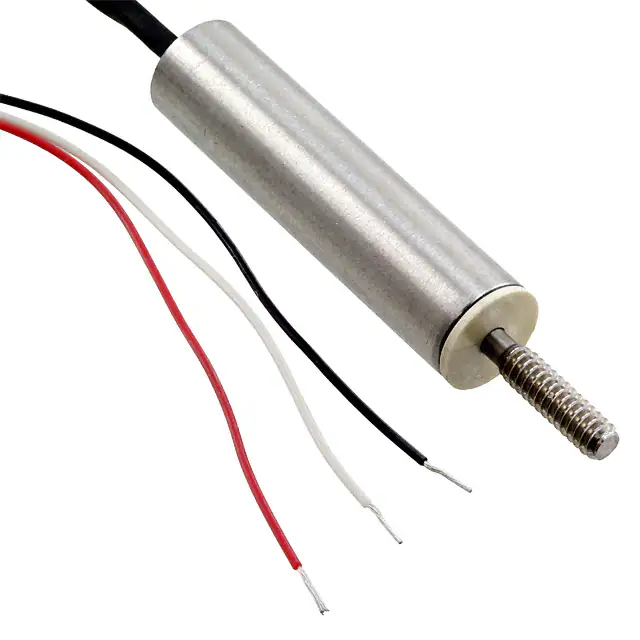

5903-1005-030SENSOR LINEAR 12.7MM WIRE LEADS |
0 |
|
Datasheet |
Cylinder, Wire Leads | 5903 | Bag | Obsolete | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±1% | 10 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
Angle, Linear Position Measuring Electronic Components
Explore Angle, Linear Position Measuring electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
