Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSP-L-0300-103-1%-STSENSOR LINEAR 300MM SOLDER TAB |
24 |
|
Datasheet |
Sensor Strip | ThinPot | Bag | Active | - | Linear Position | Resistive | - | 0 ~ 300.00mm (0 ~ 11.81") | Resistive | - | Flexible Membrane - Linear | ±1% | 10 kOhms | ±20% | - | Custom | Solder Tab | -40°C ~ 50°C | - | - | - |
|
|
TSP-L-0400-203-1%-MPSENSOR LINEAR 400MM PC PIN |
14 |
|
Datasheet |
Sensor Strip | ThinPot | Box | Active | - | Linear Position | Resistive | - | 0 ~ 400.00mm (0 ~ 15.75") | Resistive | - | Flexible Membrane - Linear | ±1% | 20 kOhms | ±20% | - | Custom | PC Pin | -40°C ~ 50°C | - | - | - |
|
SP-L-0200-103-1%-RHSENSOR LINEAR 200MM CONNECTOR |
100 |
|
Datasheet |
Sensor Strip | SoftPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 200.00mm (0 ~ 7.87") | Resistive | - | Flexible Membrane - Linear | ±1% | 10 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
|
SP-L-0300-103-1%-RHSENSOR LINEAR 300MM CONNECTOR |
26 |
|
Datasheet |
Sensor Strip | SoftPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 300.00mm (0 ~ 11.81") | Resistive | - | Flexible Membrane - Linear | ±1% | 10 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
4114902490LINEAR-POSITION-SENSOR LM10 10K |
20 |
|
Datasheet |
Module, Round Shaft | LM10 | Bulk | Active | - | Linear Position | - | - | 0 ~ 10mm (0 ~ 0.39") | - | - | Round Shaft | ±2% | 10 kOhms | ±20% | - | Chassis Mount | Cable | -40°C ~ 130°C | - | - | - |
|
3048L-2-103SENSOR LINEAR 5.08MM WIRE LEADS |
41 |
|
Datasheet |
Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 5.08mm (0 ~ 0.20") | Resistive | - | Round Shaft | ±5% | 10 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
286CC3DAAAA1MULTI-TURN ROTARY POS SINGLE OUT |
20 |
|
Datasheet |
Module, Slotted Shaft | 286 | Tray | Active | - | Angle | Hall Effect | 0° ~ 3600°, Continuous | - | Analog | Clockwise Increase | Slotted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
|
ECS78RBA103SFERNICE TRANSDUCERS |
50 |
|
Datasheet |
Module, Round Shaft | ECS | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Shaft | ±2% | 10 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|

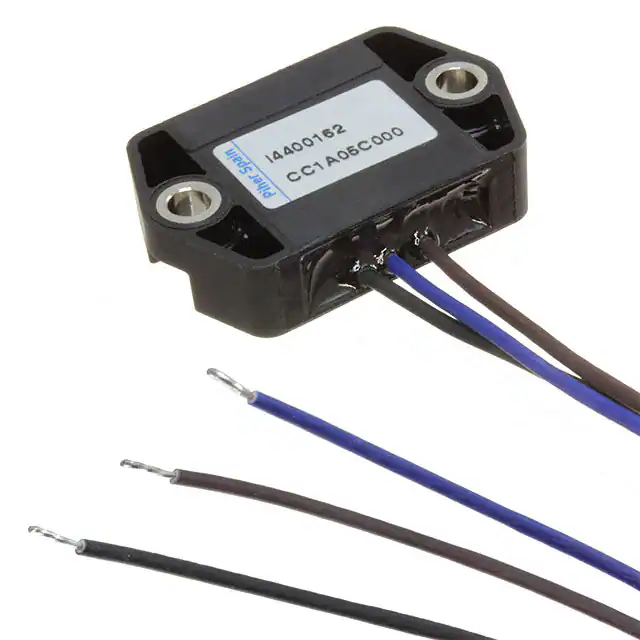

PS2P-CON-CE-1A0-C0000-ERA360-05SENSOR ANGLE 360DEG WIRE LEADS |
18 |
|
Datasheet |
Box with Wire Leads | PS2P-CON-CE | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | - | External Magnet, Included | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
|
SP-L-0500-203-1%-STSENSOR LINEAR 500MM SOLDER TAB |
8 |
|
Datasheet |
Sensor Strip | SoftPot | Box | Active | - | Linear Position | Resistive | - | 0 ~ 500.00mm (0 ~ 19.69") | Resistive | - | Flexible Membrane - Linear | ±1% | 20 kOhms | ±20% | - | Custom | Solder Tab | -40°C ~ 50°C | - | - | - |
|
MSC360-1A-C0004-ERA360-05KMINIATURE HALL-EFFECT ROTARY POS |
12 |
|
Datasheet |
Box with Wire Leads | MSC360 | Bulk | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
|
MSC360-1A-C0022-ERA090-05KMINIATURE HALL-EFFECT ROTARY POS |
19 |
|
Datasheet |
Box with Wire Leads | MSC360 | Bulk | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|

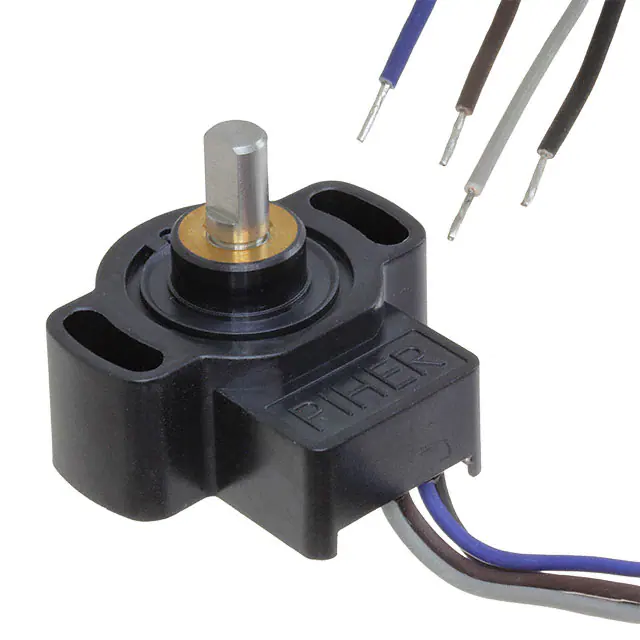

PSC360G2-F1A-C0000-ERA360-RE-KSENSOR ANGLE 360DEG WIRE LEADS |
22 |
|
Datasheet |
Box with Wire Leads | PSC360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 7V ~ 15V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
PSC360G2-F1P-C0000-ERA360-05K-200SENSOR ANGLE 360DEG WIRE LEADS |
8 |
|
Datasheet |
Box with Wire Leads | PSC360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | PWM | Clockwise Increase | Flatted Shaft | ±1% | - | - | 4.5V ~ 5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
LIN-21HAW1SENSOR LINEAR 45MM WIRE LEADS |
12 |
|
Datasheet |
Box with Wire Leads | LIN | Bulk | Active | - | Linear Position | Hall Effect | - | 0 ~ 45.00mm (0 ~ 1.77") | Analog Voltage, PWM | - | External Magnet, Included | ±1% | - | - | 5V | Chassis Mount | Wire Leads | -40°C ~ 140°C | - | - | - |
|
PSCI-6PP-05INDUCTIVE HIGH SPEED ROTOR POSIT |
54 |
|
Datasheet |
Box with Wire Leads | PSCI | Bulk | Active | - | Rotary Position | Inductive | - | - | Analog Voltage, PWM | Cosine, Sine | Hole for Shaft | - | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 150°C | - | - | - |
|
|
PSC360G2-F1A-C0006-ERA060-05KHALL-EFFECT POSITION SENSOR (END |
32 |
|
Datasheet |
Module, Flatted Shaft | PSC360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 60° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
|
PSCI-4PP-05INDUCTIVE HIGH SPEED ROTOR POSIT |
10 |
|
Datasheet |
Box with Wire Leads | PSCI | Bulk | Active | - | Rotary Position | Inductive | - | - | Analog Voltage, PWM | Cosine, Sine | Hole for Shaft | - | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 150°C | - | - | - |
|

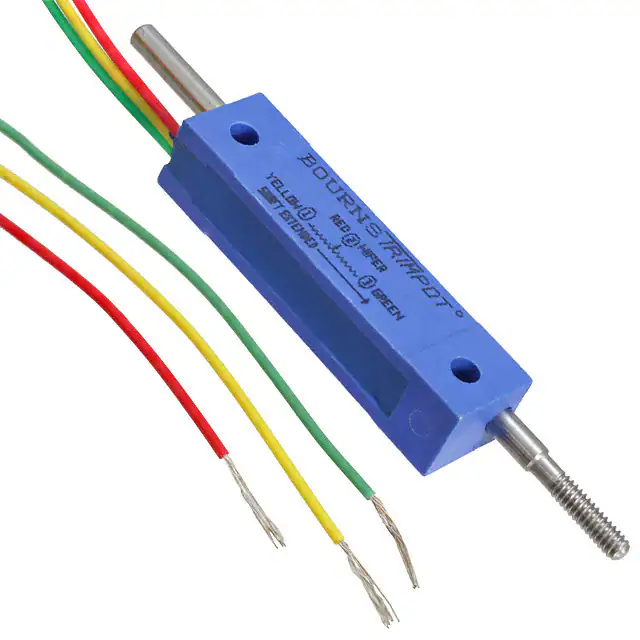

3048L-4-502SENSOR LINEAR 10.16MM WIRE LEADS |
25 |
|
Datasheet |
Module, Wire Leads, Threaded | - | Tray | Active | - | Linear Position | Resistive | - | 0 ~ 10.16mm (0 ~ 0.40") | Resistive | - | Round Shaft | ±5% | 5 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
PS2P-CON-CE-M001-1A0-C0007-ERA180-05ROTARY TOUCHLESS MAGNETIC POSITI |
56 |
|
Datasheet |
Box with Wire Leads | PS2P-CON-CE | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 180° | - | Analog Voltage | - | External Magnet, Included | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
