Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
02560927-000SENSOR ROTARY 60DEG WIRE LEADS |
5 |
|
Datasheet |
Cylinder | R36AS | Bulk | Active | - | Rotary Position | Inductive | 60° (±30°), Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.25% | - | - | 3V | Panel Mount | Connector | -55°C ~ 150°C | - | - | - |
|
SR1M-125STRING POT, 125 INCH RANGE |
8 |
|
Datasheet |
Box with Connector | SR1M | Box | Active | - | Linear Position | - | - | 0 ~ 3175.00mm (0 ~ 125.00") | 4mA ~ 20mA | - | String Potentiometer | ±0.5% | - | - | 10V ~ 30V | Chassis Mount | Cable | -40°C ~ 85°C | - | - | - |
|
|
SK1-400-3400 IN VOLTAGE DIVIDER STRING PO |
6 |
|
Datasheet |
Module | SK1 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 10160.00mm (0 ~ 400.00") | Analog Voltage | - | String Potentiometer | - | - | ±10% | 30V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
MMF336842SENSOR LINEAR 25.4MM WIRE LEADS |
5 |
|
- |
Cylinder, Wire Leads | HS | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 25.40mm (0 ~ 1.00") | Resistive | - | Round Shaft | ±0.35% | - | - | 2V ~ 10V | Custom | Wire Leads | -10°C ~ 60°C | - | - | - |
|

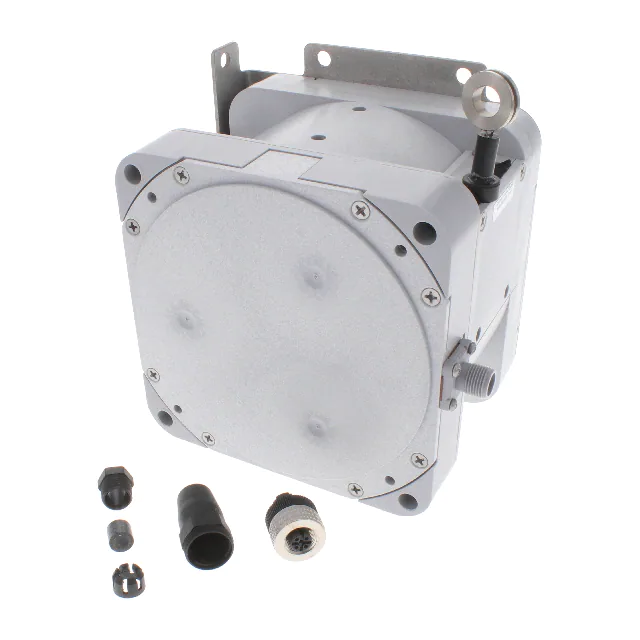

SKD-400-3400 IN 0-10V / 4-20MA IP67 STRIN |
4 |
|
Datasheet |
Module | SKD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 10160.00mm (0 ~ 400.00") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | - | - | 8V ~ 32V, 12V ~ 40V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
EVW-ADF001B14SENSOR ROTARY 343DEG SMD |
52 |
|
Datasheet |
4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 343° | - | Resistive | - | Hole for Shaft | ±2% | 10 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | - | - | - | - |
|
|
FS-L-055-253-STSENSOR LINEAR SOLDER TAB |
76 |
|
Datasheet |
Sensor Strip | FS | Bag | Active | - | Linear Position | Resistive | - | - | Resistive | - | Flexible Membrane - Linear | - | 25 kOhms | ±30% | - | Custom | Solder Tab | -35°C ~ 80°C | - | - | - |
|
9102000020HALL-ANGLE-SENSOR 9102000020 |
19 |
|
Datasheet |
Module | - | Bulk | Active | - | Angle | Hall Effect | 0° ~ 60° | - | Analog Voltage | - | Hole for Shaft | ±2% | - | - | 4.5V ~ 5.5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
6127V1A90L.5SENSOR ROTARY 90DEG SLDR TURRET |
69 |
|
Datasheet |
Module, Round Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 90°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
3046L-3-502SENSOR LINEAR 8.89MM WIRE LEADS |
21 |
|
Datasheet |
Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 8.89mm (0 ~ 0.35") | Resistive | - | Round Shaft | ±5% | 5 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
3046L-1-103SENSOR LINEAR 3.81MM WIRE LEADS |
9 |
|
Datasheet |
Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 3.81mm (0 ~ 0.15") | Resistive | - | Round Shaft | ±5% | 10 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
4114902470LINEAR-POSITION-SENSOR LM10 5K |
10 |
|
Datasheet |
Module, Round Shaft | LM10 | Bulk | Active | - | Linear Position | - | - | 0 ~ 10mm (0 ~ 0.39") | - | - | Round Shaft | ±2% | 5 kOhms | ±20% | - | Chassis Mount | Cable | -40°C ~ 130°C | - | - | - |
|

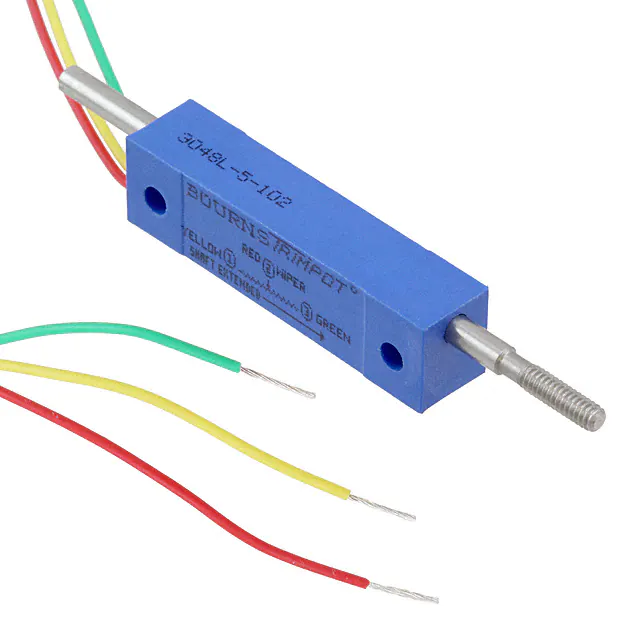

3048L-5-102SENSOR LINEAR 12.7MM WIRE LEADS |
30 |
|
Datasheet |
Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±5% | 1 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
3046L-2-103SENSOR LINEAR 6.35MM WIRE LEADS |
65 |
|
Datasheet |
Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 6.35mm (0 ~ 0.25") | Resistive | - | Round Shaft | ±5% | 10 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
351HE0B4WA1S22SENSOR ROTARY 360DEG WIRE LEADS |
49 |
|
Datasheet |
Module, Slotted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
PS2P-CON-CE-M001-2AA-C0002-ERA360-05ROTARY TOUCHLESS MAGNETIC POSITI |
88 |
|
Datasheet |
Box with Wire Leads | PS2P-CON-CE | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | - | External Magnet, Included | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
3048L-5-502SENSOR LINEAR 12.7MM WIRE LEADS |
14 |
|
Datasheet |
Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±5% | 5 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
PST360G2G2-1A-C0007-ERA180-05KSENSOR ANGLE 180DEG WIRE LEADS |
21 |
|
Datasheet |
Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 180° | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
MK5101CYLINDER SENSOR WITH GMR CELL; 2 |
4 |
|
Datasheet |
Module | - | Box | Active | - | Linear Position | - | - | - | Digital | - | T-Slot | - | - | - | 10V ~ 30V | Chassis Mount | Connector | -25°C ~ 85°C | - | - | - |
|
MK5102CYLINDER SENSOR WITH GMR CELL; 2 |
10 |
|
Datasheet |
Module | - | Box | Active | - | Linear Position | - | - | - | Digital | - | T-Slot | - | - | - | 10V ~ 30V | Chassis Mount | Connector | -25°C ~ 85°C | - | - | - |
Angle, Linear Position Measuring Electronic Components
Explore Angle, Linear Position Measuring electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
