Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM1-25PRESSURE 0.15 PSIG I2C SO16 |
6 |
|
Datasheet |
Module | SM1 | Box | Active | - | Linear Position | - | - | 0 ~ 635.00mm (0 ~ 25.00") | Resistive | - | String Potentiometer | ±0.25% | 10 kOhms | ±10% | 30V | Chassis Mount | Solder Lug | -18°C ~ 71°C | - | - | - |
|
02560410-000SENSOR LINEAR 6.35MM WIRE LEADS |
21 |
|
Datasheet |
Cylinder, Wire Leads | MHR | Bulk | Active | - | Linear Position | LVDT (Linear Variable Differential Transformer) | - | ±6.35mm | Analog Voltage | - | Shaft | ±0.15% | - | - | 3V | Custom | Wire Leads | -55°C ~ 150°C (TA) | - | - | - |
|
SP2-4SENSOR LINEAR 120MM WIRE LEADS |
5 |
|
Datasheet |
Box with Wire Leads | SP2 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 120mm (0 ~ 4.75") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Panel Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|
|
SM1-12STRING POT, 7.5 INCH RANGE |
11 |
|
Datasheet |
Module | SM1 | Box | Active | - | Linear Position | - | - | 0 ~ 3175.00mm (0 ~ 125.00") | Resistive | - | String Potentiometer | ±0.25% | 10 kOhms | ±10% | 30V | Chassis Mount | Solder Lug | -18°C ~ 71°C | - | - | - |
|
|
SM2-75MBAR ULTRA-LOW SENSOR |
6 |
|
Datasheet |
Module | SM2 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 191.00mm (0 ~ 7.52") | Resistive | - | String Potentiometer | ±0.25% | 10 kOhms | ±10% | 30VAC/DC | Chassis Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|
604R4KL.15SENSOR LINEAR 101.6MM WIRE LEAD |
4 |
|
Datasheet |
Cylinder, Wire Leads | 600 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 101.60mm (0 ~ 4.00") | Resistive | - | Shaft | ±0.15% | 4 kOhms | - | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
LRSI-18-100-A-00-20-ASENSOR LINEAR 101.6MM CONNECTOR |
4 |
|
Datasheet |
Cylinder | LRS-18 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 101.60mm (0 ~ 4.00") | 4mA ~ 20mA | - | Round Shaft | ±0.15% | - | - | - | Chassis Mount | Connector | -20°C ~ 85°C | - | - | - |
|
SPD-4-3SENSOR LINEAR 120MM CONNECTOR |
25 |
|
Datasheet |
Box with Connector | SPD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 120mm (0 ~ 4.75") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | - | - | 8V ~ 40V | Custom | Connector | -40°C ~ 70°C | - | - | - |
|
SG1-80-3SENSOR LINEAR 2032MM CONNECTOR |
11 |
|
Datasheet |
Box with Connector | SG1 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 2032mm (0 ~ 80") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Custom | Connector | -40°C ~ 70°C | - | - | - |
|
|
SPD-12-3SENSOR LINEAR 317MM CONNECTOR |
25 |
|
Datasheet |
Box with Connector | SPD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 317mm (0 ~ 12.5") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | - | - | 8V ~ 40V | Custom | Connector | -40°C ~ 70°C | - | - | - |
|
02181600-120SENSOR ROTARY 120DEG WIRE LEADS |
13 |
|
Datasheet |
Module | RVIT | Bulk | Active | - | Rotary Position | Inductive | 0° ~ 120°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.25% | - | - | 10V ~ 28V | Custom | Wire Leads | -18°C ~ 77°C | - | - | - |
|
|
SG1-120-3SENSOR LINEAR 3048MM CONNECTOR |
5 |
|
Datasheet |
Box with Connector | SG1 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 3048mm (0 ~ 120") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Custom | Connector | -40°C ~ 70°C | - | - | - |
|
|
SP3-25STRING POT 25 INCH RANGE |
4 |
|
Datasheet |
Box with Connector | SP3 | Box | Active | - | Linear Position | - | - | 0 ~ 635.00mm (0 ~ 25.00") | 0V ~ 10V, 4mA ~ 20mA | - | String Potentiometer | ±0.25% | - | - | 8V, 12V ~ 32V, 40V | Chassis Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|

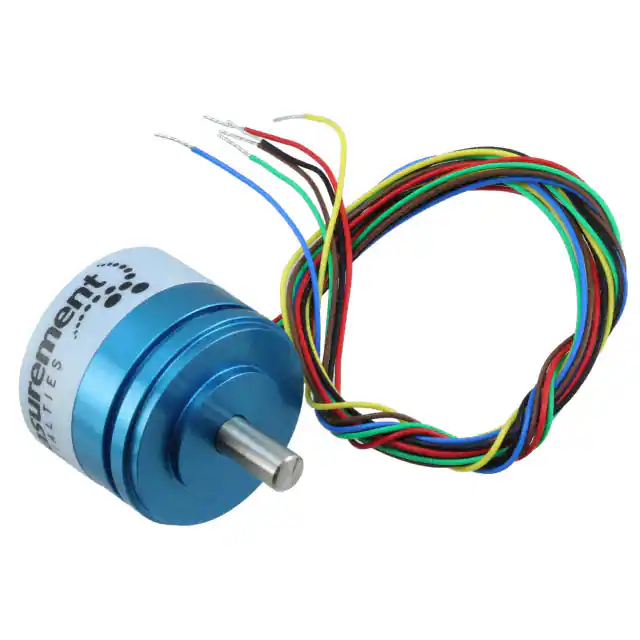

02560231-000LINEAR TRANSDUCER |
4 |
|
Datasheet |
- | R30A | Bulk | Active | - | Rotary Position | Inductive | 60° (±30°), Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | - | - | - | - | Panel Mount | Wire Leads | -55°C ~ 150°C | - | - | - |
|
LRLI-27-250-R-00-20-ASENSOR LINEAR 254MM CABLE |
5 |
|
Datasheet |
Cylinder | LRL-27 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 254.00mm (0 ~ 10.00") | 4mA ~ 20mA | - | Round Shaft | ±0.15% | - | - | - | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
SGD-80-3SENSOR LINEAR 2032MM CONNECTOR |
13 |
|
Datasheet |
Box with Connector | SGD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 2032mm (0 ~ 80") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | 10 kOhms | ±10% | 8V ~ 40V | Custom | Connector | -18°C ~ 70°C | - | - | - |
|
GHSE-19-025-A-02-10-SSENSOR LINEAR 25.4MM CONNECTOR |
4 |
|
Datasheet |
Cylinder | GHS-19 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 25.40mm (0 ~ 1.00") | 0 V ~ 10 V | - | Round Shaft | ±0.15% | - | - | 0V ~ 10V | Chassis Mount | Connector | -20°C ~ 85°C | - | - | - |
|
|
SGD-120-3SENSOR LINEAR 3048MM CONNECTOR |
22 |
|
Datasheet |
Box with Connector | SGD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 3048mm (0 ~ 120") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | 10 kOhms | ±10% | 8V ~ 40V | Custom | Connector | -18°C ~ 70°C | - | - | - |
|
|
02560234-000SENSOR POSITION RVDT +/- 15V |
6 |
|
Datasheet |
- | - | Bulk | Active | - | Rotary Position | Inductive | 60° (±30°), Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.25% | - | - | ±15V | Panel Mount | Wire Leads | -18°C ~ 70°C | - | - | - |
|
SKD-250-3250 IN 0-10V / 4-20MA IP67 STRIN |
6 |
|
Datasheet |
Module | SKD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 6350.00mm (0 ~ 250.00") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | - | - | 8V ~ 32V, 12V ~ 40V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
