Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADA4570WHRZAMR ANGLE SENSOR AND SIG COND |
279 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | - | Angle | Magnetoresistive | 180° (±90°), Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 2.7V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | Automotive | AEC-Q100 | 8-SOIC |
|
TLE4959CFXHAMA1SENSOR ROTARY PC PIN |
0 |
|
Datasheet |
3-SIP Module | - | Cut Tape (CT) | Active | - | Linear, Rotary Position | Hall Effect | - | - | Analog Voltage, PWM | - | External Magnet, Not Included | - | - | - | 4V ~ 16V | Through Hole | PC Pin | -40°C ~ 175°C (TJ) | Automotive | AEC-Q100 | PG-SSO-3-52 |
|
|
TLE4959CHAMA1SENSOR ROTARY PC PIN |
146 |
|
Datasheet |
3-SIP Module | - | Cut Tape (CT) | Active | - | Linear, Rotary Position | Hall Effect | - | - | Analog Voltage, PWM | - | External Magnet, Not Included | - | - | - | 4V ~ 16V | Through Hole | PC Pin | -40°C ~ 175°C (TJ) | Automotive | AEC-Q100 | PG-SSO-3-52 |
|
A31315LOLATR-XY-S-SE-10SENSOR ANGLE 360DEG SMD |
2,995 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | A31315 | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360° | - | PWM, SENT | Programmable | External Magnet, Not Included | ±0.3% | 1.2 kOhms | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | - | - | 8-SOIC |
|
|
A31315LOLATR-XZ-S-SE-10SENSOR ANGLE 360DEG SMD |
2,792 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | A31315 | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360° | - | PWM, SENT | Programmable | External Magnet, Not Included | ±0.3% | 1.2 kOhms | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | - | - | 8-SOIC |
|
MA736GGU-P8-BIT TO 12.5-BIT, 3S LOW-LATENC |
500 |
|
Datasheet |
14-UFQFN | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | Clockwise Increase, Counterclockwise Increase, Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C (TA) | - | - | 14-UTQFN (2x2) |
|
|
MA735GGU-P9-BIT TO 13-BIT, DIGITAL, CONTAC |
500 |
|
Datasheet |
14-UFQFN | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM, SPI | Clockwise Increase, Counterclockwise Increase, Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C (TA) | - | - | 14-UTQFN (2x2) |
|
ADA4571WHRZ-R7SENSOR ANGLE 180DEG SMD |
768 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 180° (±90°), Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 2.7V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | Automotive | - | 8-SOIC |
|
|
MLX90360KDC-ACD-000-TUSENSOR ROTARY 360DEG SMD |
369 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
APS00BSENSOR ANGLE 90DEG SMD |
6,986 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 90°, Continuous | - | Analog Voltage | Clockwise Increase | External Magnet, Not Included | - | - | - | 5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 8-SOIC |
|
MA734GQ-P8-BIT TO 12.5-BIT, 3S LOW-LATENC |
252 |
|
Datasheet |
16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
TLE5014C16XUMA1SENSOR ANGLE 360DEG GULL WING |
176 |
|
Datasheet |
16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Magnetoresistive | 0° ~ 360° | - | SPC | Cosine, Sine | External Magnet, Not Included | - | - | - | 4.2V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | Automotive | AEC-Q100 | PG-TDSO-16 |
|
|
AS5172B-HTSTSENSOR ANGLE 360DEG SMD |
3,285 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4V ~ 12V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | 14-TSSOP |
|
|
MLX90316EDC-BDG-100-TUSENSOR ROTARY 360DEG SMD |
1,596 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | SPI | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | 8-SOIC |
|
|
MLX90365LDC-ABD-000-RESENSOR ROTARY 360DEG SMD |
5,964 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 8-SOIC |
|
|
MLX90360LDC-ACD-000-TUSENSOR ROTARY 360DEG SMD |
1,040 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 8-SOIC |
|

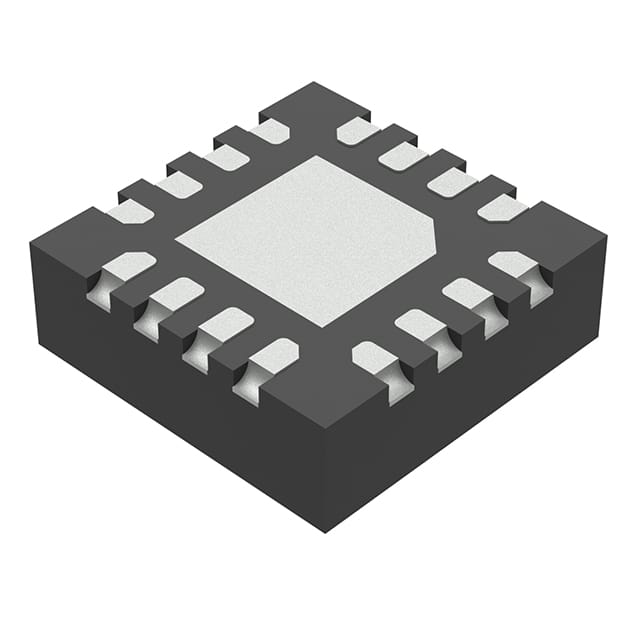

MAQ430GQE-AEC1-Z12-BIT, AUTOMOTIVE ANGLE SENSOR |
9,468 |
|
Datasheet |
16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount, Wettable Flank | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
TLE5309DE5201XUMA1POSITION&CURRENT SENSORS |
0 |
|
Datasheet |
16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | PG-TDSO-16 |
|
|
MLX90360LDC-ACD-200-TUSENSOR ROTARY 360DEG SMD |
1,040 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 8-SOIC |
|
|
MLX90360KDC-ACD-000-RESENSOR ROTARY 360DEG SMD |
4,490 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
Angle, Linear Position Measuring Electronic Components
Explore Angle, Linear Position Measuring electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
