Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200VXG1000MEFCSN35X30CAP ALUM 1000UF 20% 200V SNAP TH |
96 |
|
Datasheet |
VXG | Bulk | Active | 1000 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.91 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
420MXC330MEFCSN30X40CAP ALUM 330UF 20% 420V SNAP TH |
100 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 330 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | 1.918 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450HXH180MEPASN30X25CAP ALUM 180UF 20% 450V SNAP TH |
99 |
|
Datasheet |
HXH | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.24 A @ 120 Hz | 1.736 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
861141485017CAP ALUM 220UF 20% 450V SNAP TH |
100 |
|
Datasheet |
WCAP-AI3H | Tray | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.5456 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
|
450GXH180MEFCSN30X25CAP ALUM 450V POLAR |
100 |
|
Datasheet |
GXH | Bulk | Active | 180 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.61 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
450MXC270MEFCSN30X40CAP ALUM 270UF 20% 450V SNAP TH |
97 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.792 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400MXG270MEFCSN30X30CAP ALUM 270UF 20% 400V SNAP TH |
100 |
|
Datasheet |
MXG | Bulk | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
400MXC560MEFCSN35X45CAP ALUM 560UF 20% 400V SNAP TH |
100 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 560 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 2.968 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
420MXH330MEFCSN35X30CAP ALUM 330UF 20% 420V SNAP TH |
100 |
|
Datasheet |
MXH | Bulk | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.184 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450GXK220MEFCSN25X35CAP ALUM 450V POLAR |
95 |
|
Datasheet |
GXK | Bulk | Active | 220 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.89 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
861221386021CAP ALUM 470UF 20% 400V SNAP TH |
26 |
|
Datasheet |
WCAP-AIE8 | Tray | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.4638 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
400MXT330MEFCSN25X30CAP ALUM 330UF 20% 400V SNAP TH |
90 |
|
Datasheet |
MXT | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.904 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450GXK270MEFCSN30X30CAP ALUM 450V POLAR |
100 |
|
Datasheet |
GXK | Bulk | Active | 270 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 2.002 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
35MXC15000MEFCSN35X35CAP ALUM 15000UF 20% 35V SNAP TH |
100 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 15000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.72 A @ 120 Hz | 4.278 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
400SXG330MEFCSN30X35CAP ALUM 330UF 20% 400V SNAP TH |
100 |
|
Datasheet |
SXG | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 2.016 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
400MXT330MEFCSN30X25CAP ALUM 330UF 20% 400V SNAP TH |
69 |
|
Datasheet |
MXT | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 120 Hz | 1.834 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

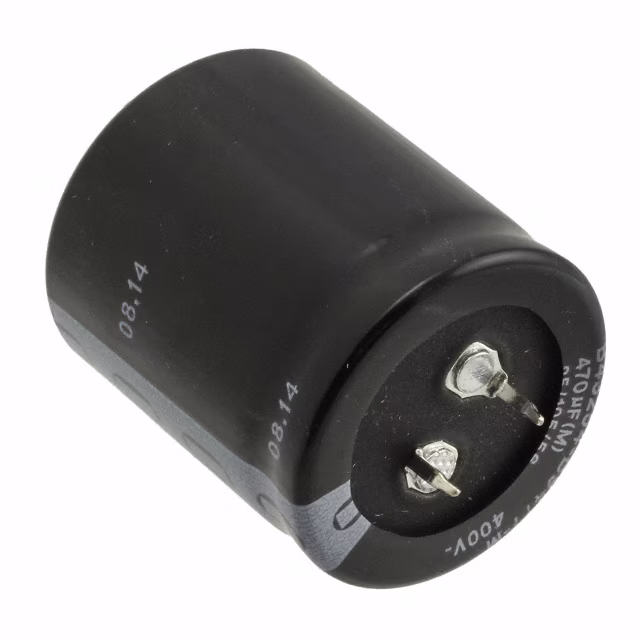

B43254B9477M000CAP ALUM 470UF 20% 400V SNAP TH |
72 |
|
Datasheet |
B43254 | Bulk | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.697 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
50USC10000MEFCSN30X40CAP ALUM 10000UF 20% 50V SNAP TH |
98 |
|
Datasheet |
USC | Bulk | Not For New Designs | 10000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.02 A @ 120 Hz | 5.773 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
200MXC1500MEFCSN30X50CAP ALUM 1500UF 20% 200V SNAP TH |
94 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1500 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.08 A @ 120 Hz | 4.62 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
420VXT270MEFCSN30X25CAP ALUM 270UF 20% 420V SNAP TH |
99 |
|
Datasheet |
VXT | Bulk | Active | 270 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.806 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
