Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCM1V362MNS1MSCAP ALUM 35V POLAR |
75 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 3.6 mF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.32 A @ 120 Hz | 2.64 A @ 100 kHz | 32 mOhms | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
861141085015CAP ALUM 680UF 20% 200V SNAP TH |
34 |
|
Datasheet |
WCAP-AI3H | Tray | Active | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.4564 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
UCM1H162MNS1MSCAP ALUM 50V POLAR |
75 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 1.6 mF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.275 A @ 120 Hz | 2.55 A @ 100 kHz | 50 mOhms | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
EKMM401VSN221MR30SCAP ALUM 220UF 20% 400V SNAP TH |
96 |
|
Datasheet |
KMM | Bulk | Active | 220 µF | ±20% | 400 V | 1.13Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
861011384014CAP ALUM 220UF 20% 400V SNAP TH |
96 |
|
Datasheet |
WCAP-AIG8 | Tray | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.139 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

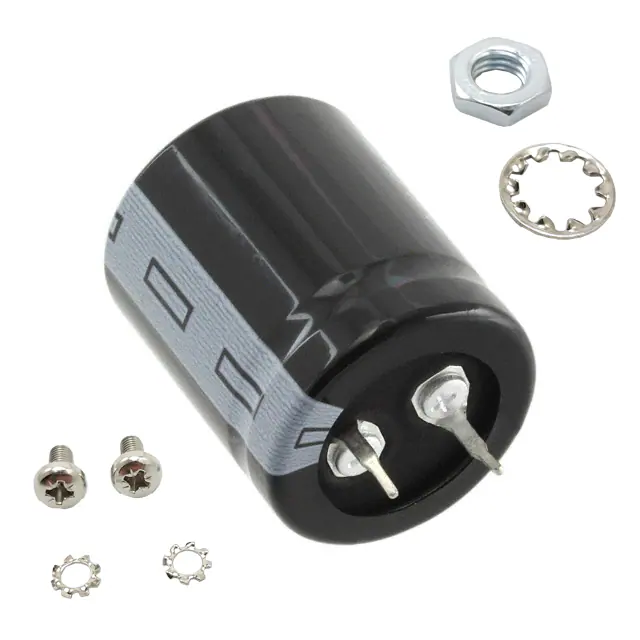

B43501B3157M000CAP ALUM 150UF 20% 385V SNAP TH |
60 |
|
Datasheet |
B43501 | Bulk | Active | 150 µF | ±20% | 385 V | 440mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.04 A @ 100 Hz | - | 710 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EKMH500VSN472MR30SCAP ALUM 4700UF 20% 50V SNAP TH |
30 |
|
Datasheet |
KMH | Bulk | Active | 4700 µF | ±20% | 50 V | 71mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 2.43 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
861220785014CAP ALUM 4700UF 20% 63V SNAP TH |
45 |
|
Datasheet |
WCAP-AIE8 | Tray | Active | 4700 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.54 A @ 120 Hz | 4.5312 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
UCM1J122MNS1MSCAP ALUM 63V POLAR |
75 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 1.2 mF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.215 A @ 120 Hz | 2.43 A @ 100 kHz | 54 mOhms | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
381LQ392M050J012CAP ALUM 3900UF 20% 50V SNAP TH |
50 |
|
Datasheet |
381LQ | Bulk | Active | 3900 µF | ±20% | 50 V | 106mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UCM2A511MNS1MSCAP ALUM 100V POLAR |
65 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 510 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.07 A @ 120 Hz | 2.14 A @ 100 kHz | 63 mOhms | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
|
EMVH250GRA102MMN0SCAP ALUM 1000UF 20% 25V SMD |
94 |
|
Datasheet |
Alchip™- MVH | Tape & Reel (TR) | Active | 1000 µF | ±20% | 25 V | 58mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 930 mA @ 120 Hz | 1.55 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
861011483005CAP ALUM 120UF 20% 450V SNAP TH |
96 |
|
Datasheet |
WCAP-AIG8 | Tray | Active | 120 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.6422 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.693" (43.00mm) | - | Through Hole | |
|
|
UCM1K751MNS1MSCAP ALUM 80V POLAR |
75 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 750 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.07 A @ 120 Hz | 2.14 A @ 100 kHz | 63 mOhms | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
|
EKMR201VSN102MP50SCAP ALUM 200V POLAR |
47 |
|
Datasheet |
KMR | Bulk | Active | 1 mF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.45 A @ 120 Hz | 3.675 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
861111485024CAP ALUM 120UF 20% 450V SNAP TH |
50 |
|
Datasheet |
WCAP-AIL5 | Tray | Active | 120 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.1316 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.102" (28.00mm) | - | Through Hole | |
|
|
EKMM401VSN181MQ35SCAP ALUM 400V POLAR |
34 |
|
Datasheet |
KMM | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.4014 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.457" (37.00mm) | - | Through Hole | |
|
63USC3300MEFCSN25X30CAP ALUM 3300UF 20% 63V SNAP TH |
74 |
|
Datasheet |
USC | Bulk | Not For New Designs | 3300 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 3.0935 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
200BXW560MEFR18X45CAP ALUM 200V POLAR |
97 |
|
Datasheet |
BXW | Bulk | Active | 560 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 3.54 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EEU-TA1V222CAP ALUM 2200UF 20% 35V RADIAL |
82 |
|
Datasheet |
TA | Bulk | Active | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 2.232 A @ 120 Hz | 2.79 A @ 100 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
