Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGW2D182MELB50CAP ALUM 1800UF 20% 200V SNAP TH |
48 |
|
Datasheet |
LGW | Bulk | Active | 1800 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.22 A @ 120 Hz | 7.83 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LAQ2G151MELB25CAP ALUM 150UF 20% 400V SNAP TH |
34 |
|
Datasheet |
LAQ | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 977.5 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
250MXG820MEFCSN30X35CAP ALUM 820UF 20% 250V SNAP TH |
100 |
|
Datasheet |
MXG | Bulk | Active | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.14 A @ 120 Hz | 3.21 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
100USG4700MEFCSN35X40CAP ALUM 4700UF 20% 100V SNAP TH |
59 |
|
Datasheet |
USG | Bulk | Active | 4700 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.13 A @ 120 Hz | 5.9 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ESMR451VSN561MA40SCAP ALUM 560UF 20% 450V SNAP TH |
55 |
|
Datasheet |
SMR | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.87 A @ 120 Hz | 4.1041 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
EKMZ451VSN391MQ45SCAP ALUM 390UF 20% 450V SNAP TH |
43 |
|
Datasheet |
KMZ | Box | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.388 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.870" (47.50mm) | - | Through Hole | |
|
400MXG470MEFCSN30X45CAP ALUM 470UF 20% 400V SNAP TH |
94 |
|
Datasheet |
MXG | Bulk | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 120 Hz | 2.898 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
35USG27000MEFCSN35X45CAP ALUM 27000UF 20% 35V SNAP TH |
94 |
|
Datasheet |
USG | Bulk | Active | 27000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.9 A @ 120 Hz | 7.935 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGZ2W121MELC25CAP ALUM 120UF 20% 450V SNAP TH |
29 |
|
Datasheet |
LGZ | Bulk | Active | 120 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.0296 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LP272M035C1P3CAP ALUM 2700UF 20% 35V SNAP TH |
66 |
|
Datasheet |
LP | Bulk | Active | 2700 µF | ±20% | 35 V | 155mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.257 A @ 120 Hz | 1.3827 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
100MXG4700MEFCSN35X40CAP ALUM 4700UF 20% 100V SNAP TH |
47 |
|
Datasheet |
MXG | Bulk | Active | 4700 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.37 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
200MXG1000MEFCSN30X30CAP ALUM 1000UF 20% 200V SNAP TH |
66 |
|
Datasheet |
MXG | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGU1K562MELBCAP ALUM 5600UF 20% 80V SNAP TH |
54 |
|
Datasheet |
LGU | Bulk | Active | 5600 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.37 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMZ451VSN391MR35SCAP ALUM 390UF 20% 450V SNAP TH |
86 |
|
Datasheet |
KMZ | Box | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.274 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LGX2W271MELA50CAP ALUM 270UF 20% 450V SNAP TH |
100 |
|
Datasheet |
LGX | Bulk | Active | 270 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 120 Hz | 1.8733 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450USG330MEFCSN25X45CAP ALUM 330UF 20% 450V SNAP TH |
95 |
|
Datasheet |
USG | Bulk | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.94 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
63MXG8200MEFCSN30X40CAP ALUM 8200UF 20% 63V SNAP TH |
81 |
|
Datasheet |
MXG | Bulk | Active | 8200 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 4.646 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
50USG18000MEFCSN35X45CAP ALUM 18000UF 20% 50V SNAP TH |
34 |
|
Datasheet |
USG | Bulk | Active | 18000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.71 A @ 120 Hz | 7.717 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

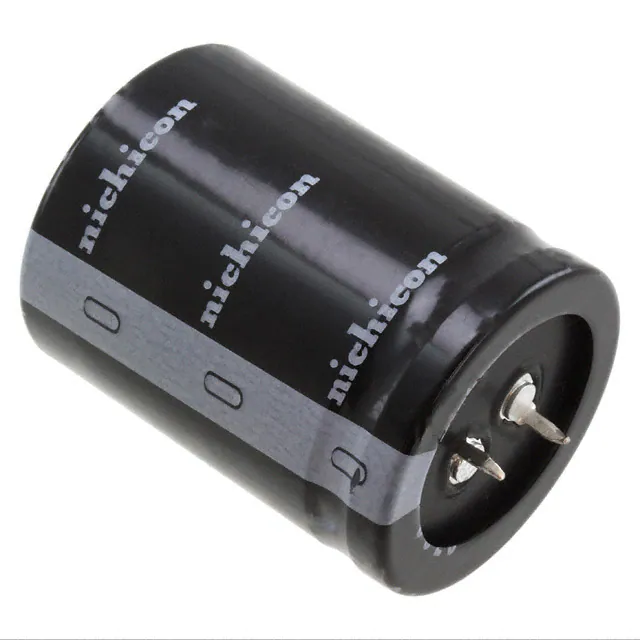

LLS2C272MELCCAP ALUM 2700UF 20% 160V SNAP TH |
92 |
|
Datasheet |
LLS | Bulk | Active | 2700 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.57 A @ 120 Hz | 8.355 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
SLP821M250E4P3CAP ALUM 820UF 20% 250V SNAP TH |
57 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 820 µF | ±20% | 250 V | 243mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
