Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860020675021CAP ALUM 330UF 20% 50V RADIAL TH |
605 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 450 mA @ 120 Hz | 621 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
6.3ZLH1800MEFC10X16CAP ALUM 1800UF 20% 6.3V RADIAL |
466 |
|
Datasheet |
ZLH | Bulk | Active | 1800 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.056 A @ 120 Hz | 1.76 A @ 100 kHz | 28 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
35TRV33M6.3X6.1CAP ALUM 33UF 20% 35V SMD |
282 |
|
Datasheet |
TRV | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 63 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ESK477M035AH2EACAP ALUM 470UF 20% 35V RADIAL TH |
189 |
|
Datasheet |
ESK | Cut Tape (CT) | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 516 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
UWT1E221MNL1GSCAP ALUM 220UF 20% 25V SMD |
94 |
|
Datasheet |
UWT | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 155 mA @ 120 Hz | 232.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UCL1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
1,000 |
|
Datasheet |
UCL | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 260 mOhms | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
860020775019CAP ALUM 220UF 20% 63V RADIAL TH |
930 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 220 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 517.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EKZM160ELL102MH20DCAP ALUM 1000UF 20% 16V RADIAL |
912 |
|
Datasheet |
KZM | Bulk | Active | 1000 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.5 A @ 100 kHz | 29 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
250LLE6.8MEFC8X11.5CAP ALUM 6.8UF 20% 250V RADIAL |
870 |
|
Datasheet |
LLE | Bulk | Active | 6.8 µF | ±20% | 250 V | - | 15000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 68 mA @ 120 Hz | 129 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
UVZ2A470MPD1TDCAP ALUM 47UF 20% 100V RADIAL TH |
573 |
|
Datasheet |
UVZ | Cut Tape (CT) | Active | 47 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 165 mA @ 120 Hz | 330 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UHD1H101MPDCAP ALUM 100UF 20% 50V RADIAL TH |
406 |
|
Datasheet |
UHD | Bulk | Not For New Designs | 100 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 506.8 mA @ 120 Hz | 724 mA @ 100 kHz | 74 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EMHL160ARA101MF61GCAP ALUM 100UF 20% 16V SMD |
819 |
|
Datasheet |
AIchip™- MHL | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | 1.2Ohm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 102.3 mA @ 120 Hz | 110 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UVY1H471MPDCAP ALUM 470UF 20% 50V RADIAL TH |
718 |
|
Datasheet |
UVY | Bulk | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 810 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
100YXF47MEFC10X16CAP ALUM 47UF 20% 100V RADIAL TH |
386 |
|
Datasheet |
YXF | Bulk | Not For New Designs | 47 µF | ±20% | 100 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 203 mA @ 120 Hz | 290 mA @ 100 kHz | 310 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|

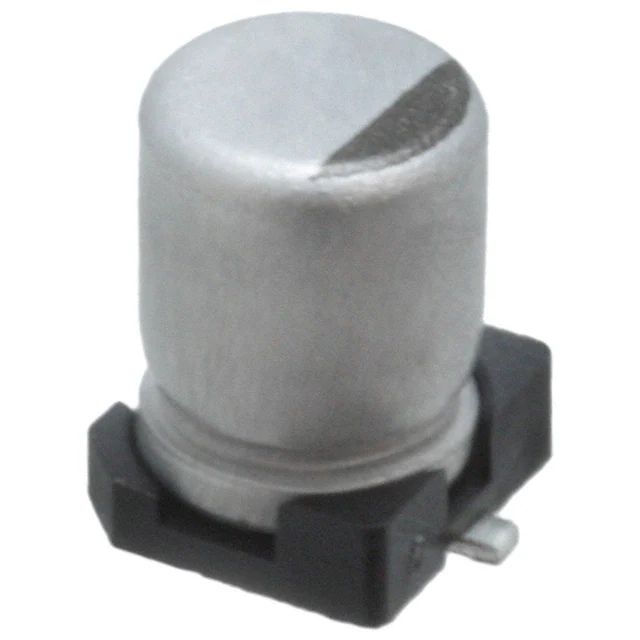

EEE-FT1H100ARCAP ALUM 10UF 20% 50V SMD |
1,888 |
|
Datasheet |
FT | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | 880mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 107.3 mA @ 120 Hz | 165 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
860020575016CAP ALUM 680UF 20% 35V RADIAL TH |
1,245 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 680 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 772.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EMHK350ARA101MF80GCAP ALUM 100UF 20% 35V SMD |
1,158 |
|
Datasheet |
Alchip™- MHK | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | 300mOhm @ 400kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 240 mA @ 400 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
860021375011CAP ALUM 10UF 20% 400V RADIAL TH |
1,017 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 10 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 104 mA @ 120 Hz | 176.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.610" (15.50mm) | - | Through Hole | |
|
UHE1H121MPDCAP ALUM 120UF 20% 50V RADIAL TH |
990 |
|
Datasheet |
UHE | Bulk | Active | 120 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 511 mA @ 120 Hz | 730 mA @ 100 kHz | 120 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.591" (15.00mm) | - | Through Hole | |
|
ECA-1EEN101CAP ALUM 100UF 20% 25V RADIAL TH |
912 |
|
Datasheet |
GA-A (Bi-polar) | Bulk | Active | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 180 mA @ 120 Hz | 306 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
