Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCW1C220MCL1GSCAP ALUM 22UF 20% 16V SMD |
325 |
|
Datasheet |
UCW | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | 2.2 Ohms | - | 0.197" Dia (5.00mm) | 0.276" (7.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UVK1E102MPDCAP ALUM 1000UF 20% 25V RADIAL |
311 |
|
Datasheet |
UVK | Bulk | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 989 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UPJ1C271MPD6TDCAP ALUM 270UF 20% 16V RADIAL TH |
130 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 270 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | - | 220 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
EEA-GA1A221HCAP ALUM 220UF 20% 10V RADIAL TH |
1,915 |
|
Datasheet |
GA-A | Cut Tape (CT) | Active | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 248 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
25TZV100M6.3X8CAP ALUM 100UF 20% 25V SMD |
966 |
|
Datasheet |
TZV | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-EB1H101SBCAP ALUM 100UF 20% 50V RADIAL TH |
947 |
|
Datasheet |
EB-A | Cut Tape (CT) | Active | 100 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 99 mA @ 120 Hz | 128.7 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|

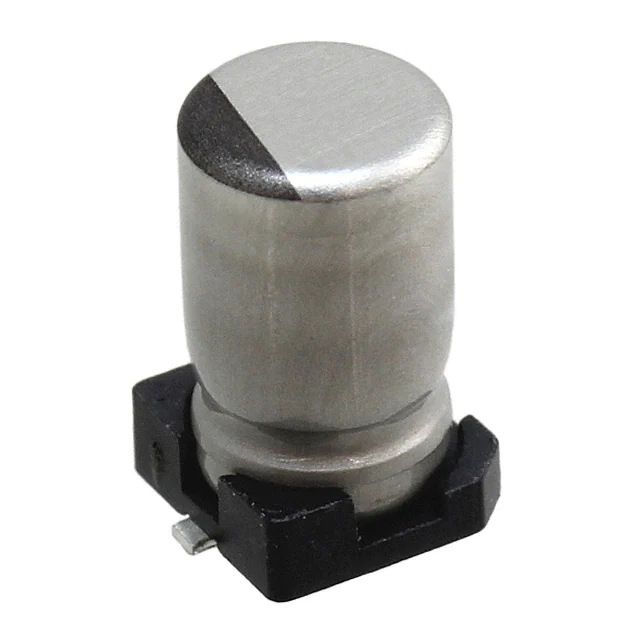

UCB1V0R1MCL1GSCAP ALUM 0.1UF 20% 35V SMD |
873 |
|
Datasheet |
UCB | Tape & Reel (TR) | Not For New Designs | 0.1 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 mA @ 120 Hz | 1.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.287" (7.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEA-GA1A221BCAP ALUM 220UF 20% 10V RADIAL TH |
657 |
|
Datasheet |
GA-A | Cut Tape (CT) | Active | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 248 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
ESMG500ELL2R2ME11DCAP ALUM 2.2UF 20% 50V RADIAL TH |
494 |
|
Datasheet |
SMG | Bulk | Active | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 70 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEU-FC1A391CAP ALUM 390UF 20% 10V RADIAL TH |
391 |
|
Datasheet |
FC | Bulk | Active | 390 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 416.25 mA @ 120 Hz | 555 mA @ 100 kHz | 117 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
UVY1A102MPDCAP ALUM 1000UF 20% 10V RADIAL |
350 |
|
Datasheet |
UVY | Bulk | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 529 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
EMZR160ARA101ME61GCAP ALUM 100UF 20% 16V SMD |
320 |
|
Datasheet |
Alchip™- MZR | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
860020775016CAP ALUM 120UF 20% 63V RADIAL TH |
287 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 120 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 255 mA @ 120 Hz | 351.9 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UUD1E220MCL1GSCAP ALUM 22UF 20% 25V SMD |
143 |
|
Datasheet |
UUD | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 75 mA @ 120 Hz | 150 mA @ 100 kHz | 760 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UUA1C220MCL1GSCAP ALUM 22UF 20% 16V SMD |
1,980 |
|
Datasheet |
UUA | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UHE1V101MPD1TDCAP ALUM 100UF 20% 35V RADIAL TH |
1,880 |
|
Datasheet |
UHE | Cut Tape (CT) | Active | 100 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 384 mA @ 120 Hz | 640 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPS2C100MPD1TDCAP ALUM 10UF 20% 160V RADIAL TH |
1,344 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 10 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 112 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UCD1V220MCL1GSCAP ALUM 22UF 20% 35V SMD |
1,017 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EEU-FC1C221CAP ALUM 220UF 20% 16V RADIAL TH |
835 |
|
Datasheet |
FC | Bulk | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360.8 mA @ 120 Hz | 555 mA @ 100 kHz | 117 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
EKY-500ELL331MJ25SCAP ALUM 330UF 20% 50V RADIAL TH |
805 |
|
Datasheet |
KY | Bulk | Active | 330 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.44 A @ 100 kHz | 55 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
