Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKMG160ETD100ME11DCAP ALUM 10UF 20% 16V RADIAL TH |
1,986 |
|
Datasheet |
KMG | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 34 mA @ 120 Hz | 61.2 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMG100ETD101ME11DCAP ALUM 100UF 20% 10V RADIAL TH |
1,979 |
|
Datasheet |
KMG | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 150 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMG500ETC100ME11DCAP ALUM 10UF 20% 50V RADIAL TH |
1,766 |
|
Datasheet |
KMG | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 72 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPM1A221MEDCAP ALUM 220UF 20% 10V RADIAL TH |
1,691 |
|
Datasheet |
UPM | Bulk | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 270 mA @ 120 Hz | 370 mA @ 10 kHz | 240 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EKMG250ETC470ME11DCAP ALUM 47UF 20% 25V RADIAL TH |
1,582 |
|
Datasheet |
KMG | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 144 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPW1A221MED1TDCAP ALUM 220UF 20% 10V RADIAL TH |
1,498 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 188.5 mA @ 120 Hz | 290 mA @ 100 kHz | 250 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPW1H470MED1TDCAP ALUM 47UF 20% 50V RADIAL TH |
1,211 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 300 mA @ 100 kHz | 430 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UWF0J470MCL1GBCAP ALUM 47UF 20% 6.3V SMD |
1,111 |
|
Datasheet |
UWF | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 40 mA @ 120 Hz | 80 mA @ 100 kHz | 2.6 Ohms | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UKW1H100MDD1TDCAP ALUM 10UF 20% 50V RADIAL TH |
14,604 |
|
Datasheet |
UKW | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 65 mA @ 120 Hz | 130 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UUR2A4R7MCL6GSCAP ALUM 4.7UF 20% 100V SMD |
13,990 |
|
Datasheet |
UUR | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 35 mA @ 120 Hz | 58.45 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.260" (6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ULD2A4R7MDD1TDCAP ALUM 4.7UF 20% 100V RADIAL |
11,883 |
|
Datasheet |
ULD | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.4 mA @ 120 Hz | 70 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPJ1C121MEDCAP ALUM 120UF 20% 16V RADIAL TH |
7,977 |
|
Datasheet |
UPJ | Bulk | Obsolete | 120 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 290 mA @ 10 kHz | 450 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.472" (12.00mm) | - | Through Hole | |
|

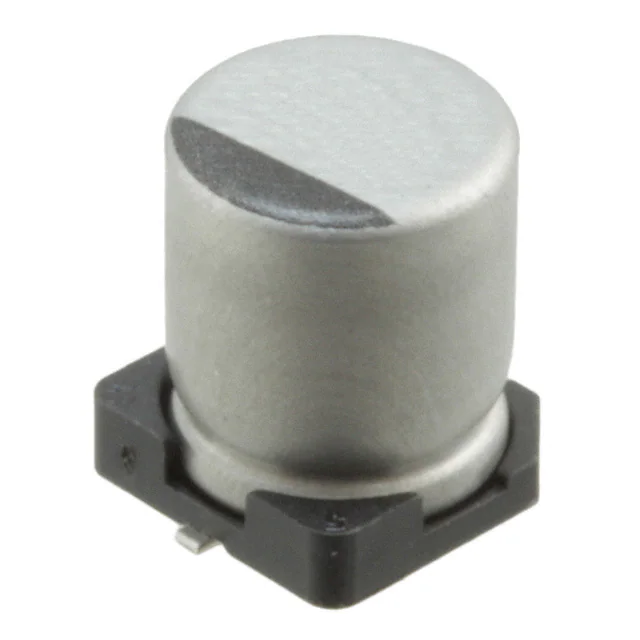

UUR1E101MCL6GSCAP ALUM 100UF 20% 25V SMD |
7,049 |
|
Datasheet |
UUR | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 143 mA @ 120 Hz | 185.9 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPS2A100MED1TDCAP ALUM 10UF 20% 100V RADIAL TH |
5,871 |
|
Datasheet |
UPS | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 22.1 mA @ 120 Hz | 130 mA @ 100 kHz | 1.8 Ohms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ULD1J100MDD1TDCAP ALUM 10UF 20% 63V RADIAL TH |
5,766 |
|
Datasheet |
ULD | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33.6 mA @ 120 Hz | 80 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UKL1H1R5MDD1TACAP ALUM 1.5UF 20% 50V RADIAL TH |
4,255 |
|
Datasheet |
UKL | Cut Tape (CT) | Obsolete | 1.5 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 32 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
EKMG101ETD4R7ME11DCAP ALUM 4.7UF 20% 100V RADIAL |
3,900 |
|
Datasheet |
KMG | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 32 mA @ 120 Hz | 80 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPW2A100MED1TDCAP ALUM 10UF 20% 100V RADIAL TH |
3,494 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 39 mA @ 120 Hz | 130 mA @ 100 kHz | 1.8 Ohms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ULD1H100MDD1TDCAP ALUM 10UF 20% 50V RADIAL TH |
3,413 |
|
Datasheet |
ULD | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 37.8 mA @ 120 Hz | 90 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
35SEV33M6.3X5.5CAP ALUM 33UF 20% 35V SMD |
3,405 |
|
Datasheet |
SEV | Tape & Reel (TR) | Last Time Buy | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 58 mA @ 120 Hz | 87 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
