Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UUT1C100MCL1GSCAP ALUM 10UF 20% 16V SMD |
1,269 |
|
Datasheet |
UUT | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 27 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
V3MB0581V470MVTMCAP ALUM 35V POLAR |
1,195 |
|
Datasheet |
V3M | Cut Tape (CT) | Active | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 720 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

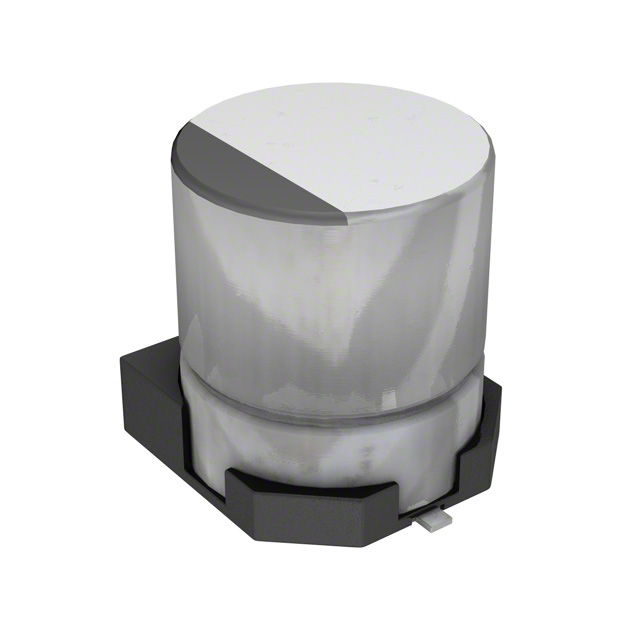

AVE107M63G24T-FCAP ALUM 100UF 20% 63V SMD |
5,000 |
|
Datasheet |
AVE | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 63 V | 1.66Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 226 mA @ 120 Hz | 339 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | |
|
UPW1J330MED1TDCAP ALUM 33UF 20% 63V RADIAL TH |
5,371 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 33 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 250 mA @ 100 kHz | 710 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UHD0J331MEDCAP ALUM 330UF 20% 6.3V RADIAL |
4,988 |
|
Datasheet |
UHD | Bulk | Obsolete | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 283.5 mA @ 120 Hz | 405 mA @ 100 kHz | 130 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPS2D2R2MED1TDCAP ALUM 2.2UF 20% 200V RADIAL |
4,617 |
|
Datasheet |
UPS | Cut Tape (CT) | Obsolete | 2.2 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 40 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPW1H470MEDCAP ALUM 47UF 20% 50V RADIAL TH |
4,300 |
|
Datasheet |
UPW | Bulk | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 300 mA @ 100 kHz | 430 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
UPW1J330MEDCAP ALUM 33UF 20% 63V RADIAL TH |
4,233 |
|
Datasheet |
UPW | Bulk | Obsolete | 33 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 250 mA @ 100 kHz | 710 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
UPM1A221MED1TDCAP ALUM 220UF 20% 10V RADIAL TH |
3,950 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 270 mA @ 120 Hz | 370 mA @ 10 kHz | 240 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
UPW1H470MED1TACAP ALUM 47UF 20% 50V RADIAL TH |
3,717 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 300 mA @ 100 kHz | 430 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPM1E820MEDCAP ALUM 82UF 20% 25V RADIAL TH |
3,660 |
|
Datasheet |
UPM | Bulk | Obsolete | 82 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 285 mA @ 10 kHz | 300 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVY1E221MED1TACAP ALUM 220UF 20% 25V RADIAL TH |
3,180 |
|
Datasheet |
UVY | Cut Tape (CT) | Obsolete | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 300 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESW108M035AL4AACAP ALUM RAD 105C |
0 |
|
Datasheet |
ESW | Bulk | Active | 1 mF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.338 A @ 120 Hz | 2.23 A @ 100 kHz | 27 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UKL1HR68MDD1TDCAP ALUM 0.68UF 20% 50V RADIAL |
2,732 |
|
Datasheet |
UKL | Cut Tape (CT) | Obsolete | 0.68 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 mA @ 120 Hz | 14.6 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVP2A010MDDCAP ALUM 1UF 20% 100V RADIAL TH |
2,525 |
|
Datasheet |
UVP | Bulk | Obsolete | 1 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 21 mA @ 120 Hz | 42 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UKT1E220MDDCAP ALUM 22UF 20% 25V RADIAL TH |
2,332 |
|
Datasheet |
UKT | Bulk | Obsolete | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 58 mA @ 120 Hz | 116 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
UPW1J220MEDCAP ALUM 22UF 20% 63V RADIAL TH |
2,263 |
|
Datasheet |
UPW | Bulk | Obsolete | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 250 mA @ 100 kHz | 710 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
UHV0J221MDDCAP ALUM 220UF 20% 6.3V RADIAL |
2,056 |
|
Datasheet |
UHV | Bulk | Obsolete | 220 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 360 mA @ 100 kHz | 230 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UMW0G470MDD1TPCAP ALUM 47UF 20% 4V RADIAL TH |
2,038 |
|
- |
UMW | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 33 mA @ 120 Hz | - | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.236" (6.00mm) | - | Through Hole | |
|

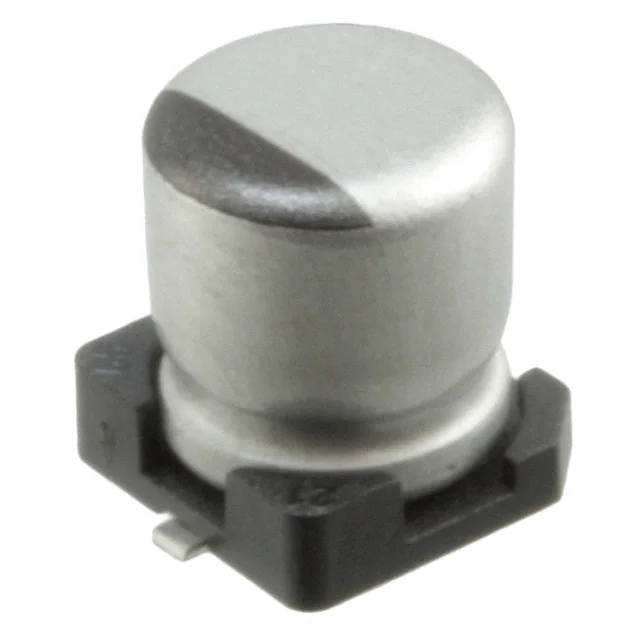

UUT1A330MCL1GSCAP ALUM 33UF 20% 10V SMD |
2,000 |
|
Datasheet |
UUT | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 52.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
