Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD050M2R2C06PE50V00ACAP ALUM 2.2UF 20% 50V SMD |
1,990 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 60 mA @ 100 kHz | 9 Ohms | - | 0.157" Dia (4.00mm) | 0.224" (5.70mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
NACE1R0M50V4X5.5TR15FCAP ALUM 50V POLAR |
57,926 |
|
Datasheet |
NACE | Tape & Reel (TR) | Active | 1 µF | ±20% | 50 V | 19.9 Ohm | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 10 mA @ 120 Hz | - | - | - | 0.157" Dia x 0.217" L (4.00mm x 5.50mm) | 0.217" (5.50mm) | 0.157" Dia x 0.217" L (4.00mm x 5.50mm) | Surface Mount | |
|
UPW1E4R7MDD1TDCAP ALUM 4.7UF 20% 25V RADIAL TH |
38,937 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 180 mA @ 100 kHz | 600 mOhms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ULD1C101MED1TDCAP ALUM 100UF 20% 16V RADIAL TH |
31,622 |
|
Datasheet |
ULD | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 147 mA @ 120 Hz | 210 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UKL1H100MDD1TDCAP ALUM 10UF 20% 50V RADIAL TH |
22,592 |
|
Datasheet |
UKL | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 140 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ULD1V470MED1TDCAP ALUM 47UF 20% 35V RADIAL TH |
17,752 |
|
Datasheet |
ULD | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 147 mA @ 120 Hz | 210 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPW1C100MDD1TDCAP ALUM 10UF 20% 16V RADIAL TH |
14,541 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 180 mA @ 100 kHz | 600 mOhms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UKL1E6R8MDD1TDCAP ALUM 6.8UF 20% 25V RADIAL TH |
13,488 |
|
Datasheet |
UKL | Cut Tape (CT) | Obsolete | 6.8 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 110 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UKL1C100MDD1TACAP ALUM 10UF 20% 16V RADIAL TH |
13,266 |
|
Datasheet |
UKL | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 110 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
UPS1J4R7MDD1TACAP ALUM 4.7UF 20% 63V RADIAL TH |
13,017 |
|
Datasheet |
UPS | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 11.56 mA @ 120 Hz | 68 mA @ 100 kHz | 4.7 Ohms | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UKL1E150MDD1TDCAP ALUM 15UF 20% 25V RADIAL TH |
11,964 |
|
Datasheet |
UKL | Cut Tape (CT) | Obsolete | 15 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 170 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVR1A221MED1TACAP ALUM 220UF 20% 10V RADIAL TH |
11,631 |
|
Datasheet |
UVR | Cut Tape (CT) | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 360 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVY1E101MDDCAP ALUM 100UF 20% 25V RADIAL TH |
9,511 |
|
Datasheet |
UVY | Bulk | Obsolete | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 187.5 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPW1A101MDDCAP ALUM 100UF 20% 10V RADIAL TH |
9,374 |
|
Datasheet |
UPW | Bulk | Obsolete | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 117 mA @ 120 Hz | 180 mA @ 100 kHz | 600 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
UKL1H2R2MDD1TDCAP ALUM 2.2UF 20% 50V RADIAL TH |
8,866 |
|
Datasheet |
UKL | Cut Tape (CT) | Obsolete | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 mA @ 120 Hz | 46 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPS1C100MDD1TACAP ALUM 10UF 20% 16V RADIAL TH |
7,636 |
|
Datasheet |
UPS | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 27.2 mA @ 120 Hz | 160 mA @ 100 kHz | 1.5 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPS1H2R2MDD1TDCAP ALUM 2.2UF 20% 50V RADIAL TH |
7,506 |
|
Datasheet |
UPS | Cut Tape (CT) | Obsolete | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 9.35 mA @ 120 Hz | 55 mA @ 100 kHz | 4.5 Ohms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPW1V220MDD1TDCAP ALUM 22UF 20% 35V RADIAL TH |
6,840 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 180 mA @ 100 kHz | 600 mOhms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|

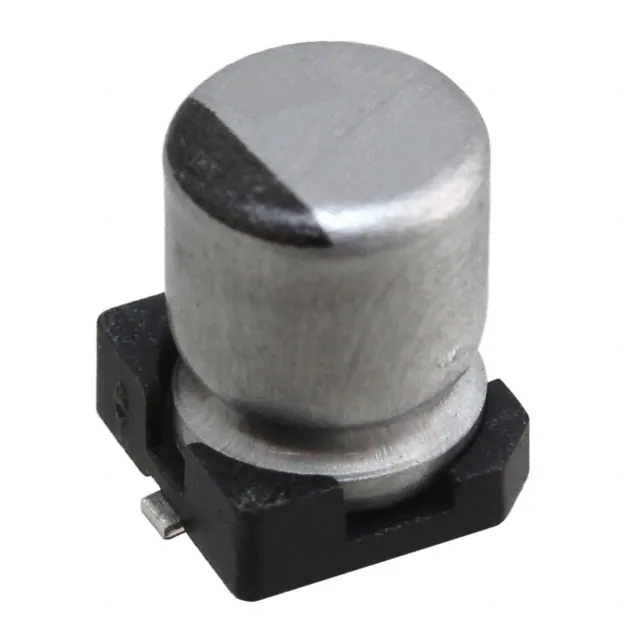

UWR1A220MCL1GBCAP ALUM 22UF 20% 10V SMD |
5,938 |
|
Datasheet |
UWR | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33 mA @ 120 Hz | 49.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UPW1V270MDDCAP ALUM 27UF 20% 35V RADIAL TH |
5,473 |
|
Datasheet |
UPW | Bulk | Obsolete | 27 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 180 mA @ 100 kHz | 600 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
