Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50ML2.2MEFC4X5CAP ALUM 2.2UF 20% 50V RADIAL TH |
1,499 |
|
Datasheet |
ML | Bulk | Obsolete | 2.2 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 mA @ 120 Hz | 16.5 mA @ 10 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.256" (6.50mm) | - | Through Hole | |
|
UPW1V220MDDCAP ALUM 22UF 20% 35V RADIAL TH |
1,332 |
|
Datasheet |
UPW | Bulk | Obsolete | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 180 mA @ 100 kHz | 600 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
UVZ1H2R2MDD1TDCAP ALUM 2.2UF 20% 50V RADIAL TH |
1,329 |
|
Datasheet |
UVZ | Cut Tape (CT) | Obsolete | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 40 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
50YXF47MEFCTA6.3X11CAP ALUM 47UF 20% 50V RADIAL TH |
1,307 |
|
Datasheet |
YXF | Cut Tape (CT) | Last Time Buy | 47 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 250 mA @ 100 kHz | 400 mOhms | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEV-TG1V330PCAP ALUM 33UF 20% 35V SMD |
1,191 |
|
Datasheet |
TG | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 35 V | 1Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

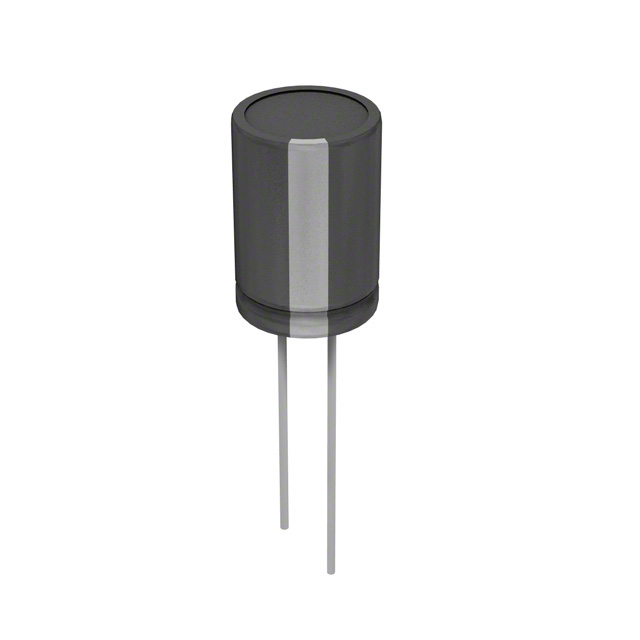

SN4R7M100STCAP ALUM 4.7UF 20% 100V RADIAL |
0 |
|
Datasheet |
SN | Bulk | Obsolete | 4.7 µF | ±20% | 100 V | 28.23Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 58 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
NACE2R2M50V4X5.5TR15FCAP ALUM 2.2UF 20% 50V SMD |
75,748 |
|
Datasheet |
NACE | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50 V | 75.4Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 mA @ 120 Hz | 27 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UPS1E100MDD1TDCAP ALUM 10UF 20% 25V RADIAL TH |
19,301 |
|
Datasheet |
UPS | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 27.2 mA @ 120 Hz | 160 mA @ 100 kHz | 1.5 Ohms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
NACE100M16V4X5.5TR15FCAP ALUM 16V POLAR |
18,785 |
|
Datasheet |
NACE | Tape & Reel (TR) | Active | 10 µF | ±20% | 16 V | 26.54Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 25 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UVZ1H330MDD1TACAP ALUM 33UF 20% 50V RADIAL TH |
15,583 |
|
Datasheet |
UVZ | Cut Tape (CT) | Obsolete | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 180 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ1H4R7MDD1TDCAP ALUM 4.7UF 20% 50V RADIAL TH |
15,374 |
|
Datasheet |
UVZ | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 60 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVY1V470MDD1TDCAP ALUM 47UF 20% 35V RADIAL TH |
12,617 |
|
Datasheet |
UVY | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 93 mA @ 120 Hz | 186 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY1J220MDD1TDCAP ALUM 22UF 20% 63V RADIAL TH |
6,658 |
|
Datasheet |
UVY | Cut Tape (CT) | Obsolete | 22 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 71 mA @ 120 Hz | 142 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY1H2R2MDD1TDCAP ALUM 2.2UF 20% 50V RADIAL TH |
5,980 |
|
Datasheet |
UVY | Cut Tape (CT) | Obsolete | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 40 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UHE1A101MDD1TDCAP ALUM 100UF 20% 10V RADIAL TH |
5,381 |
|
Datasheet |
UHE | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 147 mA @ 120 Hz | 210 mA @ 100 kHz | 580 mOhms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ1H220MDD1TACAP ALUM 22UF 20% 50V RADIAL TH |
5,151 |
|
Datasheet |
UVZ | Cut Tape (CT) | Obsolete | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 68 mA @ 120 Hz | 136 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ1E470MDD1TDCAP ALUM 47UF 20% 25V RADIAL TH |
5,122 |
|
Datasheet |
UVZ | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 83 mA @ 120 Hz | 166 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ1C220MDD1TDCAP ALUM 22UF 20% 16V RADIAL TH |
5,089 |
|
Datasheet |
UVZ | Cut Tape (CT) | Obsolete | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 108 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVK2D0R1MED1TDCAP ALUM 0.1UF 20% 200V RADIAL |
0 |
|
Datasheet |
UVK | Cut Tape (CT) | Obsolete | 0.1 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 mA @ 120 Hz | 3.36 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ2A4R7MDD1TACAP ALUM 4.7UF 20% 100V RADIAL |
3,925 |
|
Datasheet |
UVZ | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 32 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole |
