Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41821F4477M000CAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
B41821 | Bulk | Obsolete | 470 µF | ±20% | 16 V | 710mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41821F8107M000CAP ALUM 100UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41821 | Bulk | Obsolete | 100 µF | ±20% | 63 V | 2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41821F9336M000CAP ALUM 33UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
B41821 | Bulk | Obsolete | 33 µF | ±20% | 100 V | 5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
B41851B5227M000CAP ALUM 220UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
B41851 | Bulk | Obsolete | 220 µF | ±20% | 25 V | 1.2Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41851F8107M000CAP ALUM 100UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41851 | Bulk | Obsolete | 100 µF | ±20% | 63 V | 2Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B43851G2106M000CAP ALUM 10UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
B43851 | Bulk | Obsolete | 10 µF | ±20% | 200 V | 21Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41851K4477M000CAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
B41851 | Bulk | Obsolete | 470 µF | ±20% | 16 V | 710mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 315 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B43851F4475M000CAP ALUM 4.7UF 20% 350V RADIAL |
0 |
|
Datasheet |
B43851 | Bulk | Obsolete | 4.7 µF | ±20% | 350 V | 45Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B43851F9335M000CAP ALUM 3.3UF 20% 400V RADIAL |
0 |
|
Datasheet |
B43851 | Bulk | Obsolete | 3.3 µF | ±20% | 400 V | 65Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 36 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B43851H9225M000CAP ALUM 2.2UF 20% 400V RADIAL |
0 |
|
Datasheet |
B43851 | Bulk | Obsolete | 2.2 µF | ±20% | 400 V | 97Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B43851F9475M000CAP ALUM 4.7UF 20% 400V RADIAL |
0 |
|
Datasheet |
B43851 | Bulk | Active | 4.7 µF | ±20% | 400 V | 46Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
B41888C8476M000CAP ALUM 47UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41888 | Bulk | Obsolete | 47 µF | ±20% | 63 V | 541mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 283 mA @ 100 kHz | 488 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B43851F5106M000CAP ALUM 10UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
B43851 | Bulk | Active | 10 µF | ±20% | 450 V | 26Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

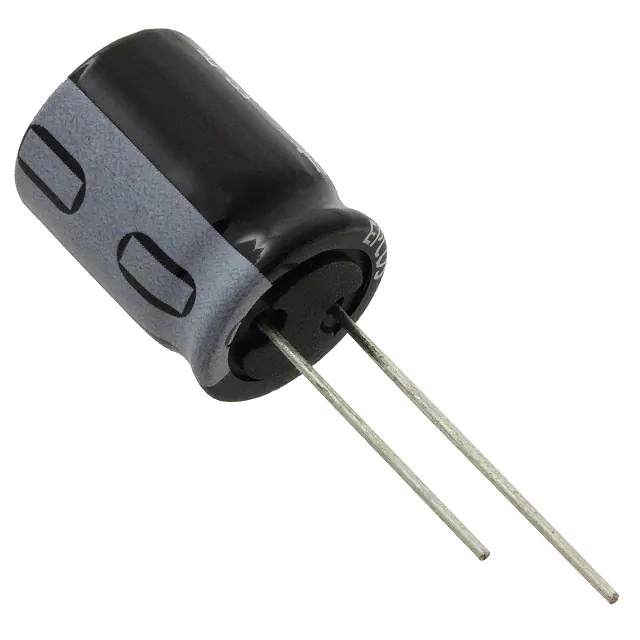

B41821F8477M000CAP ALUM 470UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41821 | Bulk | Active | 470 µF | ±20% | 63 V | 420mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
B41821K4228M000CAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Datasheet |
B41821 | Bulk | Active | 2200 µF | ±20% | 16 V | 170mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
B43851F1107M000CAP ALUM 100UF 20% 160V RADIAL |
0 |
|
Datasheet |
B43851 | Bulk | Active | 100 µF | ±20% | 160 V | 2.3Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
B43851G2476M000CAP ALUM 47UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
B43851 | Bulk | Active | 47 µF | ±20% | 250 V | 4.3Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 203 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
B41851F5158M000CAP ALUM 1500UF 20% 25V RADIAL |
0 |
|
Datasheet |
B41851 | Bulk | Active | 1500 µF | ±20% | 25 V | 180mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
B43851F4226M000CAP ALUM 22UF 20% 350V RADIAL TH |
0 |
|
Datasheet |
B43851 | Bulk | Active | 22 µF | ±20% | 350 V | 9Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
B41821F6108M000CAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
B41821 | Bulk | Active | 1000 µF | ±20% | 50 V | 200mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole |
