Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41866D8687M000CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41866 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 67mOhm @ 100kHz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.699 A @ 100 kHz | 67 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43640A5687M000CAP ALUM 680UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Obsolete | 680 µF | ±20% | 450 V | 150mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.44 A @ 100 Hz | - | 240 mOhms | 0.394" (10.00mm) | - | - | - | Through Hole | |
|
|
B43640C5277M000CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Obsolete | 270 µF | ±20% | 450 V | 390mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 100 Hz | - | 590 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43644B5337M080CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Obsolete | 330 µF | ±20% | 450 V | 310mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 100 Hz | - | 480 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

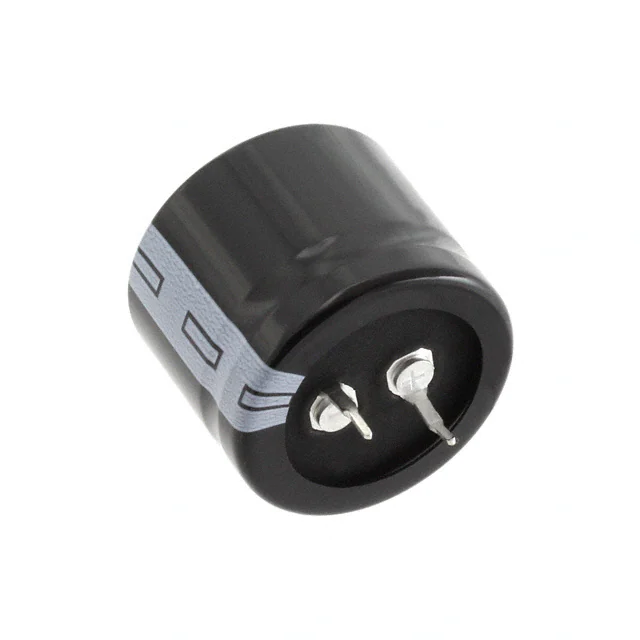

B43644C9337M000CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Obsolete | 330 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.378" W (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UBT1K471MNDDCTCCCAP ALUM 470UF 20% 80V RADIAL TH |
0 |
|
Datasheet |
UBT | Bulk | Obsolete | 470 µF | ±20% | 80 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 750 mA @ 120 Hz | 1.5 A @ 100 kHz | 110 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.004" (25.50mm) | - | Through Hole | |
|
50TZV1500MTPAVB18X21.5CAP ALUM 1500UF 20% 50V SMD |
0 |
|
Datasheet |
TZV | Tape & Reel (TR) | Discontinued at Digi-Key | 1500 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | - | - | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Surface Mount | |
|
450CXW12MEFR8X30CAP ALUM 12UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
CXW | Bulk | Obsolete | 12 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 210 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
580LSU1500MNB64X119CAP ALUM 1500UF 20% 580V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 1500 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 7.28 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
580LSU1800MNB64X139CAP ALUM 1800UF 20% 580V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 1800 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 120 Hz | 8.19 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 5.591" (142.00mm) | - | Chassis Mount | |
|
|
580LSU2200MNB64X149CAP ALUM 2200UF 20% 580V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 2200 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | 9.23 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 5.984" (152.00mm) | - | Chassis Mount | |
|
580LSU2700MNB77X131CAP ALUM 2700UF 20% 580V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 2700 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 120 Hz | 11.44 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 5.276" (134.00mm) | - | Chassis Mount | |
|
580LSU4700MNB77X191CAP ALUM 4700UF 20% 580V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 4700 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 120 Hz | 15.86 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 7.638" (194.00mm) | - | Chassis Mount | |
|
580LSU5600MNB90X191CAP ALUM 5600UF 20% 580V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 5600 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 120 Hz | 21.19 A @ 10 kHz | - | 1.236" (31.40mm) | 3.543" Dia (90.00mm) | 7.638" (194.00mm) | - | Chassis Mount | |
|
580LSU6800MNB90X221CAP ALUM 6800UF 20% 580V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 6800 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18.4 A @ 120 Hz | 23.92 A @ 10 kHz | - | 1.236" (31.40mm) | 3.543" Dia (90.00mm) | 8.819" (224.00mm) | - | Chassis Mount | |
|
|
580LSU8200MNB90X241CAP ALUM 8200UF 20% 580V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 8200 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.4 A @ 120 Hz | 26.52 A @ 10 kHz | - | 1.236" (31.40mm) | 3.543" Dia (90.00mm) | 9.606" (244.00mm) | - | Chassis Mount | |
|
104SMH050MCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
SMH | Bulk | Active | 0.1 µF | ±20% | 50 V | 1.99kOhm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 2.3 mA @ 120 Hz | 3.45 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.220" (5.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
104SML050MD4CAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
SML | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 50 V | 1.99kOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Bypass, Decoupling | 3.2 mA @ 120 Hz | 4.8 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.220" (5.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
105CKS450MEBBCAP ALUM 1UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
CKS | Bulk | Active | 1 µF | ±20% | 450 V | 397.887Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Bypass, Decoupling | 20 mA @ 120 Hz | 50 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
106CKS500MTJGCAP ALUM 10UF 20% 500V RADIAL TH |
0 |
|
Datasheet |
CKS | Bulk | Active | 10 µF | ±20% | 500 V | 39.7887Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Bypass, Decoupling | 105 mA @ 120 Hz | 189 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
