Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400LSU4700MEFC77X121CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 4700 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 22.12 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
80LSQ100000MEFC77X141CAP ALUM 100000UF 20% 80V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 100000 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.5 A @ 120 Hz | 23.65 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|

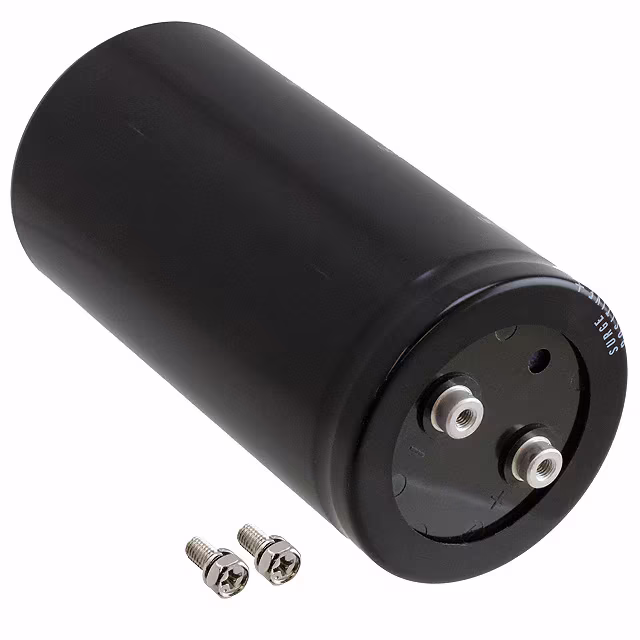

63LSQ150000MEFC90X141CAP ALUM 150000UF 20% 63V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 150000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26 A @ 120 Hz | 28.6 A @ 10 kHz | - | 1.236" (31.40mm) | 3.543" Dia (90.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
400LSQ10000MEFC90X151CAP ALUM 10000UF 20% 400V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 10000 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.5 A @ 120 Hz | 24.19 A @ 10 kHz | - | 1.236" (31.40mm) | 3.543" Dia (90.00mm) | 6.063" (154.00mm) | - | Chassis Mount | |
|
160BXF47MT810X16CAP ALUM 47UF 20% 160V RADIAL TH |
0 |
|
Datasheet |
BXF | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
|
200BXF47MT810X20CAP ALUM 47UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
BXF | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 800 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
200BXF180MGC18X20CAP ALUM 180UF 20% 200V RADIAL |
0 |
|
Datasheet |
BXF | Tape & Box (TB) | Obsolete | 180 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.013 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
250BXF100MGC16X20CAP ALUM 100UF 20% 250V RADIAL |
0 |
|
Datasheet |
BXF | Tape & Box (TB) | Obsolete | 100 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 1.8 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
400BXF47MGC16X20CAP ALUM 47UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
BXF | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
450BXF15MT810X20CAP ALUM 15UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
BXF | Tape & Box (TB) | Obsolete | 15 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 400 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
450BXF33MGC16X20CAP ALUM 33UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
BXF | Tape & Box (TB) | Obsolete | 33 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 388 mA @ 120 Hz | 970 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
450BXF47MGC18X20CAP ALUM 47UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
BXF | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 468 mA @ 120 Hz | 1.17 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
6.3MH5100MEFCTZ6.3X5CAP ALUM 100UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
MH5 | Tape & Box (TB) | Obsolete | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | - | Through Hole | |
|
|
6.3MH5100MEFCT56.3X5CAP ALUM 100UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
MH5 | Tape & Box (TB) | Obsolete | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 68.4 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | - | Through Hole | |
|
|
10MH547MEFCTZ6.3X5CAP ALUM 47UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
MH5 | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 52 mA @ 120 Hz | 78 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | - | Through Hole | |
|
|
10MH547MEFCT56.3X5CAP ALUM 47UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
MH5 | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 52 mA @ 120 Hz | 78 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | - | Through Hole | |
|
|
10MH5100MEFCT56.3X5CAP ALUM 100UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
MH5 | Tape & Box (TB) | Obsolete | 100 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 62 mA @ 120 Hz | 74.4 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | - | Through Hole | |
|
16MH510MEFCTZ4X5CAP ALUM 10UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
MH5 | Tape & Box (TB) | Obsolete | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 30 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.157" Dia (4.00mm) | 0.256" (6.50mm) | - | Through Hole | |
|
|
16MH547MEFCTZ6.3X5CAP ALUM 47UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
MH5 | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 84 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | - | Through Hole | |
|
|
16MH547MEFCT56.3X5CAP ALUM 47UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
MH5 | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 84 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | - | Through Hole |
